7-inch Portable USB UVC Monitor with Built-in DVR & Battery (SDVR-1001)

7-inch USB industrial endoscope monitor with DVR and a built-in battery transforms a basic inspection tool into a powerful diagnostic, documentation, and communication solution. It addresses critical needs for verifiable evidence, improved efficiency, enhanced safety, and superior client engagement across industrial and commercial applications

Why it’s built for field technicians

• All-in-one: view, record, replay, share—no laptop needed
• Portable: battery operation for remote yards and tight cabinets
• Evidence-grade: on-screen time-stamp and loop recording (add) for audits/claims

Key Features and What They Address

• 7-inch Monitor: Provides a clear, relatively large display for viewing endoscope footage.
  • Solves: The need for external screens (laptops, TVs) in the field, which can be cumbersome or unavailable; difficulty seeing fine details on smaller, integrated endoscope screens.
  • Meets Demand: Comfortable and detailed real-time viewing for operators, improving accuracy and reducing eye strain during extended inspections.
  •
• Built-in DVR (Digital Video Recorder): Allows for the recording of video and still images from the endoscope.
  • Solves: The inability to capture visual evidence of inspections, faults, or successful repairs; reliance on manual notes or memory for post-inspection analysis; difficulty in sharing findings with colleagues or clients.
  • Meets Demand: Crucial for documentation, quality control, training, and remote consultation, providing verifiable visual records.
  •

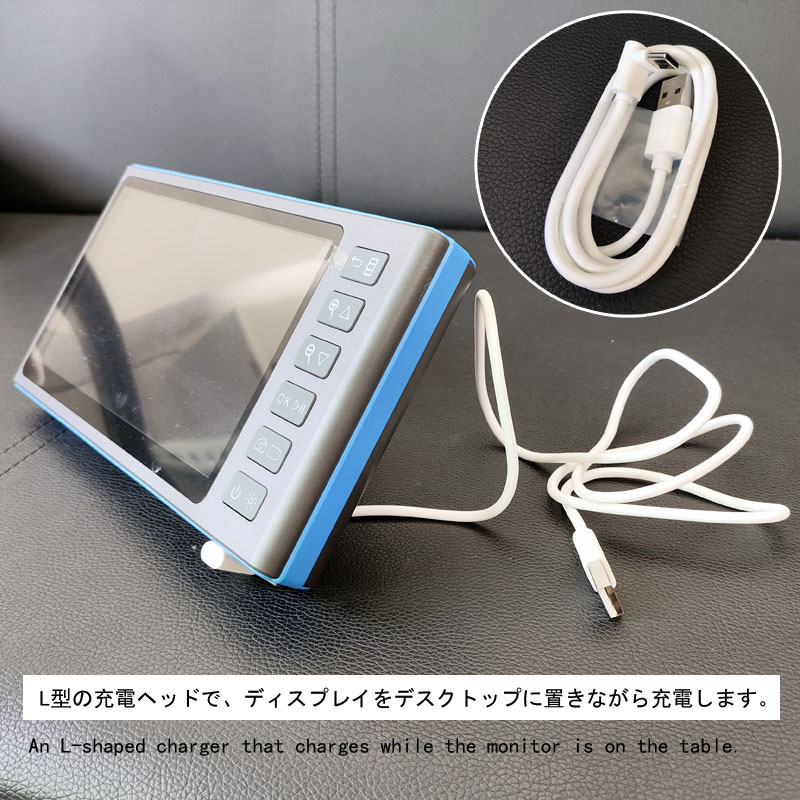

• Built-in 3000mAh Battery: Provides portable power for the monitor and connected endoscope.
  • Solves: Dependence on AC power outlets, limiting field use; interruption of inspections due to power loss; the need for bulky external power banks.
  • Meets Demand: True portability and untethered operation in remote, hazardous, or inconvenient locations where power isn't readily available, ensuring uninterrupted workflow.
  •
• USB Connectivity (for Endoscope): Standard and widely compatible interface for connecting various USB endoscopes.
  • Solves: Proprietary endoscope connections, limiting flexibility; the need for multiple monitors for different endoscope types.
  • Meets Demand: Versatility, allowing a single monitor to be used with a range of USB-compatible industrial endoscopes, simplifying equipment management.
  •
• Industrial Design (Implied by context): Suggests ruggedness suitable for professional use, though specific IP ratings or drop-test certifications would need to be confirmed.
  • Solves: Fragility of consumer-grade screens in harsh environments; damage from drops, dust, or splashes.
  • Meets Demand: Reliability and longevity in demanding work conditions.

UVC Compatibility Matrix

screenshot compressed picture when our 2MP usb camera connect and work with this 7inch USB DVR

( the following image had been compressed much because of website design request)

what difficulty or troubling problems it can solve in industrial application?

This DVR-equipped monitor significantly enhances industrial inspection, maintenance, and quality control processes.

Problems Solved:

1. Documentation of Defects and Compliance:
   • Problem: After inspecting complex machinery (e.g., engines, turbines, pipes, HVAC ducts), it's hard to accurately convey the extent of a defect (cracks, corrosion, blockages) or prove that an inspection was performed correctly for regulatory compliance or warranty claims.
   • Solution: The built-in DVR allows capturing high-quality video or images of specific issues. This provides undeniable visual evidence for maintenance reports, quality audits, insurance claims, or proving adherence to safety standards, eliminating ambiguity.
   •
2. Predictive Maintenance and Trend Analysis:
   • Problem: Over time, subtle changes in internal components (e.g., rust progression, wear on gears, residue buildup) might indicate future failure. Without recorded history, these trends are difficult to track.
   • Solution: Recorded footage creates a historical log of inspections. Technicians can compare current footage with past recordings to identify subtle degradation, enabling proactive maintenance before critical failures occur, saving costly downtime.
   •
3. Remote Consultations and Expert Collaboration:
   • Problem: On-site technicians may encounter complex issues requiring expert opinion from off-site engineers or specialists. Describing what they see verbally or with poor-quality photos is inefficient.
   • Solution: Recorded video can be easily shared with remote experts, providing them with a clear, detailed view of the problem. This facilitates faster, more accurate remote diagnosis and problem-solving, reducing travel costs and decision-making time.
   •
4. Training and Onboarding of New Technicians:
   • Problem: Training new maintenance personnel on recognizing specific internal component conditions or common failure modes can be challenging without real-world examples.
   • Solution: Recorded footage of various defects, healthy components, and inspection procedures can serve as invaluable training material, allowing new technicians to learn from actual scenarios without risking live equipment.
   •
5. Inspection in Remote or Power-Limited Environments:
   • Problem: Conducting inspections in confined spaces, dark machinery interiors, or outdoor industrial sites where power outlets are unavailable or unsafe.
   • Solution: The built-in battery allows the monitor and endoscope to operate independently, providing full functionality in any location without power constraints, ensuring continuous work in critical areas.

Special Demands Met:

• Verifiable Evidence: Provides tangible proof of inspection findings.
• Improved Efficiency: Reduces time spent on descriptive reporting and improves decision-making.
• Enhanced Safety: Allows detailed inspection without needing to disassemble machinery, reducing risks.
• Portability for Field Use: Enables inspections anywhere, anytime.
• Flexible Endoscope Compatibility: Supports a range of USB industrial endoscopes, offering adaptability.
