Product Overview

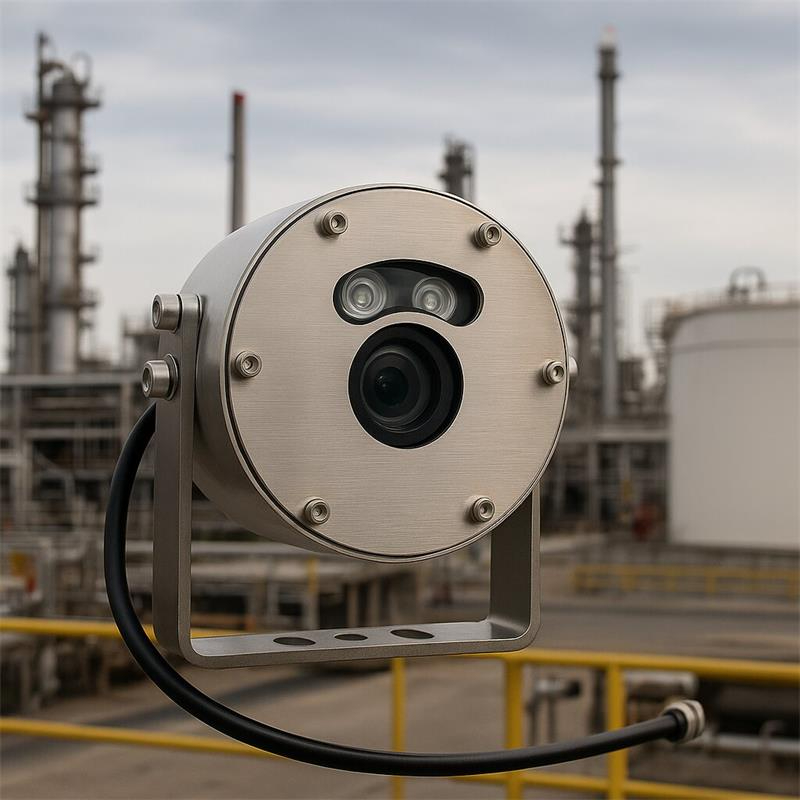

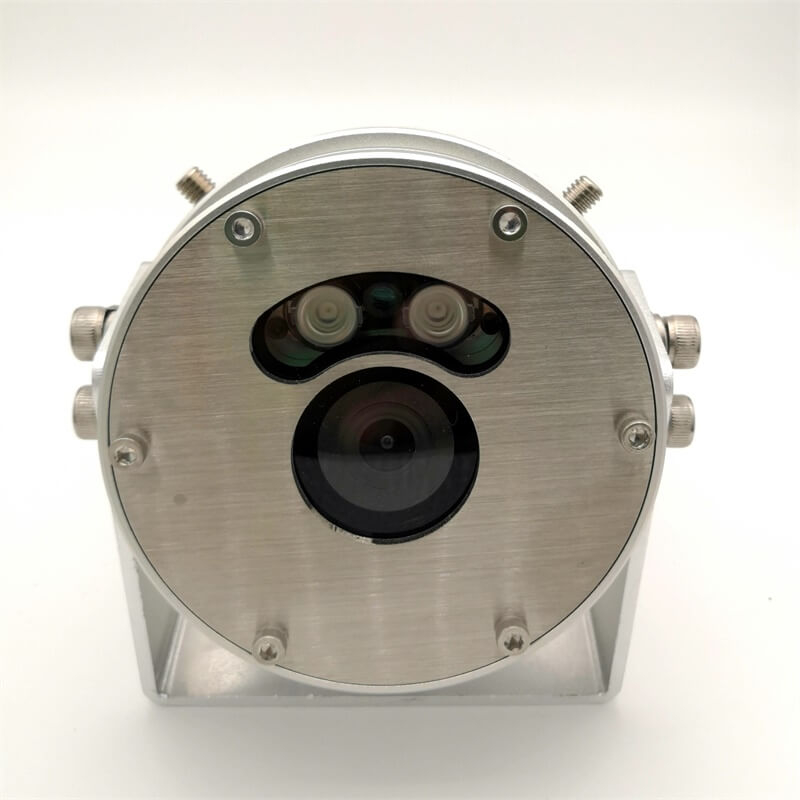

This 316L stainless steel explosion proof camera is engineered for hazardous area CCTV where safety, durability, and compliance are mandatory. Delivering 1080p analog HD (AHD) video, the unit is ideal as a hazardous area analog HD camera 1080p solution for both new projects and retrofit systems.

Built in marine-grade 316L with IP69K hazardous location camera sealing, it withstands salt-fog, wash-down, and corrosive chemical exposure. Certified options include ATEX certified camera, IECEx Zone 1 camera, and CNEx explosion proof camera oil & gas, making it suitable for global deployments.

This 2MP AHD camera is designed for explosive and corrosive environments. Featuring a 316L stainless steel housing, IP68 waterproof rating, and real-time 1080P video, it's the ideal choice for oil & gas, chemical plants, dust-prone factories, and marine equipment.



Recommended Applications

• Oilfield drilling stations
• Petrochemical storage tanks
• Lithium battery production lines
• Flammable gas zones in chemical plants
• Flour mills and dusty processing zones
• Marine or salt-prone processing environments
• Steam rooms, boiler facilities, high-EMI areas

 Ideal for oil & gas, chemical, battery, and dust-sensitive industries,Rugged 2MP AHD camera with stainless steel housing, anti-corrosion and explosion-proof.



Key Features

• ATEX stainless steel explosion-proof AHD camera 2MP (optional ATEX/IECEx/CNEx variants)
• 1080p AHD output — reliable analog ex-proof camera for DVR integration
• Material: 316L stainless steel explosion proof camera body, tempered/AR-coated glass window
• Ingress protection: IP69K/IP68 — withstands high-pressure wash-down, dust, and immersion
• Night vision: IR LEDs up to 20–30 m, automatic IR-cut filter
• Operating range: –40 °C ~ +70 °C (with stable performance 0 °C ~ +50 °C)
• Certifications: CE / FCC / RoHS, with optional ATEX/IECEx and CNEx packages



what difficulty or troubling problems it can solve in industrial application?

Problems Solved:

1. Safety & Process Monitoring in Hazardous Production Areas:
   • Problem: Monitoring critical industrial processes, machinery, or personnel in areas with explosive atmospheres (e.g., chemical reactions, gas lines, dust-prone areas in grain silos or woodworking plants) where a conventional camera could trigger an explosion.
   • Solution: Provides safe, continuous visual oversight, enabling early detection of leaks, abnormal operations, or safety breaches without risking ignition. The 2MP AHD provides clear detail for analysis.
   •
2. Corrosive Environment Surveillance:
   • Problem: Rapid degradation of surveillance equipment due to exposure to highly corrosive substances (acids, alkalis, saltwater spray) in chemical plants, wastewater treatment facilities, pulp and paper mills, or marine industrial sites.
   • Solution: 316L stainless steel provides superior corrosion resistance, ensuring long-term operational reliability and reducing replacement costs.
   •
3. Hygienic and Washdown Environments:
   • Problem: Cameras failing due to ingress of water, steam, or cleaning chemicals during regular high-pressure, high-temperature washdowns, leading to downtime and potential contamination risks.
   • Solution: IP69K rating guarantees the camera's integrity against rigorous cleaning procedures, making it ideal for food, beverage, and pharmaceutical manufacturing facilities where strict hygiene is paramount.
   •
4. Remote Monitoring & Incident Response:
   • Problem: Needing clear, real-time visual information from dangerous or remote industrial zones to allow rapid assessment and response to incidents (e.g., spills, equipment malfunctions, unauthorized entry).
   • Solution: The robust construction and AHD's low-latency transmission ensure reliable video feed for operators in control rooms, facilitating quick decision-making and safer interventions.



Special Demands Met:

• Regulatory Compliance: Meets stringent safety standards (e.g., ATEX, IECEx, UL) required for operating in classified hazardous locations, essential for legal operation and insurance.
• Asset Protection: Safeguarding valuable machinery and infrastructure in harsh conditions where other cameras would fail.
• Worker Safety: Provides a "set of eyes" in dangerous areas, reducing the need for human presence in high-risk zones and enhancing overall site safety protocols.
• Predictive Maintenance: Allows for continuous visual monitoring of equipment, helping to detect early signs of wear, leaks, or anomalies, leading to proactive maintenance and reduced unscheduled downtime.
• Durability and Longevity: Designed for extreme conditions, leading to a much longer operational lifespan and lower total cost of ownership compared to standard cameras.



Key Features & Benefits

• Explosion-Proof Stainless Steel Housing
  Built with 316L stainless steel to withstand corrosion, impact, and high-pressure environments. Suitable for ATEX/IECEx optional upgrade.
• 1080P AHD Video Output (2MP)
  Supports real-time transmission with low-latency analog signal; no network required.
• IP68 Protection
  Fully sealed to resist water, dust, steam, oil mist, and chemical vapors.
• Wide Temperature Tolerance
  Designed for harsh environments ranging from -40°C to +70°C.
• Flexible Installation
  Compatible with ceiling, wall, pole, or equipment mounting. Optional brackets available.
• Custom Lens Options
  Field of view adjustable: 2.8mm / 4mm / 6mm / 8mm / 12mm (M12 or CS mount).
• Stable & EMI-Resistant
  AHD analog signal ensures immunity from electromagnetic interference, ideal for power-intensive zones.
• Certified Explosion-Proof Protection: Designed and rigorously tested for safe operation in hazardous environments (Zone 1, Zone 2, Zone 21, Zone 22 - specify ATEX/IECEx certifications), preventing ignition of flammable gases or dust.
• Ultimate Corrosion Resistance (316L Stainless Steel): Built with premium 316L marine-grade stainless steel, offering unparalleled protection against corrosion, saltwater, chemicals, and extreme temperatures



Product Specification

Item  Name	Technical specification
Product Name	Multifunctional FULL HD Fireproof Explosion-proof AHD camera  model number: AC-607
Imaging CMOS	½.7" color CMOS
chipset	F22+V30E(FH8532E)
Pixel	2MP
Video resolution	1920H*1080V, 1080P@25fps
signal system	50HZ
Minimum illumination	0Lux (night vision fill light) F 2.2
Shutter speed	1/50 sec-1/100000 sec
Day and night conversion mode	Switch IR-Cut day and night
Wide dynamic	Digital wide dynamic
BLC	automatic
Infrared distance IR	20 meters
Pickup audio	no
Switch IR-Cut day and night	Support
Signal output	AHD
Lens feature	Standard3.6mm 2MP 1080P
temperature humidity	-20℃~+70℃ 0%-95%
power supply	12V (wide voltage 9v-15v)
waterproof level	IP68
Power (12v)	<4w (infrared start)
Net weight	Less than 2.0kgs
product material	100% full Aluminum alloy, #304 stain steeless
Video output interface	1.0Vp-p composite video output, 75 ohm, 4pin aviation cable
Product Size	107*98*85mm

Applications

Oil & Gas / Petrochemical

The CNEx explosion proof camera oil & gas version is deployed on wellheads, FPSOs, and refineries, ensuring compliance and reliable monitoring under high-risk conditions.

Chemical & Dust Plants

As a hazardous area CCTV camera, this solution supports 24/7 monitoring in grain mills, flour plants, and lithium facilities, reducing ignition risks while maintaining visibility.

Marine & Offshore

The 316L explosion proof camera marine salt fog design resists corrosion from seawater and heavy wash-down, making it ideal for ports, desalination plants, and offshore platforms.

Industrial Wash-Down / Food & Pharma

The IP69K hazardous location camera survives high-pressure, high-temperature cleaning, critical in hygiene-sensitive production areas.

FAQ

Q1: Is this camera compliant with explosion-proof certifications?
Yes, optional models meet ATEX/IECEx standards. Inquire for documentation.

Q2: Can I connect this to a standard analog DVR?
Yes, any AHD-compatible DVR can receive the video feed directly.

Q3: Is it resistant to chemicals and salt spray?
Yes, made of 316L stainless steel, ideal for marine and chemical industries.

Q4: Can I use it in IECEx Zone 1?
Yes, the IECEx Zone 1 camera version is tested for Zone 1/21 environments

Q5: Can I integrate it into analog systems?
Absolutely. It is a hazardous area analog HD camera 1080p with AHD 1080p output, making it a robust analog ex-proof camera for DVR-based monitoring.



Q6: Is it suitable for marine deployment?
Yes, this is a 316L explosion proof camera marine salt fog solution with proven corrosion resistance.



Target Customers

• Plant Managers & Operations Directors: Responsible for safety, efficiency, and security in hazardous or corrosive industrial environments.
• Health & Safety Officers: Seeking certified equipment to improve workplace safety and meet regulatory requirements.
• Security & Surveillance System Integrators (UK-based): Designing and deploying robust CCTV solutions for challenging industrial sectors.
• EPC Contractors (Engineering, Procurement, Construction): Specifying high-performance, compliant equipment for new industrial builds or upgrades.
• Oil & Gas / Chemical Industry Leaders: Requiring durable, certified surveillance technology for critical infrastructure.
• Food Processing & Pharmaceutical Manufacturers: Needing cameras that withstand strict hygiene protocols and harsh cleaning regimes.
