5 mm F0.9 M16 Low-Light Lens — 1/1.8″, 5 MP, Starlight-Grade Imaging

Novel manufacture limited provide following EFL M16 Mount lens normally

4mm m16 lens, 5mm m16 lens, 6.35mm m16 camera lens, 8mm m16 cctv lens

2.8mm m16 lens, 5.17mm m16 lens, 4.22mm m16 lens,  8.42mm m16 cctv camera lens

Product Overview

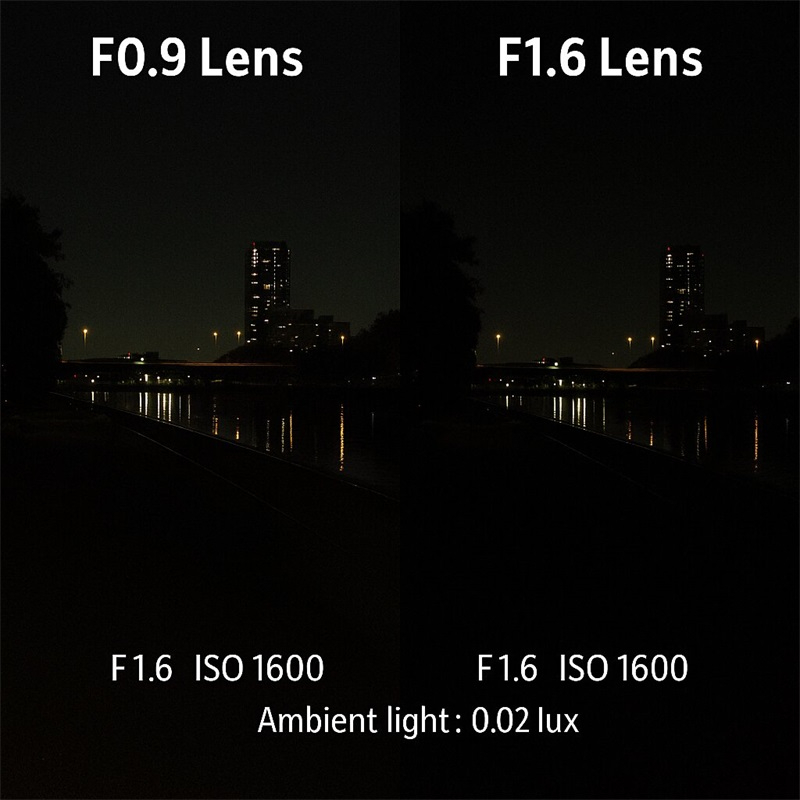

The 5 mm F0.9 M16 camera lens is purpose-built for low-light imaging on 1/1.8″ sensors, offering outstanding clarity where traditional lenses fail. With a large aperture that captures ~2.6× more light than common F1.6 optics, it is the ideal choice for FPV night drones, UAV inspection systems, robotics navigation, and substation night patrol monitoring.

This low light M16 lens 1/1.8 provides consistent sharpness across the field, supports IR corrected M16 lens 850nm 940nm versions for infrared applications, and features a low distortion M16 lens machine vision design, making it equally suited for machine vision and embedded security systems.

Product Name：1/1.8'' 5mm m16 lens mount 10G glass 4K F0.95 black light custom cctv camera lens 12MP 1/2''

Product Advantage
1, Unique 5mm Fixed Focal Length design
2, Work with max 1/1.8 Cmos Sensor
3, Widely used in Automotive Industry Lenses
4, Horizontal 88 degree with 20mm hole lens holder
5, Japanese Glass elements and metal barrel housing
6, 10G Full Glasses M16 Lens Mount, Truck Camera Lens
6，Actual Largest Aperture up to F0.95 ( 0.95 Aperture Lens )

Product Specification
keying technical feature of 5mm M16 Lens mount
1，TTL: 49mm
2, EFFECT Focal length: 5mm
3, Aperture F/No: F0.9 Black Light, Dark Light Lens
4, Optical Back Focal Length: 6.48mm
5, Mechnical Back Focal Length: 5.35mm
6, Max image circle: 8.9
7, FOV (D/H/V):118/88/63 (1/1.8 cmos sensor)
8, Optical Distortion: <-42%
9, Relative illumination:>40%
10, CRA: <5.25 degree
11, mount type: M16*P0.5
12, Lens construction:10G+1IR
13, IR Coating:T=50%@650+/-8nm
14, working  temperature:-30 to +80 degree
15, storage temperature:-30 to +90 degree
16, ultraviolet-proof standard: 500w@72H

Application Scenarios

• Night Drone / UAV Inspection — as a drone night M16 lens, delivers wide and bright views during dark flights.
• Robotics Vision — supports robotics vision M16 starlight lens applications in warehouses and AMRs.
• Substation Monitoring — ideal as a substation night patrol M16 lens for cabinet and yard inspection.
• Machine Vision & Security — stable imaging for low distortion M16 lens machine vision tasks and CCTV retrofits.
