Extreme Low-Light & NIR: IMX462 STARVIS USB Camera Module (UVC, 38×38 mm)
150degree wide angle starlight lens starvis imx462 H.264 usb camera module with strong NIR and replaceable lens





Product Overview

The IMX462 STARVIS USB Camera Module delivers reliable performance in extreme low-light (0.001 Lux) and provides outstanding near-infrared (NIR) sensitivity at 850 nm and 940 nm. With its compact 38×38 mm PCB, interchangeable M12/CS lens mount, and UVC-compliant USB2.0/USB-C interface, it integrates seamlessly into UAVs, AMRs, and industrial monitoring systems.

Built for night inspection, robotics navigation, and energy facility surveillance, this module offers both color imaging in near-darkness and high-quality monochrome imaging under IR illumination.

IMX462 USB Camera Module for Extreme Low-Light & NIR Imaging
See in the Dark: Unmatched Vision in Near-Infrared and Extreme Low-Light.
A UVC-compliant 1080p USB camera module, expertly engineered for machine vision, scientific analysis, and surveillance applications where light is a luxury, not a guarantee.



Not Just Bright, But Scientifically Superior: The IMX462 Advantage

Standard cameras fail when light fades. The IMX462 excels. We have engineered this module to harness the full potential of Sony's STARVIS technology, delivering usable data from scenes where other sensors see only noise.

1. King-Class Near-Infrared (NIR) Performance

The IMX462’s core strength is its phenomenal sensitivity in the Near-Infrared spectrum. Its Quantum Efficiency (QE) in the 850nm to 940nm bands is more than double that of conventional CMOS sensors. This means it captures more data from ambient starlight, moonlight, and active IR illumination.

[Clear graph showing the Quantum Efficiency (QE) curve of the IMX462, with a pronounced peak in the NIR region, compared against a curve for a "Standard Sensor".]

Your Benefit: Achieve superior performance in nocturnal surveillance, high-contrast biometric recognition (iris), and industrial applications that rely on NIR illumination for analysis. See farther and clearer with less power consumption from your IR sources.

2. Clean Signal, Clear Vision with High Conversion Gain

Brightness without clarity is useless. The IMX462 integrates Super High Conversion Gain (HCG) technology, which amplifies the image signal at the pixel level before noise is introduced.

[Side-by-side still image comparison. Left image is labeled "Standard Sensor at High Gain" and shows significant digital noise/snow. Right image is labeled "IMX462 with HCG at High Gain" and shows a much cleaner, clearer image under the same lighting.]

Your Benefit: The result is a clean, stable image with fine details preserved, even in challenging low-light conditions. This is crucial for reliable object detection, tracking, and analysis in your application.

3. Seamless Integration with Plug-and-Play Simplicity

This module is fully UVC (USB Video Class) 1.1/1.5 compliant. There are no proprietary drivers to install and no complex software dependencies. It just works.

[A clean graphic showing logos of compatible operating systems and platforms: Windows, Linux, macOS, Android, NVIDIA Jetson, Raspberry Pi.]

Your Benefit: Save weeks of driver development time. Our module is instantly recognized by most operating systems, allowing your team to focus on your core application, not on camera debugging and integration headaches.

More Than a Module: An Engineering Partnership

Off-the-shelf hardware is a starting point. A true solution requires a partnership. We provide the engineering support and customization you need to achieve optimal performance.

Expert ISP Tuning

We don’t just ship modules with default Sony settings. Our in-house engineers work with you to custom-tune the Image Signal Processor (ISP). We optimize critical parameters—white balance, exposure algorithms, 2D/3D noise reduction, and color matrix—for your specific lighting conditions and application.

Flexible Customization Options

Your project has unique mechanical and optical requirements. We provide a full range of customization services to ensure a perfect fit:

• Lens Selection: M12/CS-Mount, a wide range of Field of View (FOV) options, and high-resolution, low-distortion lenses.
• Cable & Connector: Custom cable lengths, connectors (e.g., USB Type-C), and pinouts to match your enclosure.
• Form Factor Adjustments: We can discuss minor modifications to the PCBA shape and size to fit into tight spaces.

Rock-Solid Technical Support

Your success is our success. We provide comprehensive support to accelerate your development cycle:

• Complete Documentation: Get clear, professionally written datasheets and technical manuals.
• 3D Models: We provide STEP/IGES files for fast and accurate mechanical integration.
• Direct Engineer Access: Get your questions answered quickly and accurately by the engineers who designed the module.



Technical Specifications & Resources

Category	Specification
Sensor	Sony STARVIS IMX462
Resolution	1920 (H) x 1080 (V), 2.13 MP
Pixel Size	2.9 µm x 2.9 µm
Sensor Size	Type 1/2.8"
Frame Rate	Up to 120fps @ 1080p
Interface	USB 2.0 / USB 3.0 (Selectable)
Protocol	UVC 1.1 / 1.5 Compliant
Output Format	YUV / MJPEG
Shutter Type	Rolling Shutter
Lens Mount	M12 (S-Mount) / CS-Mount (Optional)
Dimensions	38mm x 38mm (Standard, custom options available)
Power	5V, via USB Bus
OS Support	Windows, Linux, macOS, Android



Sensor vs Module Output (Clarified)

• Sensor capability (MIPI): 1080p at high frame rates.
• Module over USB:
  • USB 3.0: up to 1080p@120 fps (MJPEG), YUY2 frame rates vary by resolution
  • USB 2.0: up to 1080p@30–60 fps (MJPEG), depending on bitrate and host bandwidth
• Tested with UVC 1.1/1.5 on Windows and Linux platforms.



Integration & Compatibility

• Plug-and-play with Windows / Linux / macOS / Android
• Fully compatible with Jetson Orin/Xavier, Raspberry Pi 5/4, x86 IPCs
• Supported by OpenCV, GStreamer, and V4L2 pipelines

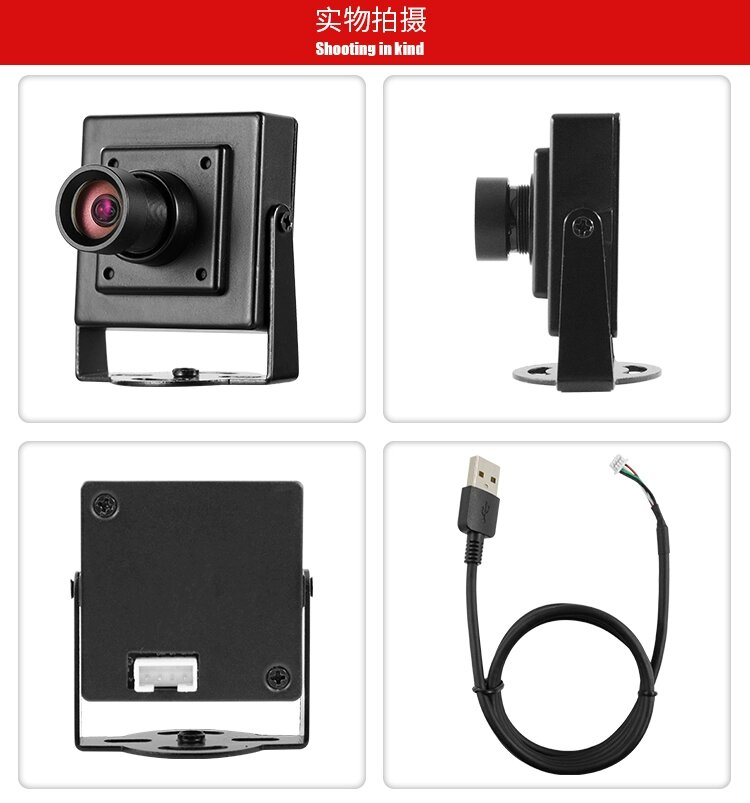

This imx462 starvis usb camera module with metal case/housing

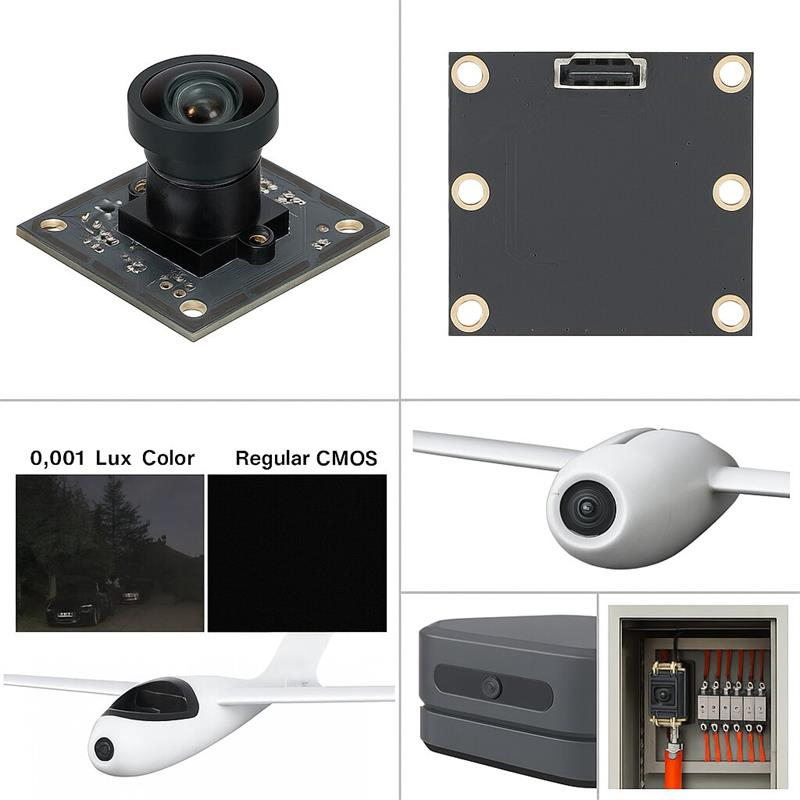

Its main product application

Customer story/ case study

A European energy provider deployed the IMX462 module inside substation cabinets. Using 940 nm IR illumination, they achieved non-intrusive night monitoring while reducing false alarms by 35% compared to conventional cameras.



Ready to Solve Your Toughest Low-Light Challenge?

Our standard IMX462 module is ready for immediate evaluation, and our engineering team is on standby to discuss your custom requirements. Tell us about your project, and let's build the perfect vision solution together.

reach our engineering team directly at office@okgoobuy.com
