14×14 mm 12MP UVC Autofocus USB Camera — 4K@30fps for Embedded Vision

Product Overview

The UC-503-12MP is a compact 12MP UVC camera board designed for demanding embedded and industrial vision applications. Built with a Sony 12MP USB camera module UVC sensor, it supports 4000×3000 at 15 fps, 4K (3840×2160) at 30 fps, and 1080p at 30 fps, making it a high resolution miniature machine vision camera for projects where image clarity and integration flexibility are critical.

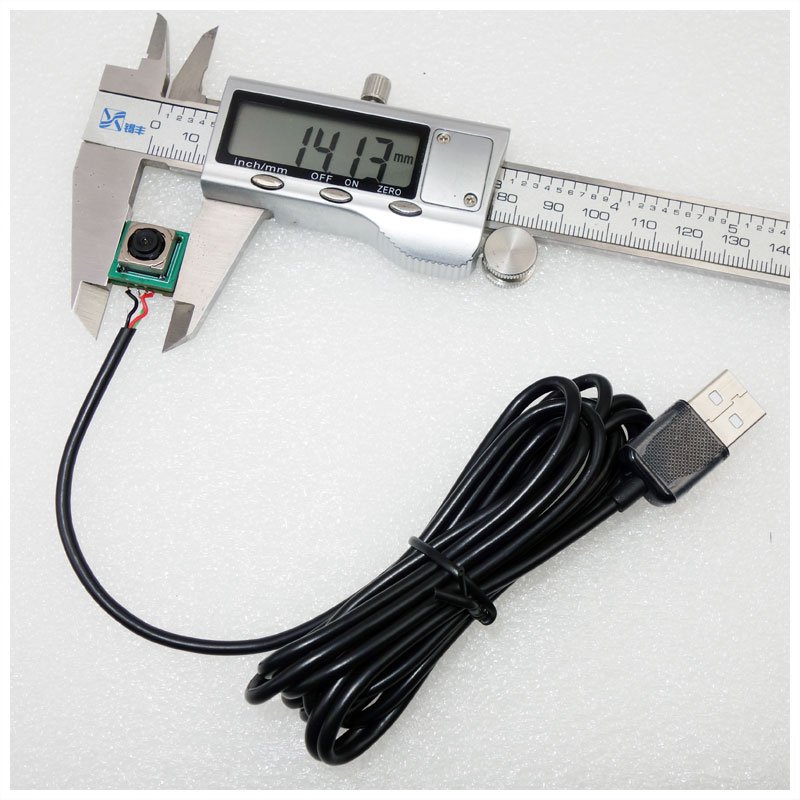

With a footprint of only 14×14 mm (housing 17×17 mm with mounting holes), this 14×14mm mini USB camera module autofocus solution is lightweight, compact, and reliable. It is widely used in UAV inspection, robotics vision, substation cabinet monitoring, and as an embedded camera for smart terminal and kiosk applications

Novel Compact 14x14mm High resolution embedded camera module with 4K@30fps resolution. Ideal for robotics, embedded AI, medical imaging, and industrial inspection. Plug & play UVC compliant, Vision System Component (Tiny UHD 4K Embedded Vision Sensor)

High-Resolution Embedded 4K USB Camera for Energy Infrastructure Inspection and Industrial Machine Vision



Key Selling Points & Advantages for Industrial Application

1. Ultra-Compact Size (14×14mm)
• Perfect for space-constrained industrial designs.
• Easily embedded into compact robots, smart terminals, and automation units.
• Enables modular design in miniaturized equipment.

2. High Resolution – 12MP, 4K Output
• Delivers sharp, high-definition images for precision inspection.
• Supports 4056×3040 resolution for microscopic or detailed part analysis.
• Enhances accuracy in machine vision, defect detection, barcode reading, etc.

3. Plug-and-Play UVC Compliant
• Standard USB 2.0/3.0 interface (UVC).
• No driver required for Windows, Linux, or Android — easy integration.
• Reduces R&D time and speeds up product prototyping or deployment.

4. Industrial & Embedded System Friendly
• Compatible with Jetson Nano/Xavier, Raspberry Pi, ARM boards, and x86 platforms.
• Ideal for AI vision, edge computing, smart factories, and automation lines.
• Suited for continuous, real-time operation in industrial settings.

5. Low Latency & High Frame Rate (Up to 30fps @ 4K)
• Captures real-time motion clearly — important for robotic vision & object tracking.
• Supports MJPEG/YUY2 formats for streaming or edge processing.

6. Flexible Customization Options
• Can customize FPC cable length, USB connector type (A, C, Micro), lens holder, IR cut filter.
• OEM/ODM supported for industrial device manufacturers.

7. Reliable Operation in Industrial Environments
• Supports extended temperature range operation (based on sensor options).
• Can be encased in IP-rated housing for factory floor or outdoor use.



Why autofocus is critical to embedded systems?

1，No manual focus adjustment required after installation

2，Adapt to different working distances

3，Many embedded applications (e.g., industrial inspection, robot navigation, security monitoring) require rapid response. The AF module achieves millisecond focusing speeds to meet real-time requirements and avoid focus delays caused by busy main processors

4，In environments such as temperature changes and slight vibration, the focus position of the lens may be shifted. The AF module automatically detects and compensates for this offset to maintain imaging stability

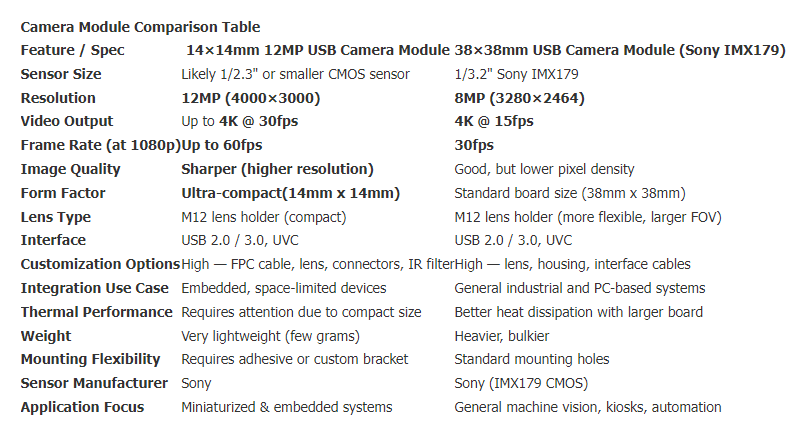

Camera Module Comparison Table



Use Case Recommendations

Application	Recommended Camera
Mini robots / drones / wearables	✅ 14×14mm module
Machine vision / AOI / barcode	✅ 38×38mm (IMX179)
AI edge devices / Jetson platforms	✅ 14×14mm module
PC-based webcam / USB microscope	✅ 38×38mm (IMX179)



Ideal Industrial Applications

• Automated Optical Inspection (AOI)
• Robotics (AMRs, cobots, ROS, pick-and-place)
• Industrial barcode & QR scanning
• Smart manufacturing & vision-guided assembly
• Medical & lab automation
• Edge AI-powered detection/classification
• Security terminals, kiosks, and access control systems



Main Technical parameter

Model No.	UC-503-12MP
Sensor	CMOS 12MP
Resolution	4000*3000P@15FPS, 12MP 3840*2160P@30FPS, 8MP 1920*1080P@30FPS, 2MP
Output	USB2.0,USB-A / TYPE-C / Micro USB
FOV	80° , optional
Focus	Manual
Photo Format	MJPG
Video Output	MJPG/YUY2
White balance	Auto
Microphone	Built in Microphone

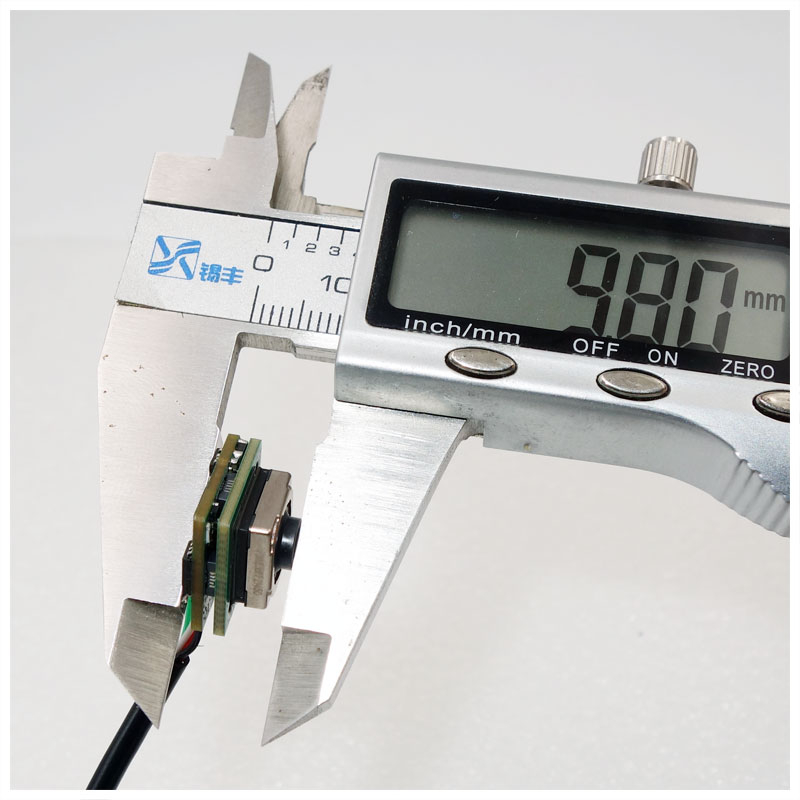

Dimension	Module: 14*14mm Housing: 17*17mm
Length of cable	5cm~5M, standard 2M
Power	5V / 155mA
System	WIN10/11/Android/Apple Mac/Linux
Temperature	-10~+70℃

Integration & Software

• Plug-and-Play UVC: no drivers needed, recognized as standard webcam device
• Works with OpenCV / GStreamer pipelines for machine vision
• Developers can access autofocus, exposure, and gain via UVC controls

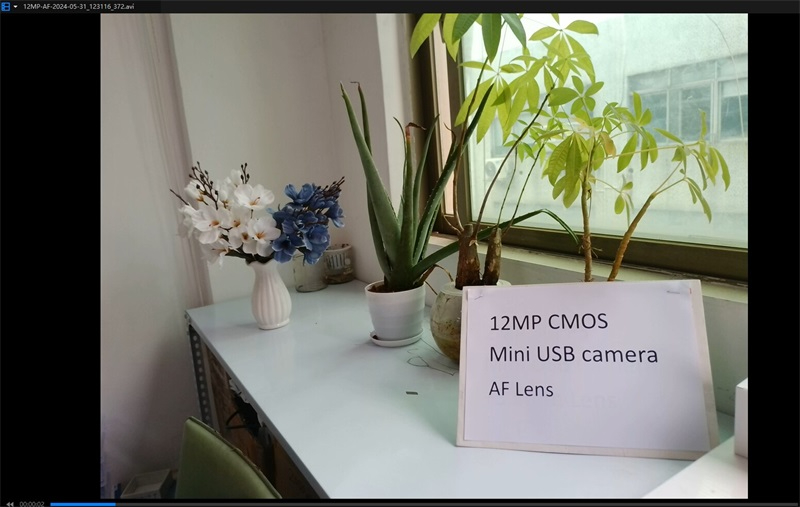

 compressed video screenshot of UC-503-12MP Smallest sony 4K@30fps usb camera in daytime, October, 2024

( the following image had been compressed much because of website design request)



Why you can work with Novel Manufacture Ltd?

1, we provide various micro mini 15*15, 12*12, 14*14mm with 1MP/2MP/4MP/5MP

/8MP/12MP, MF or Autofocus, with or without housing, custom-made usb cable and interface

2, Your personalize custom-made camera can be tailored specially without high MOQ but within 1-2 months from idea to finished sample,

one-stop shopping and turnkey service

3, Novel provide various kinds of EFL Lens M2/M3/M4/M5/M5.5/M6/M7/M8/M9/M12/M16

/M22/D14/CS-mount/C mount camera lens models to extend and meet more special requirements



Call to Action

Looking for a sony 12MP USB camera module UVC with 4K@30 fps, compact mechanics, and autofocus?

Contact us for OEM customization of your 12MP UVC camera board, whether for industrial inspection, robotics, or embedded vision system

or smart terminals or AI edge
