High-resolution thermal vision for industrial platforms; USB/UVC evaluation, long-focal lens choices, optional measurement and ODM interfaces support project sample configuration.

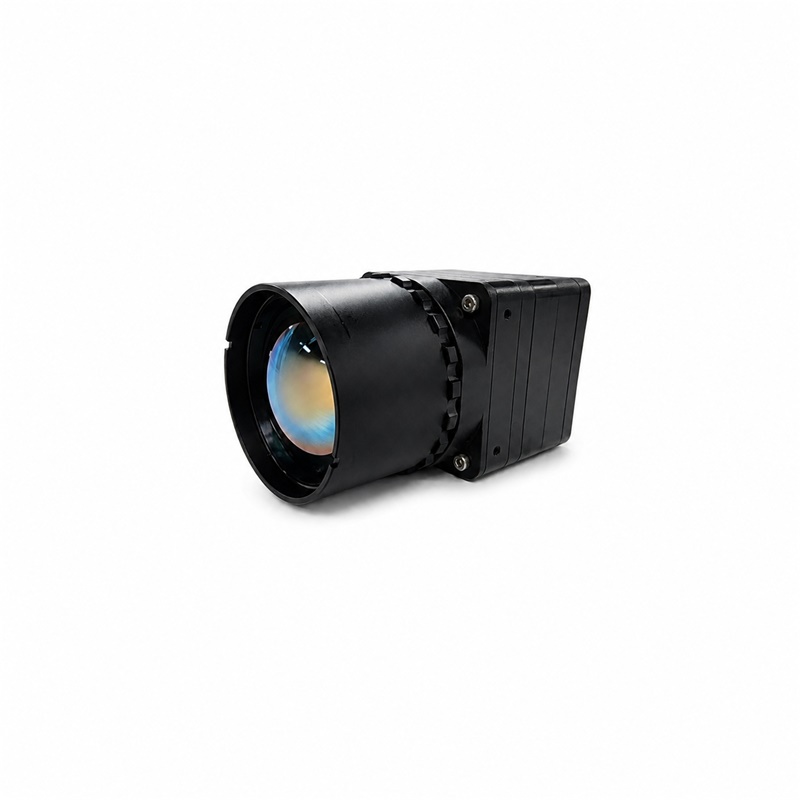

Goobuy UC-548 1280×1024 USB thermal imaging module is a high-resolution LWIR thermal vision add-on platform for industrial OEMs, system integrators, mining monitoring providers, energy facility operators, oil & gas inspection platforms, and forest-fire early-warning systems that need USB/UVC video, multiple focal-length lens options, optional temperature measurement, UART control, and ODM interface customization
Many industrial customers do not need a consumer thermal camera.
They already have an industrial host device, monitoring platform, AI box, inspection system, energy facility cabinet, mining safety solution, forest-fire observation station, or remote equipment monitoring platform.
What they need is a high-resolution thermal imaging add-on that can be connected, tested, configured and adapted to their existing system.
The Goobuy 1280×1024 USB thermal imaging module is designed for this type of project.
It is based on an uncooled VOx LWIR thermal core with 1280×1024 resolution, 12μm pixel pitch and 8–14μm spectral response. The USB/UVC version is recommended as the first evaluation path for industrial PCs, Windows/Linux workstations, AI boxes, thermal analytics software and engineering test platforms.
For qualified ODM projects, HDMI, MIPI, SDI, BT1120, UART control, different lens configurations, cable routing, connector direction, enclosure concept and interface board options can be discussed according to the customer’s host platform and application environment.
This product is not positioned for individual buyers, low-cost handheld thermal cameras, hunting optics, tactical devices or consumer retail markets. It is designed for serious civil industrial monitoring, resource infrastructure, mining, energy, oil & gas, forest-fire early warning, predictive maintenance and high-resolution thermal analytics projects.
Use this quick checklist before reading the full page.
| Continue Reading If Your Project Needs… | This Module May Not Be the Right Fit If… |
|---|---|
| A 1280×1024 LWIR thermal imaging add-on for an existing industrial platform | You are looking for a low-cost handheld consumer thermal camera |
| USB/UVC thermal video for fast evaluation with an industrial PC, AI box or software platform | You only want to compare the lowest thermal camera price online |
| Multiple focal-length lens options for different monitoring distances and target sizes | You need a finished retail thermal imager with no integration work |
| Optional temperature measurement for equipment monitoring and thermal trend analysis | You need certified high-temperature furnace, molten metal, welding or flame measurement |
| A thermal vision accessory for mining, oil & gas, energy facility, forest-fire or industrial monitoring systems | You need a hunting optic, tactical device, weapon sight or military payload |
| HDMI, MIPI, SDI, BT1120 or UART customization for qualified ODM projects | You do not have a host device, integration team or project background |
| A project sample configuration before small-batch deployment | You need an ATEX/IECEx explosion-proof thermal camera out of the box |
Best-fit customer profile:
This product is best suited for industrial OEMs, system integrators, mining monitoring providers, energy facility monitoring companies, oil & gas inspection platform builders, forest-fire early-warning solution providers, industrial AI hardware companies and enterprise thermal analytics teams that already have a host platform and need a configurable high-resolution thermal imaging add-on.
Recommended first action:
Send Goobuy your host device, application scene, working distance, target size, preferred lens, required interface, enclosure conditions, software platform, testing schedule and estimated quantity. We will recommend a practical sample configuration based on our existing 1280×1024 thermal imaging platform.
Many industrial OEMs and system integrators already have a host device, industrial PC, AI box, monitoring cabinet, field inspection platform or software system.
Starting from a raw thermal detector or low-level sensor interface can be slow, risky and expensive.
The USB/UVC version gives engineers a faster evaluation path. It helps teams test high-resolution thermal video, compare lens options, evaluate target distance, check software workflow and decide whether deeper ODM customization is needed.
This makes the module suitable as a thermal vision add-on, not just a bare thermal camera board
For mining conveyors, energy facilities, oil & gas equipment yards, forest-fire observation stations, power infrastructure and remote industrial assets, the question is not only:
Can we see heat?
The real question is:
Can we see enough thermal detail to support useful observation, detection, warning or AI analysis?
The 1280×1024 resolution provides a higher thermal image detail level than common low-resolution thermal sensors. This is valuable when the customer needs to observe larger scenes, multiple targets, distributed hot spots or longer-distance thermal signatures.
Typical examples include:
A forest-fire watchtower, mining conveyor tunnel, power cabinet, oil & gas tank farm and energy facility yard do not need the same field of view.
This platform can be discussed with multiple focal-length lens configurations according to:
Shorter focal lengths may be better for electrical cabinets, test benches, indoor equipment rooms and close-range inspection.
Longer focal lengths may be considered for forest-fire observation, mining sites, energy infrastructure, oil & gas facilities and large outdoor industrial areas.
This is one of the main reasons to position the product as a project-configured thermal imaging platform, not a generic thermal camera module.
Not every customer needs temperature measurement.
Some projects only need high-resolution thermal video for observation, image analysis, abnormal hot-spot detection or AI thermal analytics.
For customers that need temperature-related output, an optional temperature-measurement version can support center-point temperature, area maximum temperature, area minimum temperature and area average temperature within the supported measurement range.
This helps customers choose the right version based on real project requirements, instead of over-specifying every sample.
USB/UVC is the recommended starting point because it is easier for fast evaluation with industrial PCs, Windows/Linux systems, AI boxes and software-based thermal analytics platforms.
However, some mature OEM projects may already have embedded video boards, FPGA processors, DVR/NVR systems, SoC platforms or professional video architectures.
For these customers, HDMI, MIPI, SDI, BT1120 and UART-based control can be discussed as project-dependent ODM options.
This keeps the product USB-first, while still allowing deeper integration for qualified projects.
Professional OEM customers often need to control image parameters from their own host system.
They may need to adjust brightness, contrast, polarity, sharpening, bad-pixel correction or saved parameters during integration and field testing.
UART control makes the module more suitable for secondary development and system-level integration. This is important for customers building monitoring devices, industrial AI platforms, inspection instruments, energy facility systems and thermal analytics platforms.
This product is positioned for qualified civil industrial and enterprise integration projects.
It is not designed for individual retail buyers, hunting optics, weapon sights, tactical devices, military payloads, combat drones or low-cost consumer thermal cameras.
This clear positioning helps serious industrial customers understand that Goobuy is focused on project-based industrial integration, not consumer retail competition.
For high-end thermal imaging projects, the first step should not be mass customization.
A better path is:
Project background → host platform review → lens and interface selection → sample configuration → test feedback → small-batch project discussion.
Goobuy can help qualified customers evaluate the right starting configuration based on their existing platform, installation environment, software workflow, target distance, lens needs, temperature measurement requirement and estimated quantity.
This 1280 thermal imaging module is mainly recommended for:
It is especially suitable when your team already has a platform and needs to add high-resolution thermal imaging as a:
Goobuy does not position this 1280 thermal imaging module as a low-cost sensor part for consumer products.
It is better suited as a project-configured thermal vision add-on for companies that already have:
Instead of asking only for unit price, professional customers are encouraged to send their project background, host platform, working distance, target size, lens requirement, interface preference, housing concept, cable layout, temperature measurement requirement, testing schedule and estimated quantity.
Goobuy will review the application and recommend a practical sample configuration based on our existing 1280×1024 thermal imaging platform.
The recommended starting configuration is the USB3.0 UVC version.
It helps engineers connect the thermal module to industrial PCs, Windows/Linux workstations, AI boxes, monitoring software and laboratory test platforms quickly.
For qualified ODM projects, other output and control options can be discussed according to the customer’s system architecture.
| Integration Need | Recommended Direction | Typical Customer |
|---|---|---|
| Fast evaluation with PC or AI box | USB3.0 UVC | Industrial AI, thermal analytics, test platforms |
| Local monitor preview | HDMI | Inspection instruments, operator display, field debugging |
| Embedded SoC integration | MIPI | Custom hardware OEMs with driver resources |
| Professional video processing | SDI / BT1120 | FPGA, ISP, DVR/NVR, embedded video boards |
| Host-side control | UART | OEM systems needing image parameter adjustment |
| Project-specific configuration | Lens, cable, connector, housing, bracket | System integrators and equipment manufacturers |
The final configuration depends on the customer’s host device, interface board, installation environment, software platform, expected quantity and engineering schedule.
Different applications require different lens configurations.
The lens should not be selected only by focal length. It should be selected according to target distance, target size, required field of view, installation height, environment and detection task.
| Lens Direction | Better For | Typical Applications |
|---|---|---|
| Shorter focal lens | Wider field of view, close-range thermal observation | Electrical cabinets, test benches, battery cabinets, indoor equipment rooms |
| Medium focal lens | Balanced field of view and detail | Mining conveyors, pump rooms, compressor rooms, switchgear areas |
| Longer focal lens | Narrower field of view, longer-distance observation | Energy facilities, remote industrial sites, forest-fire watchtowers |
| Zoom / long-focal configurations | Flexible observation distance and target framing | Forest-fire monitoring, mining sites, large outdoor yards, port terminals |
Available long-focal configuration directions may include options such as 55mm, 30–150mm, 36–180mm and 30–270mm, depending on selected version and project feasibility.
Before requesting a sample, customers should provide:
This helps Goobuy recommend a realistic lens and sample configuration instead of a generic thermal camera module.
Some customers only need high-resolution thermal video for observation, AI detection or image analytics.
Other customers need temperature-related output for condition monitoring and thermal trend analysis.
For projects requiring temperature data, an optional temperature-measurement version can support:
This version is suitable for equipment monitoring, thermal trend observation and civil industrial anomaly detection within the supported range.
It should not be promoted as a high-temperature furnace, molten metal, glass kiln, welding, flame or extreme heat measurement solution unless a different calibrated configuration is confirmed.
Mining sites often need thermal monitoring for conveyors, rollers, drive motors, electrical rooms, bulk material storage, stockpiles and remote equipment areas.
The 1280×1024 USB thermal module can be evaluated as a high-resolution thermal vision add-on for mining equipment suppliers and mining system integrators that need more thermal detail than low-resolution sensors.
Typical project questions this module can help answer:
For hazardous or explosive environments, explosion-proof housing, optical window material, sealing, cable routing and certification must be handled at the system level by the customer or integrator.
Oil & gas facilities may need thermal observation for pump stations, compressor rooms, pipeline stations, tank farms, refinery equipment, valve areas, remote energy assets and industrial equipment rooms.
This module can provide high-resolution LWIR thermal video for equipment status observation, abnormal heat detection and project-based thermal analytics.
It is best suited for civil industrial monitoring platforms, not for consumer or tactical use.
For hazardous zones, the module itself should be integrated into a certified system-level enclosure designed by the customer, integrator or qualified housing partner.
Energy infrastructure customers may need thermal visibility around substations, transformers, switchgear rooms, battery energy storage systems, power conversion cabinets, solar farms, wind turbine equipment rooms and remote power facilities.
The 1280×1024 resolution helps provide more spatial detail for thermal observation compared with low-resolution thermal sensors.
The USB/UVC version is suitable for fast testing with industrial PCs, monitoring software and AI edge boxes. The optional temperature measurement version can support thermal trend monitoring when the target temperature range fits the module configuration.
For forest-fire early-warning systems, watchtower platforms, mountain observation stations and environmental safety monitoring projects, high-resolution thermal imaging can help detect abnormal hot spots and thermal signatures over large outdoor areas.
The module can be configured with suitable focal-length lenses depending on observation distance, installation height, target size, field of view and weather environment.
This product should be treated as a thermal observation component, not as a certified fire-alarm system by itself. Final system performance depends on lens selection, enclosure design, installation height, weather conditions, communication system, AI algorithm, calibration and field validation.
Ports, coal terminals, storage yards and bulk material facilities may need thermal observation to detect abnormal heat buildup, equipment overheating or hot spots in stored materials.
The 1280 thermal module can be configured with appropriate lenses for fixed observation points, monitoring towers or equipment-mounted inspection systems.
This application is suitable for system integrators and monitoring equipment companies that already provide industrial monitoring platforms and need a thermal vision channel as an added capability.
Many industrial AI platforms already process RGB cameras, vibration sensors, sound sensors, current signals or environmental data.
Adding a high-resolution thermal video channel can help create a more complete equipment monitoring system.
The USB version can be connected to industrial PCs, AI boxes and software platforms for thermal video acquisition, anomaly detection, trend analysis and algorithm development.
This use case is ideal for companies building:
For mature OEMs and system integrators, the real question is usually not:
“Can this module output thermal video?”
The real question is:
“Can it fit our host device, software workflow, installation environment, target distance, lens requirement, cable routing, enclosure design and testing schedule?”
Goobuy supports platform-based ODM configuration for qualified industrial projects.
Instead of developing a thermal camera from zero, customers can start from our existing 1280×1024 thermal imaging platform and configure the sample according to project requirements.
ODM discussion may include:
The final configuration depends on technical feasibility, project volume, lead time and customer integration capability.
Send Goobuy your application scene, host platform, target distance, lens requirement, interface preference, software environment and estimated quantity.
Goobuy reviews whether USB/UVC, HDMI, UART, MIPI, SDI, BT1120 or a specific lens configuration is the practical starting point.
A project sample configuration can be recommended based on existing platform options and feasible customization directions.
The customer tests image quality, field of view, target distance, temperature measurement needs, software workflow and mechanical fit.
After sample validation, cable, lens, interface board, mounting, housing and quantity details can be discussed for the next project stage.
The thermal core itself is not positioned as a waterproof finished camera.
If the module is used outdoors, in rain, dust, mining areas, energy sites, humid environments or exposed installations, the customer or system integrator should design a suitable enclosure, sealing structure, optical window, cable outlet and mounting method.
For oil & gas, mining, chemical plants or explosive environments, system-level certification such as explosion-proof enclosure design must be handled by the customer or qualified integrator.
The module itself should not be treated as a certified ATEX/IECEx explosion-proof camera.
For stable long-term performance, the customer should consider internal heat buildup, enclosure material, lens mount material, heat conduction and installation structure.
The module should not be sealed into a poorly ventilated or thermally unstable cavity without engineering evaluation.
The optional temperature-measurement version is suitable for supported-range equipment monitoring, thermal trend observation and anomaly detection.
It should not be used as a universal solution for furnace, molten metal, flame, welding or extreme high-temperature measurement unless a dedicated high-temperature configuration is confirmed.
This module is recommended for civil industrial, energy, mining, forest-fire, monitoring, inspection and enterprise integration projects.
It is not positioned for individual retail buyers, hunting optics, weapon sights, tactical devices, military payloads, combat drones or other sensitive end uses.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | 1280×1024 USB thermal imaging module / LWIR thermal core |
| Detector Type | Uncooled VOx microbolometer |
| Resolution | 1280×1024 |
| Pixel Pitch | 12μm |
| Spectral Range | 8–14μm |
| NETD | ≤40mK @25°C, F#1.0 |
| Frame Rate | USB measurement version up to ≤50Hz; other versions depend on configuration |
| Main Output | USB3.0 UVC |
| Additional Output Options | HDMI, MIPI, SDI, BT1120, project-dependent |
| Communication | UART TTL 3.3V |
| Image Processing | Shutterless, digital noise reduction, non-uniformity correction |
| Image Adjustment | Brightness, contrast, sharpening, polarity / palette options |
| Power Supply | USB version typical 5V; platform configuration may vary |
| Typical Power Consumption | USB measurement version ≤1.55W @25°C |
| Size | Approx. 33mm × 33mm × 32.6mm without lens and extension components |
| Weight | ≤62g without lens and extension components |
| Temperature Measurement Option | Center point, area maximum, area minimum, area average |
| Measurement Range | -20°C to 100°C |
| Measurement Accuracy | ±3°C or ±3%, whichever is greater |
| Working Temperature | -40°C to +60°C |
| Storage Temperature | -50°C to +70°C |
| Humidity | 5%–95%, non-condensing |
| Lens Options | Multiple focal-length lens options, project-dependent |
| Target Customers | OEMs, system integrators, industrial monitoring companies, energy/mining/forest-fire platforms |
Tell Goobuy what you are building.
If your company needs to add high-resolution thermal imaging to an existing mining monitoring system, oil & gas inspection platform, energy facility monitoring device, forest-fire early-warning system, industrial AI box, predictive maintenance platform or enterprise thermal analytics solution, please send us your project background.
To help us recommend a suitable 1280 thermal imaging sample configuration, please include:
Goobuy will review your host platform, application environment, interface requirements, lens needs and integration constraints, then recommend a practical project sample configuration based on our existing 1280×1024 thermal imaging platform.
Yes. This is one of the recommended use cases. The module is better positioned as a high-resolution thermal vision add-on for existing industrial platforms, AI boxes, monitoring systems, inspection devices, mining safety systems and energy facility solutions, rather than as a low-cost consumer BOM component.
Yes. Different focal-length lens options can be discussed according to working distance, target size, installation height, required field of view and detection task. Longer focal-length lenses may be suitable for remote observation, forest-fire watchtowers, mining sites and energy facilities, while shorter lenses may be better for electrical cabinets, test benches and indoor equipment monitoring.
No. Some customers only need high-resolution thermal video for visual observation or AI analysis. The temperature-measurement version is more suitable when the project needs center-point temperature, area maximum temperature, area minimum temperature or area average temperature output within the supported measurement range.
Yes. The USB3.0 UVC version is recommended for fast evaluation. For qualified ODM projects, HDMI, MIPI, SDI, BT1120, UART control, connector layout, cable direction and interface board configuration can be discussed based on the customer’s host platform, integration capability and project quantity.
Yes. A common integration model is to use USB/UVC or HDMI for thermal video output while using UART for image parameter control. UART can support host-side adjustment of functions such as brightness, contrast, polarity, sharpening, bad-pixel correction, parameter saving and factory reset, depending on the final configuration.
No. The current temperature-measurement version is better suited for equipment monitoring, thermal trend analysis and anomaly detection within its supported measurement range. It should not be promoted as a high-temperature furnace, molten metal, glass kiln, welding or flame temperature measurement solution unless a different calibrated high-temperature configuration is confirmed.
