Goobuy UC-501-5MP autofocus USB camera for compact terminals is an embedded UVC camera module used in self-service kiosks, identity verification terminals, visitor check-in systems, healthcare check-in devices and AI retail machines to capture sharp face, ID card, QR code, document or close-range object images at variable working distances

this 15×15mm 5MP autofocus UVC USB camera module designed for OEM terminal manufacturers that need compact image capture inside space-limited hardware. It supports up to 2592×1944 MJPEG output, USB 2.0 UVC plug-and-play integration, autofocus lens control, optional USB-C cable design, and OEM customization for cable length, lens FOV, firmware descriptor, housing and mounting structure

5MP Autofocus USB Camera for Kiosks & ID Terminals

15×15mm UVC camera module for face, ID card, QR code and document capture

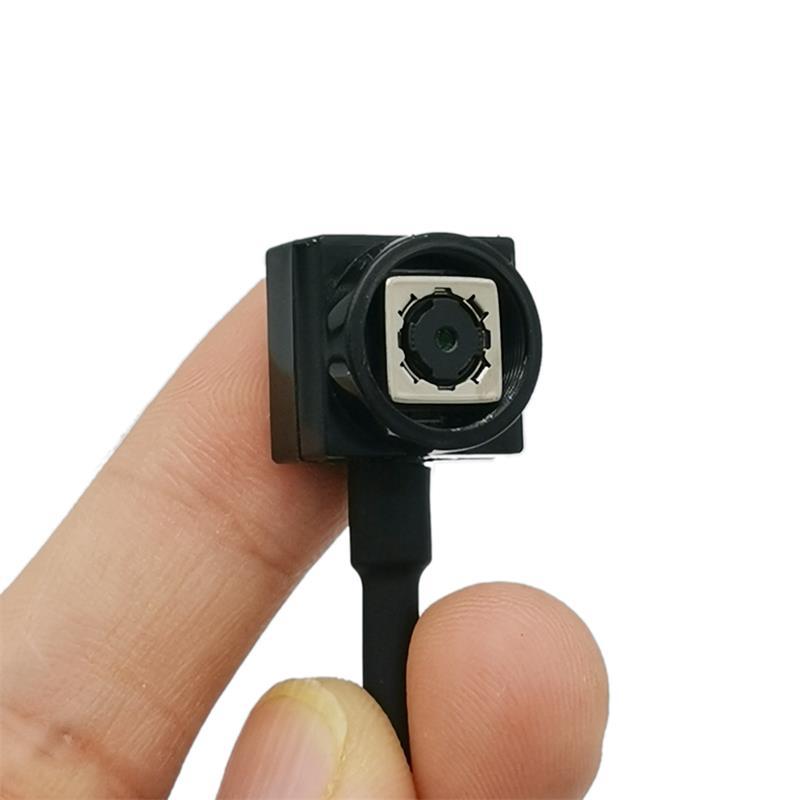

The Goobuy UC-501-5MP is a miniature 5MP autofocus USB camera module designed for compact self-service terminals, identity verification devices, visitor check-in systems, healthcare check-in kiosks and AI retail hardware.

Unlike a consumer webcam, UC-501-5MP is built as an embedded camera component for OEM product teams. Its 15×15mm board size allows engineers to install image capture inside narrow bezels, compact front panels and space-limited terminal structures. Its autofocus lens helps maintain clearer image capture when users present faces, ID cards, insurance cards, QR codes, tickets, receipts, labels or small objects at different working distances.

For U.S. and European hardware manufacturers building self-service devices, UC-501-5MP provides a compact and customizable alternative to bulky webcams, fixed-focus camera boards or oversized industrial cameras.

This product is intended for OEM and B2B embedded hardware projects, not for individual DIY camera experiments or consumer livestreaming use.

Why Compact Terminals Need a 5MP Autofocus Camera

Compact terminals are becoming thinner, more automated and more identity-aware. Many self-service and access control devices now need to capture user identity, transaction evidence, document images or close-range object details inside a very limited mechanical space.

A fixed-focus camera may work when the object distance is always controlled. However, in real terminal applications, the camera often needs to handle multiple capture distances:

• A user’s face may be 30–80cm away from the front panel
• An ID card or insurance card may be presented much closer
• A QR code, ticket or receipt may be held at an inconsistent angle
• A label, package or product surface may be placed at different heights
• A terminal may need both user-facing imaging and close-range document capture

UC-501-5MP combines 5MP image resolution, autofocus capability and a 15×15mm miniature board to help engineers solve these challenges without redesigning the entire device around a large webcam or industrial camera.

Engineering Challenges Solved by UC-501-5MP

1. Limited Internal Space

Many self-service terminals and compact access control devices do not have enough room for a standard webcam. UC-501-5MP uses a miniature 15×15mm board to support embedded installation behind narrow bezels and small front panels.

2. Variable Capture Distance

In real terminal use, the camera may need to capture a face, ID card, QR code, insurance card, receipt, ticket, label or small object at different distances. Autofocus helps reduce the risk of blurred close-range images caused by fixed-focus limitations.

3. Mixed Face + Document Capture

Some terminals need both user-facing imaging and close-range document capture. A 5MP autofocus USB camera can help handle this mixed capture requirement better than a low-resolution fixed-focus camera.

4. Faster Software Integration

For terminal platforms using Windows, Linux, Android or embedded host systems, a UVC USB camera module can reduce driver development effort and shorten the path from prototype testing to pilot production.

5. Mechanical Customization for Production Hardware

Every terminal structure is different. UC-501-5MP can be customized with different cable lengths, cable directions, connector types, lens FOV, mounting methods and housing options to better match the final product design.

6. Better Fit for OEM Projects Than Consumer Webcams

Consumer webcams are often too bulky, visually exposed and mechanically inflexible for embedded products. UC-501-5MP is supplied as a compact camera module that can be integrated directly into OEM hardware.

Product advantage

5MP 1080P autofocus USB camera module

Synchronization technology

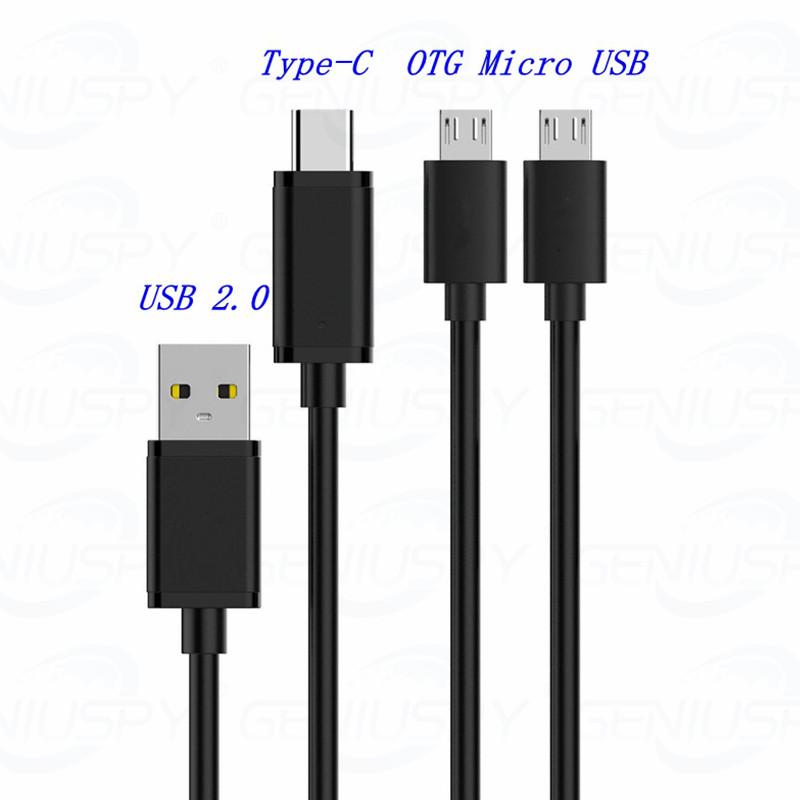

USB2.0/Mini USB / Type-C interface available

Max video output 2592*1944-MJPEG-15FPS

Fast and autofocus function to extend more commercial application easily

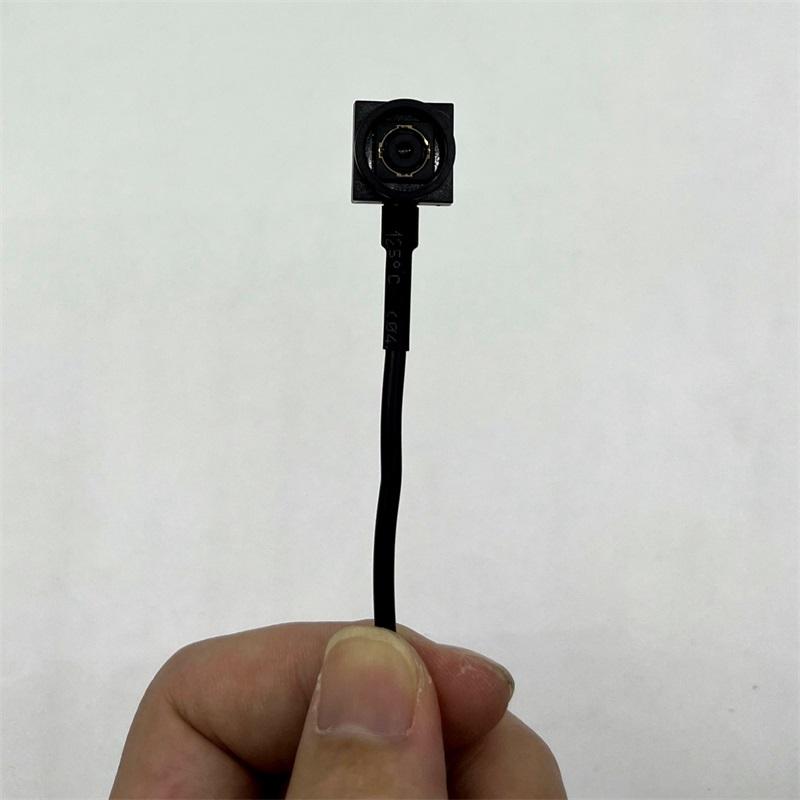

Smallest Size 15*15mm for embedded vision system application

UVC compliance for use in OS Windows, Linux, Android, Mac O/S

product application of Autofocus 15*15mm micro USB camera 5MP in Europe and USA

Primary Application: Self-Service Identity & Document Capture Kiosks

UC-501-5MP is especially suitable for self-service identity and document capture kiosks where the camera must capture a user face, ID card, QR code, ticket, receipt or document inside a compact front-panel design.

Typical devices include:

• Identity verification kiosks
• Visitor check-in terminals
• Access control panels
• Government service kiosks
• Hotel self-check-in devices
• Campus registration terminals
• Healthcare front-desk kiosks
• Payment and transaction terminals
• Ticketing and registration kiosks

In these systems, autofocus is useful because the terminal cannot fully control how users stand, where they hold an ID card, or how close they place a document to the camera. The 5MP resolution helps provide more image detail for identity capture, document snapshot, QR code reading and visual transaction records.

For kiosk manufacturers, the key benefit is not only image quality. It is the ability to integrate a small, customizable, UVC-compliant camera module into a real hardware product that may later move from prototype to pilot build and batch production.

Secondary Application A: Telehealth & Healthcare Check-in Terminals

Goobuy UC-501-5MP can also support telehealth kiosks, patient check-in terminals, pharmacy health stations and remote care front-panel devices.

Possible image capture tasks include:

• Patient face capture
• Insurance card imaging
• ID card verification
• QR code check-in
• Medical form or document snapshot
• Guided visual capture for remote support workflow
• Front-panel camera integration inside compact healthcare terminals

For healthcare terminal manufacturers, the small 15×15mm board helps reduce mechanical pressure when installing a camera inside slim medical kiosks or check-in devices. The autofocus function helps when users present cards, documents or visual information at different distances.

Important note: UC-501-5MP is intended as an embedded terminal imaging module. It is not positioned as a certified medical diagnostic imaging camera for dermatology, oral diagnosis, pathology slide analysis or clinical-grade medical imaging. For diagnostic use, the final system manufacturer must evaluate optical performance, lighting, software workflow, regulatory requirements and clinical validation according to the target application.

Secondary Application B: AI Retail, Age Verification & Smart Vending Terminals

UC-501-5MP can be integrated into AI retail terminals, age verification kiosks, smart vending machines, self-checkout devices, smart lockers and return kiosks.

Typical capture tasks include:

• ID card or age verification image capture
• QR code and ticket scanning support
• Receipt or transaction record imaging
• Package label capture
• User face image capture for account-based terminal interaction
• Product or object snapshot in unattended retail devices

AI retail and unattended service hardware often needs a small camera that can fit behind a front panel while supporting close-range capture. UC-501-5MP gives product engineers a compact autofocus UVC camera option that can be customized around the device enclosure, cable direction, connector type and software environment.

Additional Use: Benchtop Devices & Close-Range Visual Documentation

UC-501-5MP can also be used in selected benchtop devices, lab sample capture stations and close-range visual documentation systems where small size and autofocus are more important than industrial trigger control or C-mount optics.

Suitable examples may include:

• Compact lab sample documentation devices
• Desktop visual record stations
• Small-object capture terminals
• Portable inspection record devices
• Non-high-speed visual documentation systems

For high-speed industrial inspection, external trigger synchronization, global shutter capture, strobe control or C-mount machine vision optics, a dedicated industrial machine vision camera may be more suitable. UC-501-5MP is best used when the project needs a small autofocus UVC USB camera for embedded close-range image capture



Technical Specification

Product Name	5MP Mini Autofocus USB Camera 15*15mm
Cmos Sensor	Omnivision OV Image Sensor ¼ inch
Sensor pixel size	1.4 µm x 1.4 µm
image area:	3673.6 µm x 2738.4 µm
Maximum effective pixels	2592(H)*1944(V) 15FPS/1920 (H) *1080 (V) 30FPS
Video Resolution	2592*1944-MJPEG-15FPS ( 5MP)
Lens Angle of viewing	DFOV 78.2degree, HFOV 66.2 degree VFOV 52.1
Photo Pixel	5Megapixels
Photo Format	MJPG
video output	MJPG/YUY2
Lens Focal Length EFL	3.54mm
Lens TV Distortion	Less than 1%
F/No Aperture	F2.0
Support OTG protocol	USB2.0 OTG
Minimum illumination	0.1LUX
S/N Ratio	≥36dB
Dynamic range	72dB
Adjustable parameters	brightness contrast color saturation hue resolution The gamma exposure contrast gain white balance backlighting
Type of Shutter	Electronic rolling Frame shutter/ exposure
AEC, AEB, AGC	Auto support
Working temperature	-10~+50℃
Power	DC5V, USB BUS 4P-2.0mm POWER socket
Working currency	140mA~220mA
Audio Microphone	Support,
System Sync	inner Sync
Power consumption	140mA~220mA
Product Size	L15*W15*H13mm, Net weight: 50gram
Signal Type & Interface	USB 2.0 interface, digital Signal(customize Type-C)

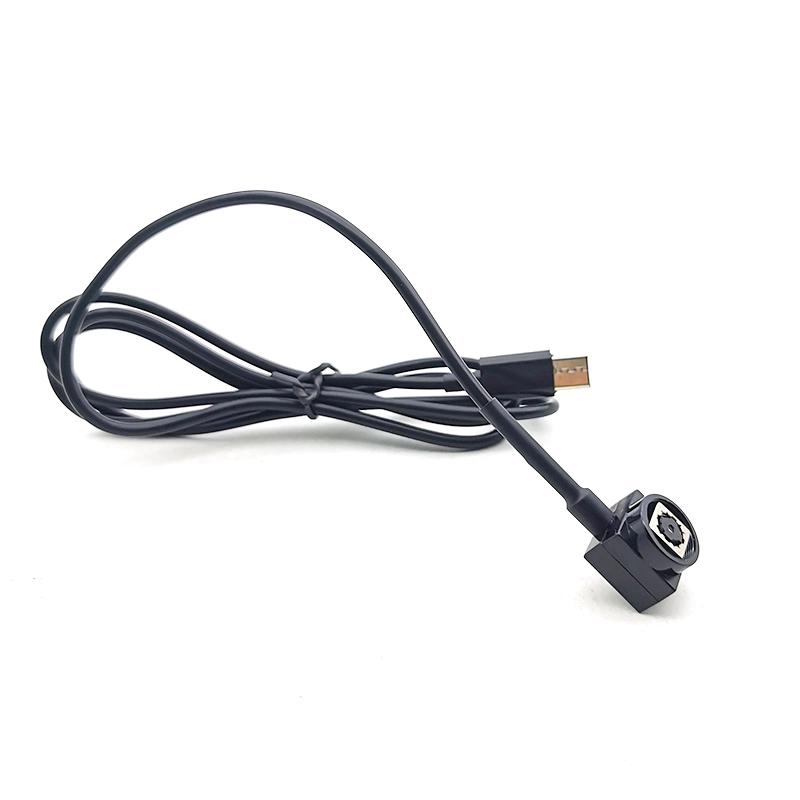

Length of Cable	1.2Meter ( 2m/0.5m/other length available custom made)
Support Operating System	WIN10/WIN7/WIN8/WinXP/Linux/Android 4.0+ version /Apple MAC-OS X 10.4.8 or later

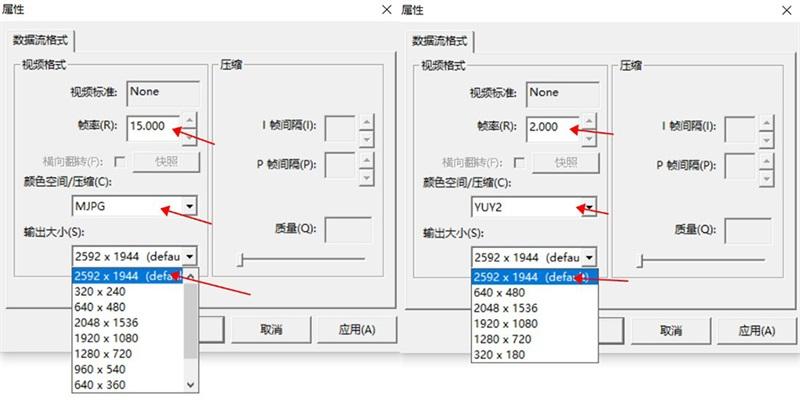

Video Frame rate	2592*1944-MJPEG-15FPS YUY2-2FPS 2048*1536-MJPEG-15FPS YUY2-3FPS 1920*1080-MJPEG-30FPS YUY2-5FPS 1280*720- MJPEG-30FPS YUY2-10FPS 950*540- MJPEG-30FPS YUY2- 640*480- MJPEG-30FPS YUY2-30FPS 320*240- MJPEG-30FPS YUY2- 320*180- MJPEG-30FPS YUY2-30FPS
Product Application	Laptop, PC computer Kiosk, Smart TV, Mobile Terminal



Integration Notes

• Works seamlessly as an NVIDIA Jetson compatible camera for AI edge computing.
• Commonly used as an OpenCV USB camera autofocus source for real-time AI experiments.
• Supports TensorFlow pipelines as a camera for TensorFlow object detection.



NDAA Compliance Statement:

we state This product is manufactured in compliance with the National Defense Authorization Act (NDAA) Section 889

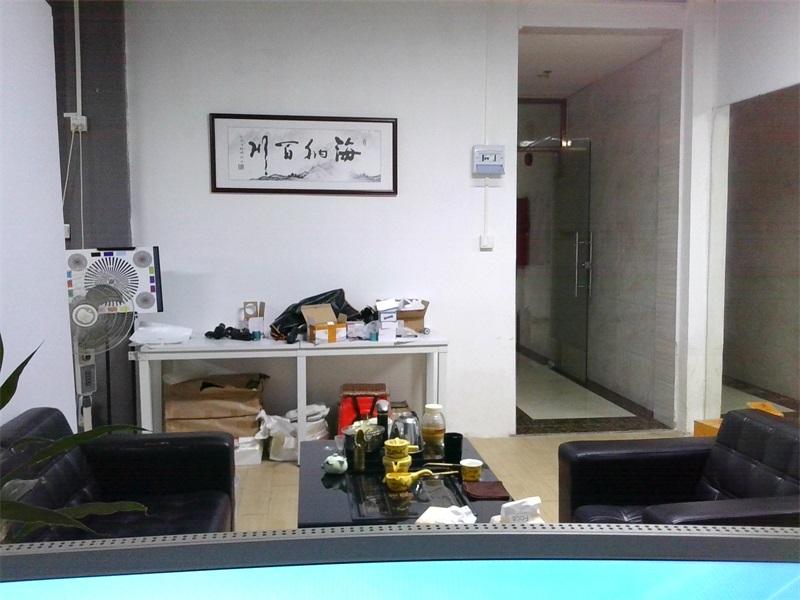

screenshot compressed picture when this 5MP autofocus micro USB camera worked and took photo indoor daytime, March, 2023

( the following image had been compressed much because of website design request)

OEM Customization Options

Shenzhen Novel Electronics Limited can support project-based customization for OEM terminal manufacturers.

Available customization options may include:

• Cable length customization
• USB-A or USB-C cable design
• Connector type selection
• Cable exit direction
• Lens FOV evaluation
• Autofocus working distance discussion
• Mini housing or front-cover structure support
• Mounting bracket design support
• Firmware descriptor customization
• Private label or project-specific packaging
• Sample testing before pilot production
• Batch supply support for production projects

To recommend the right configuration, please share your device structure, target working distance, lighting condition, host operating system, required cable direction, expected quantity and project schedule.

Why Choose Shenzhen Novel Electronics Limited

Shenzhen Novel Electronics Limited has long-term experience supplying miniature USB camera modules for embedded devices, industrial terminals and OEM hardware projects.

For U.S. and European product teams, we focus on:

• Compact camera module design
• Flexible cable and lens customization
• UVC USB camera integration
• Small-batch sample validation
• OEM and ODM project support
• Stable supply for pilot and batch production
• Engineering communication for real device integration

Goobuy camera modules are designed to help hardware teams integrate image capture into real products, not simply replace consumer webcams.

Call to Action

Need a 5MP autofocus USB camera for your kiosk, ID terminal or compact embedded device?

Send us your application details and our team will help recommend a suitable UC-501-5MP configuration.

Please include:

• Target application
• Host operating system
• Required working distance
• Front-panel or enclosure structure
• Cable length and connector requirement
• Lens FOV requirement
• Expected sample quantity
• Estimated annual volume
• Project schedule

Email: office@okgoobuy.com



Professional FAQ

FAQ 1: We are designing a self-service kiosk that needs both face capture and ID card capture. Why would we choose an autofocus USB camera instead of a fixed-focus camera?

A fixed-focus camera is usually optimized for one working distance. In a real self-service kiosk, the camera may need to capture a user’s face at a longer distance and an ID card, QR code, ticket or document at a much closer distance. UC-501-5MP uses an autofocus lens to help maintain clearer image capture when the working distance changes. This makes it more suitable for identity verification kiosks, visitor check-in terminals and document capture devices where the user’s behavior cannot be fully controlled by the hardware design.

FAQ 2: Can this 15×15mm camera module fit behind a narrow kiosk bezel or compact terminal front panel?

Yes. UC-501-5MP is designed with a compact 15×15mm board size, making it easier to integrate into narrow bezels, slim front panels and space-limited embedded terminal structures. Many OEM devices cannot use a standard webcam because of mechanical thickness, appearance, cable direction or mounting limitations. For production projects, we can discuss cable length, connector type, lens position, cable exit direction, housing design and mounting method based on your mechanical drawing.

FAQ 3: Is UC-501-5MP suitable for identity verification kiosks, visitor management terminals and access control devices?

Yes. UC-501-5MP is suitable for embedded face and ID card image capture in identity verification kiosks, visitor check-in terminals, access control panels and secure self-service devices. Its 5MP image output provides more detail for ID card, badge, document or face snapshot capture, while autofocus helps when users stand at different distances or present documents close to the camera. For high-security biometric systems requiring NIR imaging, liveness detection, anti-spoofing, iris capture or certified biometric performance, the final system integrator should evaluate additional camera and algorithm requirements.

FAQ 4: Can UC-501-5MP be used in telehealth kiosks or healthcare check-in terminals?

Yes. UC-501-5MP can support telehealth kiosks, patient check-in terminals, pharmacy health stations and healthcare front-desk devices for patient face capture, insurance card imaging, ID verification, QR code check-in and guided visual capture. However, it should be understood as an embedded terminal imaging module, not a certified medical diagnostic imaging camera. If the application involves dermatology diagnosis, oral examination, pathology, clinical imaging or medical-grade measurement, the final manufacturer must validate optical performance, lighting, software workflow and regulatory requirements.

FAQ 5: We are building an age verification kiosk or AI retail terminal. Can this camera capture ID cards, QR codes, receipts and transaction evidence?

Yes. UC-501-5MP can be used in age verification kiosks, smart vending machines, self-checkout terminals, smart lockers and AI retail devices where compact close-range image capture is required. The 5MP resolution can help capture ID cards, QR codes, receipts, package labels or transaction records with better detail than lower-resolution modules. Autofocus is useful when the distance between the camera and the card, phone screen, receipt or object changes during real user interaction.

FAQ 6: Does this camera work with Linux, Android or Windows-based kiosk systems without a proprietary driver?

UC-501-5MP is a UVC USB camera module, so many Windows, Linux, Android and macOS systems can recognize it as a standard USB video device. This helps reduce driver development work for kiosk and terminal manufacturers. However, final compatibility should always be tested on your actual host platform, OS version, USB controller, application software and camera parameter requirements. For embedded systems, we recommend validating exposure, autofocus behavior, video format, frame rate and power stability during the prototype stage.

FAQ 7: Can the autofocus behavior, lens FOV or working distance be adjusted for our terminal structure?

For OEM projects, lens FOV, working distance expectations and mechanical structure can be discussed during sample evaluation. The best configuration depends on your installation distance, front-cover material, lighting condition, capture target size and software requirements. For example, a visitor check-in terminal may prioritize face + ID card capture, while a smart vending machine may prioritize QR code, receipt or package label capture. Please share your device drawing and target capture distance so we can help evaluate a suitable configuration.

FAQ9: Can Shenzhen Novel Electronics guarantee BOM locking and supply chain stability for long-term US enterprise projects?
Absolutely. Unlike consumer-grade modules that frequently change internal components, the UC-501-5MP is an enterprise-grade OEM miniature AF camera module. Once your prototype is validated, we provide strict BOM (Bill of Materials) locking. We ensure consistent sensor, DSP, and VCM configurations throughout your product's lifecycle, eliminating the need for costly firmware rewrites during volume production.

FAQ10: Our biometric kiosk has severe space constraints. How does the thermal management perform in the 15x15mm housing during 24/7 operation?
The 15x15mm UVC autofocus camera is engineered for continuous enterprise operation. It operates at an ultra-low power consumption rate (140mA~220mA). The miniature metal housing acts as an efficient passive heatsink, ensuring stable thermal performance (-10°C to +50°C) without image degradation or thermal noise, even when sealed inside tightly enclosed secure identity kiosks running 24/7.

FAQ8: Are we able to programmatically lock or control the autofocus via our proprietary AI software?
Yes. We understand that in benchtop AI automated inspection systems, "focus hunting" can disrupt computer vision models. The UC-501-5MP supports standard UVC Extension Units (XU). Your software engineers can use standard v4l2-ctl commands on Linux or OpenCV APIs to switch from continuous autofocus (CAF) to manual focus, setting absolute focal positions programmatically for repeatable, high-speed QA tasks.
