AI Powered Active pedestrian detection and early warning Side View Rearview camera

AI algorithm

Intelligent Pedestrian Detection System adopts deep learning technology, contributing to the realization of intelligent and accurate pedestrian detection to assist drivers in driving safety.

720P Intelligent Pedestrian Detection Camera is developed to solve blind spots problem for large vehicle drivers. Commercial vehicles like trucks, buses, etc. have large black zone, for which traffic accidents might happen if vehicles come across motorcycles at high speed or sudden pedestrians when changing lane or making a turn. However, AI Intelligent Pedestrian Detection Camera can solve this problem to a large extent. The camera installed on vehicles can detect all kinds of pedestrians rapidly, enlarging drivers’ field of view and it can send alarming to drivers automatically at real time. In addition, the camera has high detection accuracy, so drivers can have more reaction time, which reduces the risks of traffic accidents.

Product Features
Pedestrian detection and early warning reversing camera is a reversing safety monitoring device specially designed for industrial vehicles, such as stackers, forklifts and other engineering equipment.

It can detect the dangerous state of the work area in real time and provide warnings to improve the safety of the operation of construction vehicles , Is an indispensable security system in the era of smart industry.

The reversing camera is based on the AI image intelligent recognition technology as the core, learned through the artificial intelligence deep learning technology, summarizes the rules of the video image data of a large number of cameras,and realizes the automatic detection and analysis of real-time video images, and provides prompts, early warnings, and control.

1. Deep learning algorithm
Through the convolutional neural network algorithm of video image recognition, deep residual neural network algorithm, online learning promotion model, etc,
combined with image dynamic analysis and prediction model and multi-redundant self-learning decision-making mechanism, intelligent image analysis, target tracking and recognition,and The identification and early warning of major hazards can meet the requirements of recognition rate ≥99% and accuracy rate ≥99% in specific scenarios.

2. Linkage function
Pedestrian/vehicle detection: When a motor vehicle/non-motor vehicle/pedestrian approaches the reversing area, it will prompt a buzzer alarm
Support external human voice warning at outside the vehicle, high temperature overload protection.

3. Versatility
Universal AHD high-definition display, which can realize AI intelligent pedestrian detection and early warning

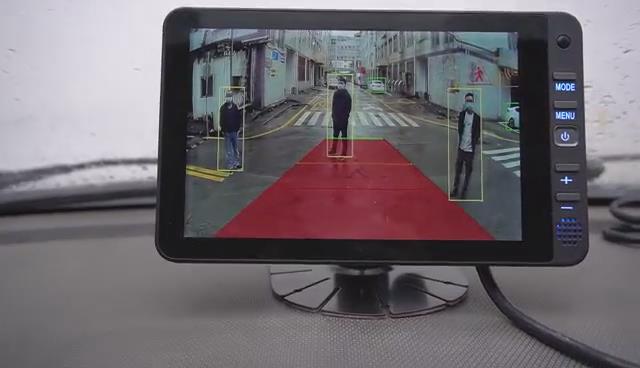

4. Pedestrian detecting and warning function, recognizing bicyclists, motorcyclists, pedestrians, etc, Precise active detection & warning powered by AI technology

5. 720P HD image display at day and night to capture pedestrian and vehicle

6. Danger zone configurable, set the suitable blind spot

7. The AI algorithm has built-in audio, and the audio is output from the camera, which can be used with any AHD Rearview monitor with audio input

8. Support front and rear, left and right installation

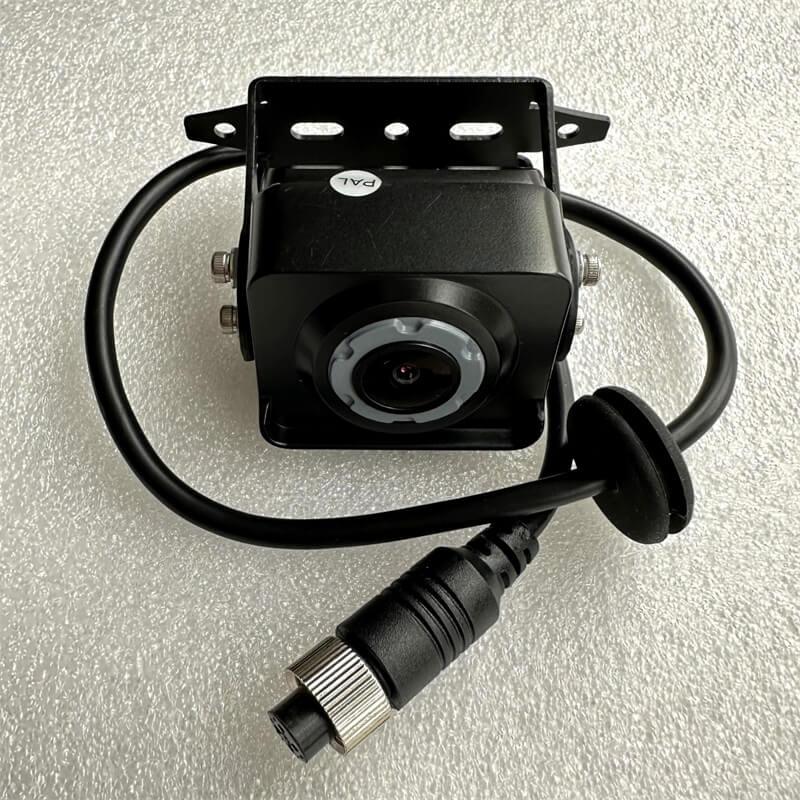

BSD Pedestrian & Vehicle Blind Spot Detection Camera
Image sensor	1/2.9' GC2053 CMOS Sensor, good night vision
Effective Resolution	1280*720P
AI recognition algorithm	Delay 120MS within the range of 0-15KM per hour
Valid Detection distance	From 0.2 to 6 meter away
Alarm voice	DiDiDi sound
AI recognition accuracy	0-15Km/h
Viewing angle	2.8mm lens   DFOV 120 degrees, HFOV 105 degree
Signal to noise ratio	》52DB(AGC OFF)
System	PAL/NTSC
Image	Mirror
Video Output	720P
Waterproof level	IP68
3D Noise reduction	Support
Connectors	4PIN aviation connector
Power supply	12V
Power consumption	About 0.8W
Maximum current	80MA
Connector	4Pin aviation  connector
Working temperature	-20℃ to 70℃
Storage temperature	-30℃ to 80℃
Keying advantage	Built-in voice speaker and AI Algorithm 3 in one
Extra Speaker/Alarm	Support external audible and visual alarm speaker
Vehicle Application	Semi Truck, coaches, heavy duty, concrete truck, autobus, forklift, large-size vehicles, saloon cars
