1

structure

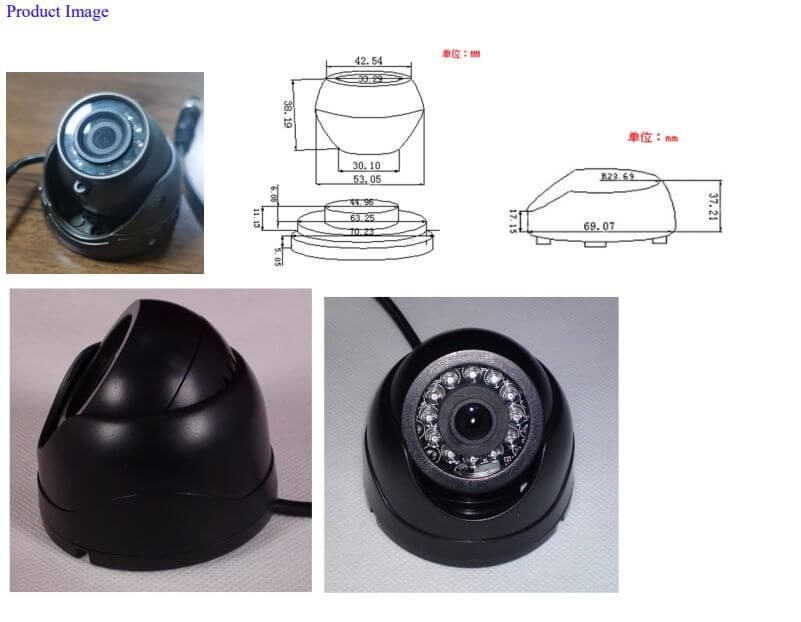

See size chart above

2

working environment

-20℃～70℃；Humidity between 20% and 80%

3

Image resolution

1MP（12pcs LED light）

4

Video resolution

1280*720 HD MJPEG@30fps

5

output

YUV2/JEPG

7

Working voltage

+5V

8

Working currency

Less than 60mA (230mA when the infrared light is on)

9

Minimum illumination

1 lux

10

White balance

Auto

11

Optical lens

2.8MM IR

13

DFOV

80 degree

14

Support drive-free protocol

USB Video Class（UVC）

15

Operating System

Widows2000/XP/WIN7/Vista/Linux with UVC

16

Interface Protocol

USB2.0

17

Tunable parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Gain, Exposure

18

Cable Length

3 meter

19

Infrared fill light

Photosensitive automatic

20

Infrared light wavelength

940

21

Night vision on illumination

5Lux

22

night view image

black and white image

23

night vision distance

3 meter

24

use environment

Indoor ( not waterproof)

25

connection connector

USB2.0（1+5v、2D-、3D+、4GND）

26

Audio

No microphone
