An industrial waterproof AHD camera system is a rugged analog HD video solution designed for real-time visual monitoring in wet, dusty, high-vibration, or high-EMI environments. Compared with USB cameras, AHD supports longer cable transmission. Compared with IP cameras, it avoids network setup and reduces video delay for local operator viewing.
Goobuy’s AC-606 IP69K AHD camera kit combines a Sony low-light AHD camera, waterproof aviation cable, and a 7-inch monitor for machinery, washdown equipment, agricultural vehicles, marine decks, and remote industrial sites where stable live video is more important than AI image processing or network-based camera management.
Many industrial monitoring projects do not need a smart AI camera, a precision machine vision camera, or a complex IP camera network. They need a stable live video feed that works near water, dust, vibration, electrical noise, long cable runs, and outdoor or mobile equipment.
This is where a waterproof AHD camera system is often a better practical choice.

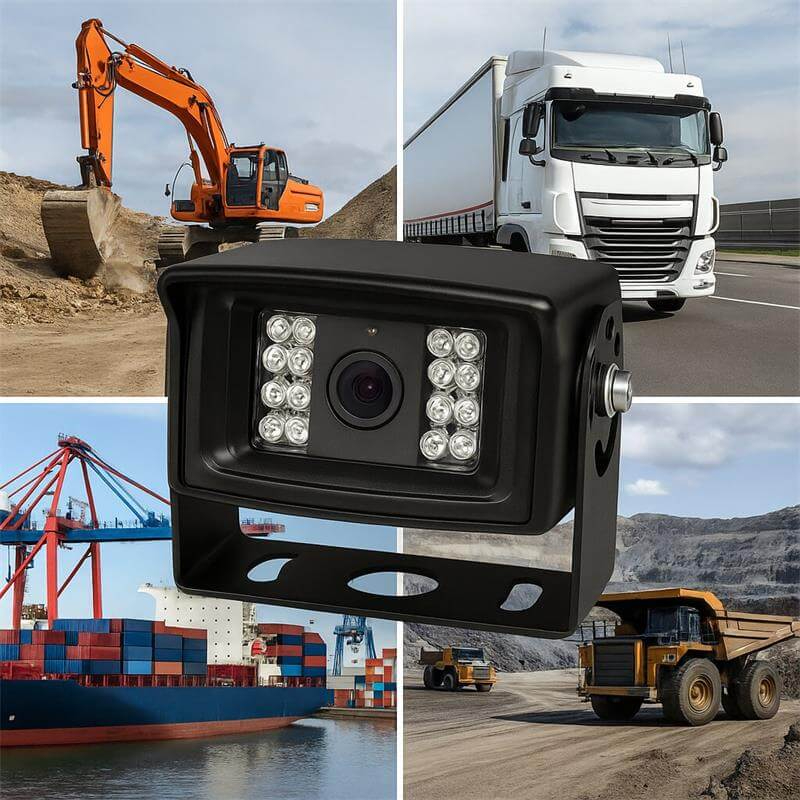

Goobuy’s AC-606 IP69K AHD camera kit is designed for real-time operator viewing in harsh environments. It combines a Sony low-light AHD camera, waterproof aviation cable, and a 7-inch monitor, making it suitable for industrial machinery, agricultural vehicles, marine equipment, washdown areas, and remote field monitoring where simple installation and reliable video matter more than network features or AI processing.
AHD is not designed to replace USB, IP, or machine vision cameras in every project. It is most useful when the buyer needs long cable distance, low-delay local viewing, waterproof construction, and a simple camera-to-monitor video system.
AHD cameras are not the best answer for every industrial vision project. Their value is strongest when the project requires stable live viewing, long cable distance, simple wiring, and reliable video in harsh environments.
USB cameras are usually best for short-distance embedded vision or direct PC connection. For machinery, vehicles, outdoor equipment, and large industrial structures, the camera may need to be installed far from the monitor. In these cases, AHD over coaxial or waterproof aviation cable is often easier to deploy than USB extension solutions.
AHD is useful when an operator needs immediate visual feedback. Typical examples include checking a conveyor blind spot, monitoring a vehicle rear area, viewing crop flow on agricultural machinery, watching a machine tool area, or confirming activity around a crane deck or washdown zone.
IP cameras are powerful when remote access, PoE networking, software management, and centralized recording are required. But in many harsh industrial sites, network configuration, switches, latency, and maintenance can add unnecessary complexity. AHD provides a simpler local video path from camera to monitor or DVR.
With an IP69K-rated housing and waterproof cable design, the camera system is suitable for applications exposed to rain, mud, dust, vibration, cleaning water, or harsh outdoor conditions. This makes it more practical than office-grade USB webcams or consumer camera setups for industrial monitoring.
AHD is mainly for live monitoring and operator viewing. If the project needs frame-accurate triggering, AI inference, object detection, image measurement, uncompressed image capture, or synchronized multi-camera vision, USB, GigE, MIPI, or global shutter machine vision cameras may be more suitable.
This AHD camera system is a good fit when the project needs:
This solution may not be the best fit if the project requires:
For AI vision, PC-based image capture, or embedded product integration, a USB camera module may be a better option. For motion analysis, barcode reading, high-speed capture, or trigger-based inspection, a global shutter USB camera may be more suitable.

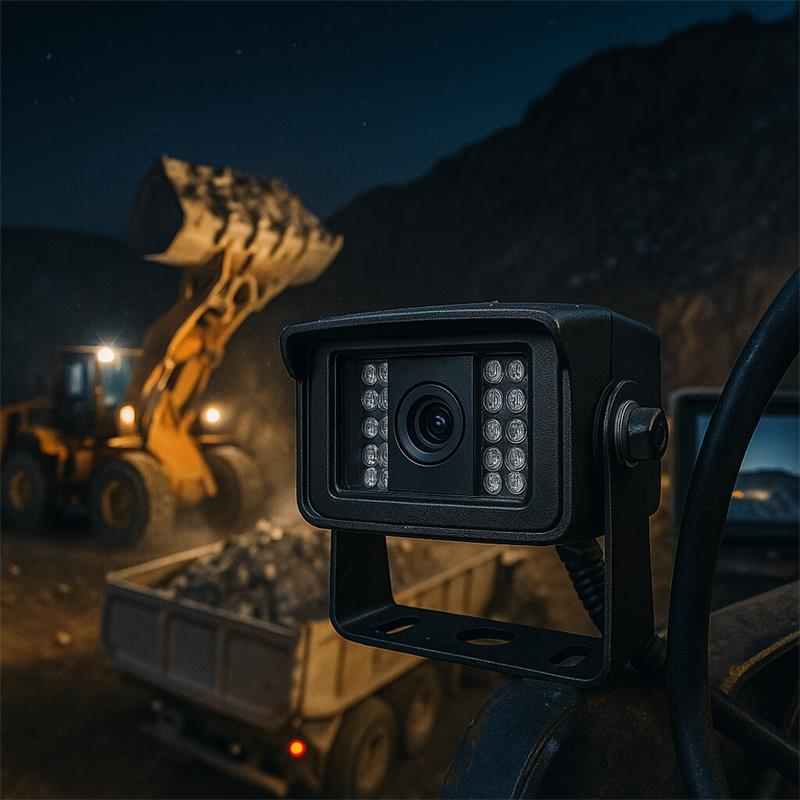

1. Heavy Machinery and Conveyor Monitoring
For factories, recycling plants, mining equipment, packaging lines, material handling systems, and heavy machinery, operators often need to see areas that are difficult, unsafe, or impossible to check directly.
A waterproof AHD camera system can provide real-time visual feedback from blind spots, conveyor transfer points, loading areas, moving machinery, and equipment rear zones. The main value is not AI detection or precision inspection. It is stable live video that helps operators confirm what is happening before stopping equipment, reversing a vehicle, moving a load, or restarting a machine.
2. Remote Field Sites and Energy Equipment
Remote energy sites, pumping stations, field equipment, mobile service units, and outdoor industrial facilities often need a simple visual monitoring system that does not depend on a complex IP network.
In these environments, the camera may face rain, mud, dust, vibration, low light, and long cable routing. A waterproof AHD camera system can provide local live video to a monitor or DVR, helping operators check equipment areas, vehicle blind spots, tank surroundings, loading points, or field machinery.
This solution is especially useful when the buyer wants a rugged camera and monitor system for local viewing rather than a network camera platform.
3. Agricultural and Off-Highway Vehicle Monitoring
Agricultural machinery, off-highway vehicles, harvesters, sprayers, loaders, and field equipment often operate in mud, rain, dust, vibration, and low-light conditions. Operators may need to see the rear area, implement position, crop flow, loading area, or blind spots around the vehicle.
A waterproof AHD camera and monitor kit is a practical choice when the equipment needs simple live video rather than AI recognition or network streaming. The camera can be mounted outside the vehicle, while the monitor gives the operator a direct view from the cabin or control area.
4. Food, Beverage, and Washdown Equipment Monitoring
Food processing lines, beverage equipment, packaging machines, cleaning zones, and washdown areas often require camera systems that can survive water, cleaning cycles, humidity, and frequent maintenance.
In these applications, the buyer may not need an AI camera or a high-cost machine vision system. They may only need a stable visual feed to check conveyor status, machine operation, product flow, cleaning areas, or operator safety zones.
A waterproof AHD camera system can be useful for local monitoring in washdown-style environments where simple wiring, sealed housing, and low-delay viewing are more important than network features.
This camera system is for visual monitoring. If the project requires food-contact certification, hygienic stainless-steel housing, specific chemical resistance, or regulated sanitary design, those requirements should be confirmed before quotation.
5. Marine, Port, and Deck Equipment Monitoring
Marine equipment, port machinery, deck cranes, service boats, loading areas, and dockside equipment often face moisture, salt air, vibration, low light, and blind viewing zones. Operators may need a reliable camera view for checking rear areas, deck activity, lifting zones, or equipment surroundings.
A waterproof AHD camera system is practical when the application requires a local monitor and rugged camera connection instead of an IP network camera system.
6, Harsh Industrial Areas With Dust, Moisture, or Chemical Cleaning
For chemical processing, recycling, waste handling, dusty production areas, and industrial cleaning zones, the main requirement is often not certified explosion-proof imaging. In many real projects, the buyer first needs a sealed camera system that can survive moisture, dust, cleaning water, vibration, and electrical noise.
A waterproof AHD camera system can be useful for visual monitoring in these harsh non-certified areas. It helps operators check equipment status, loading areas, cleaning zones, and restricted viewing points from a safer position.
This camera should not be described as an explosion-proof camera unless it is supplied with the required certified enclosure and documentation. For ATEX, IECEx, UL Class/Division, or other hazardous-location projects, certification requirements must be confirmed before selecting or quoting any camera system.
Product Snapshot: AC-606 Waterproof AHD Camera Kit
| Item | Description |
|---|---|
| Camera Type | Waterproof AHD camera system |
| Sensor | Sony low-light AHD sensor |
| Resolution | 1080P AHD video |
| Camera Housing | IP69K-rated metal housing |
| Monitor Option | 7-inch industrial monitor |
| Cable | Waterproof aviation cable for power and video |
| Main Function | Real-time live monitoring and operator viewing |
| Typical Use | Machinery, vehicles, washdown areas, marine equipment, remote industrial sites |
| Best For | Stable video, long cable distance, low-delay local display |
| Not For | AI machine vision, precision measurement, certified explosion-proof projects unless specially confirmed |
Choose AHD camera system if your project needs long cable distance, local monitor viewing, waterproof housing, and simple installation without network setup.
Choose USB camera module if your project needs direct connection to a PC, embedded host, AI box, industrial tablet, or edge computing device.
Choose IP camera if your project needs remote network access, PoE connection, centralized recording, browser viewing, or VMS integration.
Choose global shutter USB camera if your project needs motion capture, barcode reading, fast-moving object imaging, trigger control, or reduced rolling shutter distortion.
For many harsh industrial monitoring projects, AHD is not the most advanced camera type, but it may be the most practical one.
If you need a rugged camera and monitor kit for machinery, vehicles, washdown areas, marine equipment, or remote industrial monitoring, send us your project details.
To help us evaluate the right solution, please include:
Goobuy can help you determine whether an AHD camera system, USB camera, IP camera, or global shutter camera is the better fit for your project.
An AHD camera is better when the project needs low-delay local viewing, simple wiring, and less dependence on network setup. IP cameras are better when remote access, PoE networking, centralized recording, and software management are required.
Choose AHD when the camera must be installed far from the monitor, exposed to water or vibration, or used mainly for live operator viewing. USB cameras are better for embedded vision, AI processing, and direct PC-based image capture.
It can be suitable for washdown-style monitoring if the installation does not require special food-contact certification or sanitary-design certification. Buyers should confirm cleaning chemicals, cable sealing, connector type, housing material, and mounting method before selection.
No. This AHD camera system is mainly for real-time video monitoring. For measurement, object detection, trigger synchronization, barcode reading, AI inference, or high-speed image capture, USB, GigE, or global shutter machine vision cameras are usually more suitable.
Yes. AHD video can be displayed on a local monitor or connected to a DVR without IP network configuration. This is useful for vehicles, machinery, remote sites, and industrial areas where network setup is unreliable or unnecessary.
No. It should not be described as explosion-proof unless supplied with the required certified enclosure and documentation. For ATEX, IECEx, UL Class/Division, or other hazardous-location projects, certification requirements must be confirmed before quotation.
Please provide the application environment, camera mounting position, cable length, monitor requirement, voltage input, waterproof level, lighting condition, viewing angle, and whether the project needs live viewing only or DVR recording.
Goobuy can support project-based customization such as lens angle, cable length, connector type, bracket, housing design, monitor combination, labeling, and packaging, depending on quantity and technical feasibility.
AHD is often suitable for longer cable installations than USB camera systems. It is useful when the camera must be mounted away from the monitor on machinery, vehicles, outdoor equipment, or remote industrial structures.
This system is best for OEMs, equipment builders, industrial service providers, vehicle system integrators, marine equipment suppliers, and maintenance teams that need rugged live video monitoring rather than AI image processing.
