High-FPS AR0234 USB camera for clearer moving-object capture. Built for OEM hosts needing custom lens, cable, housing and sample configuration

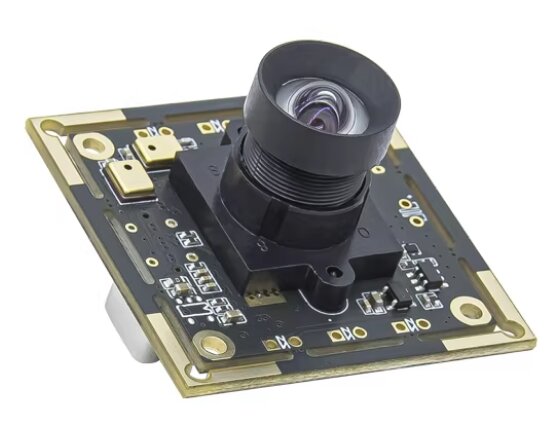

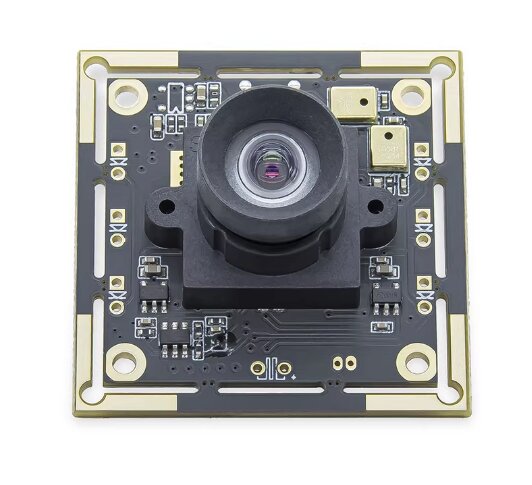

The AR0234 1920×1200@90fps USB2.0 camera module Goobuy UC-234 is a high-speed UVC camera board for OEM systems that need clearer moving-object capture, reduced rolling-shutter artifacts, and project-fit lens, cable, housing or interface customization based on an existing host platform
The AR0234 1920×1200@90fps USB2.0 camera module is a high-speed UVC camera board for OEM systems that need clearer moving-object capture, reduced rolling-shutter artifacts, and project-fit lens, cable, housing or interface customization based on an existing host platform.
This AR0234 USB2.0 camera module is designed for OEMs, industrial equipment manufacturers and system integrators that already have a host device, AI box, industrial PC, Linux computer, Android terminal or embedded system, but need a higher-speed camera input for moving-object capture, conveyor inspection, machine motion monitoring, industrial AI vision or equipment camera upgrade.
With 1920×1200 MJPG up to 90fps, 1280×720 MJPG up to 120fps, AR0234 global shutter image capture, USB2.0 UVC plug-and-play support and configurable lens, cable, connector, mounting and housing options, Goobuy helps customers select a practical project sample configuration instead of starting a long custom development cycle.
This product page is intended for customers who already have:
It is especially suitable if your current 30fps camera is too slow, your rolling-shutter camera creates motion distortion, or your existing camera cannot match your equipment structure.
This module is not positioned as an open-ended sensor research board. It is a configurable high-speed USB camera platform for practical OEM sample evaluation and system integration.
Many OEM devices still use standard 30fps USB cameras. These cameras may work for static viewing, but they often fail when the target is moving, the conveyor is running, the machine action is fast, or the AI system needs more usable frames for recognition.
This AR0234 USB2.0 camera module supports 1920×1200 MJPG video up to 90fps, giving industrial systems more frame samples per second than standard 30fps cameras. For moving parts, labels, parcels, fixtures, robotic workcells, inspection targets and fast mechanical actions, higher FPS can help the host capture more usable images during a short motion window.
If your current camera is too slow, produces unstable images of moving objects, or cannot provide enough usable frames for your inspection software, this 1200P 90fps USB2.0 camera module can be evaluated as a higher-speed image input for your existing host platform.
Global shutter is important, but most OEM buyers are not only buying a sensor feature. They are trying to solve a real image problem:
The AR0234 global shutter sensor helps reduce rolling-shutter artifacts when objects, conveyors or mechanical parts are moving. Combined with 90fps high-speed MJPG streaming, this module provides a practical image input option for OEM equipment that needs clearer motion frames without moving to a complex industrial camera platform.
This page is designed to answer search queries such as:
High frame rate gives the host more chances to capture usable frames, but final image clarity still depends on:
Global shutter helps reduce rolling-shutter artifacts such as skew, stretch and line-by-line distortion. However, motion blur is still affected by exposure and lighting. For high-speed industrial inspection, Goobuy recommends that customers share object speed, working distance, lighting condition and target image quality before selecting a sample.
Instead of asking customers to select only from a standard datasheet, Goobuy helps OEMs and system integrators choose a practical AR0234 USB2.0 camera sample configuration based on their existing host device, installation space and real image problem.
If your current camera is too slow, produces distorted images of moving objects, uses the wrong lens angle, has the wrong cable structure, cannot fit your equipment housing, or requires a better enclosed or waterproof structure, please send us your project background.
Our team can recommend a sample configuration based on our existing camera platform.
This AR0234 1920×1200@90fps USB camera module is recommended for:
It is especially suitable when your existing system needs a high-speed USB camera, high FPS UVC camera, camera for moving objects, USB camera for industrial AI vision, or custom USB camera module for system integrators.
Retail AR0234 USB camera boards may be suitable for quick experiments, but OEM buyers usually need more than a standard board.
Goobuy supports project-based configuration for customers who need:
This AR0234 90fps USB camera module is not positioned as the cheapest retail board. It is positioned as a configurable high-speed UVC camera module for mature OEM equipment and system-integration projects.
To help customers save evaluation time, this product is not the best fit for every project.
It is not primarily positioned for:
If your project already has a host platform, product structure, test schedule and estimated quantity, Goobuy can provide much more practical support.
The following parameters are provided for OEM engineers, product managers and system integrators during sample evaluation. For final project recommendation, please confirm the host platform, image format, lens requirement, cable length, housing structure and working environment with Goobuy.
| Item | Specification |
|---|---|
| Module Size | 38×38×24.5±0.5mm |
| Sensor | AR0234 1/2.6" CMOS |
| Sensor Package | CSP, bare die |
| Shutter Type | Global shutter |
| Maximum Resolution | 1920×1200 |
| Pixel Size | 3μm × 3μm |
| Interface | USB2.0 |
| Output Format | YUY2 / MJPG |
| High-Speed Mode | MJPG 1920×1200 up to 90fps |
| Other MJPG Modes | 1920×1080 90fps, 1600×1200 90fps, 1280×720 120fps, 640×480 120fps |
| YUY2 Note | High-resolution YUY2 frame rate is limited by USB2.0 bandwidth |
| Lens | M12 lens |
| Standard FOV | D=92° |
| TV Distortion | <1% |
| Focus | Fixed focus |
| Object Distance | 30cm to infinity, adjustable |
| S/N Ratio | 38dB |
| Dynamic Range | 71.4dB |
| AGC / AEC / White Balance | Auto |
| Power Supply | USB bus power |
| Supply Voltage | DC 5V±5% |
| Maximum Power Consumption | 1050mW |
| Operating Temperature | -20°C to 70°C |
| Stable Image Temperature | 0°C to 50°C |
| OS Support | Windows XP / Win7 / Win10, Vista, Android, macOS, Linux with UVC |
| Image Color | Color image |
| Custom Options | Lens, FOV, focus distance, cable, connector, housing, mounting, waterproof structure |
| Certifications | FCC / CE / RoHS |
To avoid misunderstanding during OEM evaluation, please note:
These boundaries help professional buyers select the right sample and avoid unnecessary development delays.
Why Choose This AR0234 90fps USB Camera Instead of Other Camera Options?
| Option | Typical Problem | Where This AR0234 USB Camera Fits |
|---|---|---|
| Standard 30fps webcam | Low FPS, rolling-shutter distortion, limited customization | Better for OEM systems needing higher FPS, global shutter capture and custom lens/cable/housing options |
| Generic USB camera board | Limited support for project-specific mechanical and optical changes | Goobuy supports project-fit sample configuration for existing host platforms |
| Traditional industrial camera | Higher cost, SDK integration, longer setup time | Better for customers needing UVC plug-and-play and faster sample evaluation |
| Sensor evaluation board | Too much R&D work, not project-ready | Better for OEMs with existing systems and real installation requirements |
| USB3.0 camera | Higher bandwidth, but may require different host, cable and system design | This USB2.0 module fits customers who need USB2.0 UVC integration and MJPG high-FPS streaming |
This AR0234 camera is not positioned as the cheapest board camera or the most complex industrial camera. It is positioned as a configurable high-speed UVC camera module for mature OEM equipment and system-integration projects.
Goobuy supports project-based camera configuration for OEMs and system integrators who need a practical sample for evaluation.
Available customization directions include:
Please send your actual host platform and installation requirements before sample selection. This helps us recommend a more suitable configuration and avoid unnecessary back-and-forth discussion.
If your existing system needs a higher-speed USB camera for moving-object capture, conveyor inspection, industrial AI vision, machine motion monitoring or OEM equipment upgrade, please send us your project background.
Tell us your:
Goobuy will recommend a practical AR0234 USB2.0 1920×1200@90fps camera sample configuration based on our existing platform, helping you reduce unnecessary R&D discussion and move faster toward real project testing.
Yes, if your host supports standard UVC USB cameras. This AR0234 module can be evaluated as a higher-speed replacement when your current 30fps camera cannot capture enough usable frames from moving objects, conveyor targets, moving labels or fast machine actions.
Please send your host platform, operating system, current camera issue, target resolution/FPS, lens angle, cable length and mechanical space so Goobuy can recommend a suitable sample configuration.
Yes. The 1920×1200@90fps mode is available through MJPG streaming. For high-resolution uncompressed YUY2, USB2.0 bandwidth is limited.
If your software requires YUY2, MJPG, a specific frame rate, or a specific video format for your AI inspection system, industrial PC or embedded host, please confirm it with Goobuy before sample selection.
The high-frame-rate 90fps mode is mainly based on MJPG compression. This is important because USB2.0 bandwidth cannot support high-resolution uncompressed video at the same frame rate.
For many moving-object capture, preview, inspection and edge AI evaluation tasks, MJPG may be acceptable. If your application requires uncompressed image data, raw output or strict image-processing requirements, please tell us before sample selection so we can evaluate whether another platform is more suitable.
Yes. The combination of 1920×1200@90fps MJPG streaming and AR0234 global shutter capture makes it suitable for many moving-object inspection tasks, including conveyor targets, parcels, labels, moving parts, machine actions and industrial AI image input.
Final performance depends on object speed, lighting, exposure setting, lens selection, working distance and host processing capability. For accurate recommendation, please share your real application conditions.
No. Global shutter helps reduce rolling-shutter artifacts such as skew, stretch and image distortion caused by line-by-line exposure. However, motion blur is also affected by exposure time, lighting, lens aperture, object speed and host settings.
For fast-moving objects, customers should provide the motion speed, lighting condition, working distance and required image clarity so Goobuy can help evaluate the right lens and exposure direction.
The standard module is an open board camera. For enclosed equipment or waterproof applications, Goobuy can evaluate housing, cable exit, sealing structure, lens window, mounting method and environmental protection requirements based on your project.
Please send your target IP rating, installation space, cable routing direction, indoor or outdoor condition and expected quantity. We can then evaluate whether a waterproof or enclosed configuration is practical.
This product page focuses on USB2.0 UVC high-frame-rate MJPG streaming for existing host platforms. Hardware trigger, raw output or strict multi-camera synchronization should not be assumed as default functions.
If your project requires external trigger, frame-level synchronization or multiple cameras working together, please send your technical requirement first. Goobuy will evaluate whether this platform is suitable or whether another camera platform should be considered.
A retail AR0234 camera board may be useful for quick experiments, but OEM and system-integration projects usually need more than a standard board. They often require the right lens, cable length, connector direction, mounting method, housing structure, environmental protection and stable supply.
Goobuy helps OEM customers select a project-fit sample configuration based on their existing host and real installation conditions. This makes the module more suitable for equipment integration, small-batch validation and production planning.
Yes. For qualified OEM or system-integration projects, Goobuy can recommend a sample configuration based on your host platform, current camera problem, lens requirement, cable path, mounting space, housing requirement and estimated quantity.
This helps reduce unnecessary trial-and-error and allows your team to test a more realistic camera configuration from the beginning.
