Industrial USB3 vision for moving products, workstations and body-motion systems. Supports 1080P60, YUY2/MJPEG, wide-angle lens, metal housing and OEM customization.
This AR0234 USB3.0 global shutter industrial camera is a metal-housed 1080P60 color USB camera designed for conveyor belt inspection, packaging line image capture, industrial workstation monitoring, tool recording and controlled fitness or rehabilitation motion analysis where ordinary rolling-shutter webcams may create blur, unstable mounting or unreliable image output.
AR0234 USB3.0 Global Shutter Industrial Camera
Metal-Housed 1080P60 USB3 Camera for Conveyor Inspection, Workstation Monitoring and Fitness Motion Analysis

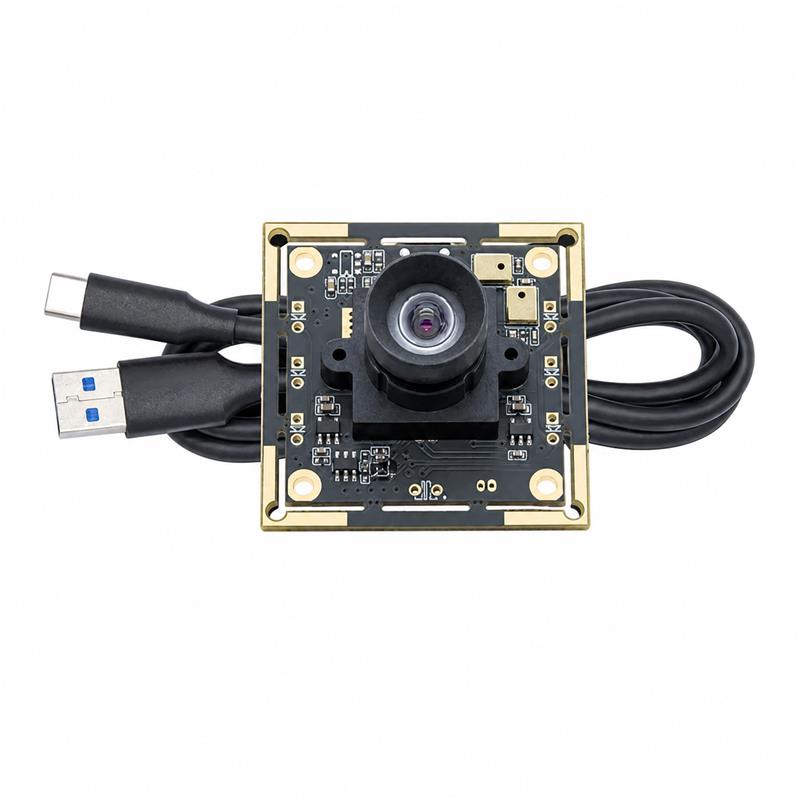

The Goobuy AR0234 USB3.0 camera is a 2MP color global shutter industrial USB camera based on the ON Semiconductor AR0234 image sensor. It supports 1920×1080 at 60fps and up to 1280×720 at 100fps, giving equipment builders a practical balance between image clarity, motion performance, bandwidth efficiency and integration cost.
Unlike general rolling-shutter webcams, this camera captures moving scenes with reduced motion distortion. It is especially suitable for applications where products, hands, tools or human body movements need to be recorded more clearly than with ordinary USB webcams.
The camera supports USB3.0 Type-C output, YUY2 and MJPEG video formats, and UVC-based integration for Windows, Linux, Android and other embedded host platforms. For OEM and system integrator projects, Goobuy can supply the product as a bare board module or as a compact metal-housed industrial USB camera with customized lens, cable, IR filter and mounting options.
This camera is best suited for customers who need:
This AR0234 USB3.0 global shutter camera is suitable for equipment builders and vision integrators who need to capture moving products on conveyor belts, packaging lines or small automated inspection machines.
It can be used for:
If your current webcam or low-cost USB camera creates blur when products move across the field of view, a color global shutter camera can provide cleaner frames for software inspection, visual review or image capture.
The USB3.0 interface and YUY2 output make this camera useful for OpenCV-based inspection software, custom machine vision applications and industrial PC platforms.
This camera is mainly designed for continuous video capture and software-based frame extraction. If your project requires precise hardware trigger, strobe synchronization, GPIO input/output or GenICam workflow, please contact us to evaluate whether this model or another camera is more suitable.
Final recognition performance for barcode, OCR or printed mark capture depends on:
For assembly stations, repair benches, test fixtures and manual inspection workstations, this camera provides wide-angle visual coverage and stable USB output for recording, traceability and process monitoring.
It can be used for:
Many workstation monitoring projects fail because ordinary webcams are difficult to mount, have narrow field of view, plastic housings, unstable image quality or inconsistent mechanical structure.
The metal-housed AR0234 USB3.0 camera gives system integrators a more practical component for fixed workstation installation. The 110° low-distortion lens can help cover hands, tools and work areas from a short mounting distance.
For remote support or training station applications, optional audio capture can be discussed. If audio is not required due to privacy or compliance reasons, a no-microphone configuration can also be evaluated.
This AR0234 USB3.0 camera is not positioned for high-speed golf swing or baseball pitch analysis. For those applications, higher frame rate cameras may be more suitable.
Instead, this camera is better suited for controlled body-movement capture in fitness equipment, rehabilitation systems and indoor training platforms.
It can be used for:
For controlled human movement, customers often need a wide field of view, stable 1080P60 video and reduced motion distortion rather than extreme frame rate.
The AR0234 USB3.0 camera offers a practical balance between:
This camera is supplied as an imaging component for rehabilitation equipment, fitness systems and motion-analysis platforms. It is not a certified medical device by itself.
For clinical, medical or regulated use, customers are responsible for system-level certification, software validation, data privacy compliance and final product approval.
Recommended Configuration by Application
| Application | Recommended Lens | Housing | Output Format | Recommended Use |
|---|---|---|---|---|
| Conveyor belt image capture | 80° or customized lens | Metal housing | YUY2 / MJPEG | Moving product capture, software inspection, packaging line monitoring |
| Packaging line monitoring | 80° / 110° depending on distance | Metal housing | YUY2 | Label, orientation, date code and visual review |
| Workstation monitoring | 110° low-distortion | Metal housing | MJPEG / YUY2 | Assembly station, tool monitoring, repair bench recording |
| Test bench imaging | 80° / 110° | Metal housing | YUY2 / MJPEG | Equipment testing, process recording, visual documentation |
| Fitness motion analysis | 110° low-distortion | Metal or board module | MJPEG / YUY2 | Full-body movement capture and indoor training systems |
| Rehabilitation motion capture | 110° or customized | Metal or board module | MJPEG / YUY2 | Gait, posture and controlled movement observation |
The AR0234 sensor uses a global shutter architecture, helping reduce motion distortion when objects, tools, hands or body movements are moving inside the camera view.
Compared with rolling-shutter webcams, this camera can provide cleaner frame data for:
For customers building software-based inspection or visual recording systems, global shutter imaging can make captured frames easier to analyze, review and process.
This camera supports:
This dual-mode design allows customers to choose between image detail and motion speed depending on the application.
For example:
The USB3.0 interface provides higher bandwidth than USB2.0 and is suitable for applications that require stable full HD video output.
The camera supports:
The camera-side Type-C interface also provides a modern and convenient connection method. For fixed industrial installations, Goobuy can discuss cable securing, strain relief, customized cable outlet direction or housing-level cable fixation.
The standard 110° low-distortion lens option helps cover a wider working area than many standard webcams.
It is useful for:
For conveyor inspection or OCR image capture, a narrower lens such as 80° or other customized lens options may be more suitable depending on working distance, product size, lighting and recognition requirements.
Goobuy can help evaluate lens angle, focus distance and IR filter options based on your project.
For customers who do not want to design their own enclosure, Goobuy can provide the AR0234 USB3.0 camera as a compact metal-housed industrial USB camera.
The metal housing version is more suitable for:
Compared with a bare board camera module, the metal-housed version can reduce mechanical integration time and make sample testing easier on real equipment.
Available customization may include:
With maximum power consumption around 700mW, the camera is suitable for compact industrial systems, test benches, embedded hosts, fitness equipment and workstation monitoring devices where heat and power budget matter.
For continuous operation projects, final performance depends on:
Goobuy can support sample testing and configuration evaluation before batch production.
Technical Specifications
| Item | Specification |
|---|---|
| Sensor | ON Semiconductor AR0234 |
| Shutter Type | Color global shutter |
| Resolution | 2MP, 1920×1080 |
| Sensor Size | 1/2.6 inch |
| Pixel Size | 3.0μm |
| Max Frame Rate | 1920×1080@60fps, 1280×720@100fps, 640×480@100fps |
| Interface | USB3.0 |
| Camera-Side Connector | Type-C |
| Output Format | YUY2 / MJPEG |
| Lens Option | 110° low-distortion standard; 80° and other lenses optional |
| Focus | Fixed focus |
| Working Distance | 30cm to infinity, depending on lens and focus setting |
| Power Supply | USB bus power |
| Max Power Consumption | Around 700mW |
| Audio | Optional dual digital microphone configuration |
| Compatibility | UVC-based support for Windows, Linux, Android and selected embedded platforms |
| Housing | Bare board module or optional compact metal housing |
| Customization | Lens, cable, housing, IR filter, mounting, microphone option, OEM labeling |
This AR0234 USB3.0 camera is designed as a UVC-compatible USB camera module for easier software integration.
It can be tested with common tools and platforms such as:
The camera supports YUY2 and MJPEG output. YUY2 is useful for customers who need less-compressed frame data for OpenCV, machine vision processing or software-based inspection. MJPEG can be useful for monitoring, recording or bandwidth-saving applications.
Final compatibility depends on host USB bandwidth, operating system, software framework, cable length and selected resolution/frame rate.
For industrial installation, Goobuy can provide a metal-housed version to help customers reduce mechanical design work during sample testing and batch integration.
Possible options include:
For workstation monitoring, test bench imaging and packaging machine installation, the metal housing version is usually recommended over the bare board version.
For embedded OEM devices where the customer already has an internal mechanical design, the bare board module may be more suitable.
To help customers choose the right camera, we also clearly define where this model may not be the best fit.
This camera is not our main recommendation for:
If your application has one of these requirements, please contact Goobuy to evaluate whether this model can be customized or whether another camera model is more suitable.
Many equipment builders, system integrators and product managers start with consumer webcams because they are affordable and easy to test. But once the project moves from prototype to real deployment, common problems appear:
Goobuy’s AR0234 USB3.0 global shutter camera is designed to solve these deployment-stage problems with color global shutter imaging, USB3.0 high-speed output, YUY2/MJPEG support, a 110° low-distortion lens option and a compact metal housing for ready-to-install industrial use.
This camera is not positioned as a high-end hardware-triggered machine vision camera to replace Basler, FLIR or other advanced industrial cameras. It is a cost-effective global shutter USB imaging component for continuous video capture, software-based inspection, workstation recording and controlled motion analysis systems
To recommend the right AR0234 USB3.0 camera configuration, please tell us:
This information helps us recommend the right lens, housing, cable and output configuration before you begin testing.
Shenzhen Novel Electronics Limited provides compact USB camera modules and customized embedded vision solutions for OEM customers, equipment builders and industrial system integrators.
For this AR0234 USB3.0 global shutter camera project, we can support:
We help customers move from sample testing to practical project integration with a camera configuration that matches the real application environment.
