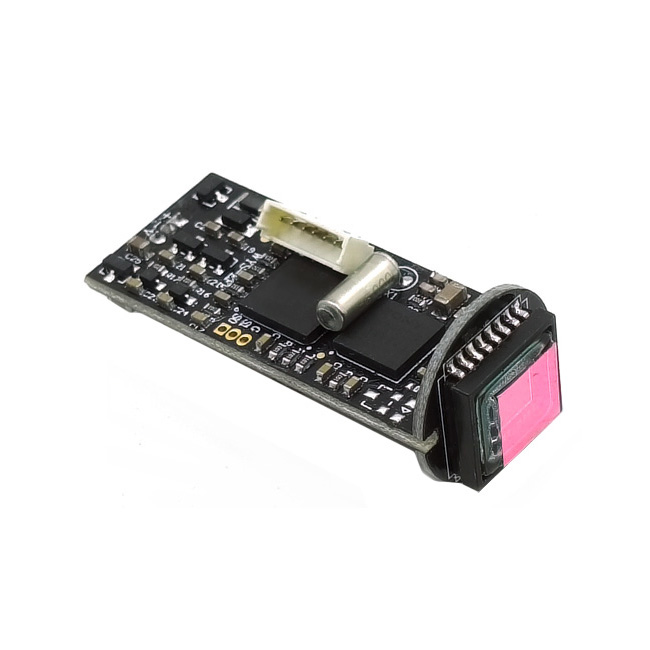

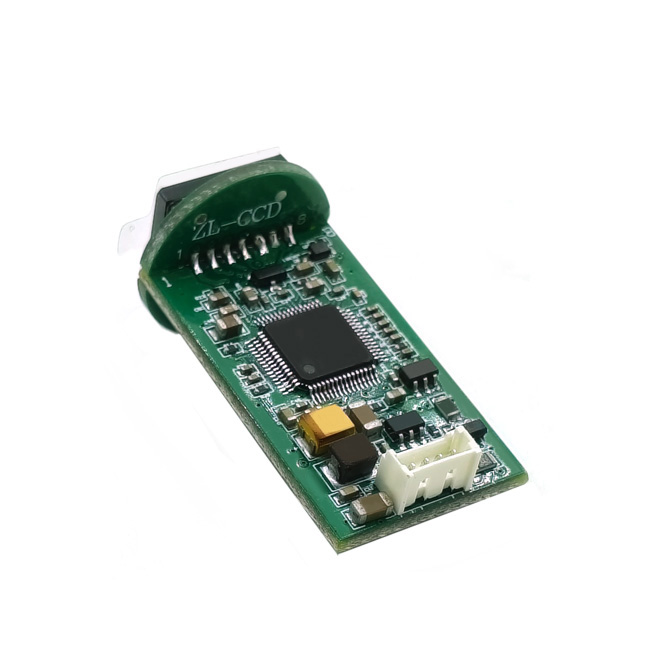

A 700TVL CCD CVBS camera module is a compact analog video board for legacy ATM, kiosk, industrial monitoring, and old DVR systems that still require PAL/NTSC CVBS output, BNC connection, DC12V power, low-light CCD imaging, and real-time analog video replacement without redesigning the full system architecture
A 700TVL CCD CVBS camera module is a compact analog video camera board designed for legacy systems that still use PAL/NTSC CVBS output, BNC video input, DC12V power, and real-time low-latency analog monitoring. It is not intended to replace modern USB, IP, AHD, or HD digital cameras. It is mainly useful for ATM camera replacement, kiosk video modules, industrial analog camera replacement, low-light analog video monitoring, and old DVR-based systems.
Many industrial and commercial devices are still running on analog video architecture. Some ATM systems, kiosk terminals, factory machines, old DVR systems, inspection devices, and embedded monitoring equipment were originally designed around CVBS video, BNC connectors, PAL/NTSC format, and 12V power.
For these projects, upgrading the whole system to USB, IP, AHD, or HDMI may not be necessary or cost-effective. A compact CCD CVBS camera module can help maintain or replace the original analog camera without redesigning the full video system.
| Your Existing System | Fit Level | Why |
|---|---|---|
| Existing CVBS analog video input | Strong fit | The module outputs standard analog video. |
| BNC video connection | Strong fit | Suitable for traditional DVR, monitor, and analog equipment. |
| DC12V camera power | Strong fit | Common in legacy surveillance and industrial systems. |
| PAL / NTSC video format requirement | Strong fit | Suitable for different old regional video standards. |
| Low-light analog monitoring | Strong fit | CCD sensors can still be useful in low-light legacy systems. |
| USB camera replacement | Weak fit | USB requires a different host architecture. |
| IP camera or ONVIF system | Weak fit | Network cameras require Ethernet, firmware, and IP integration. |
| AHD / HD analog upgrade | Weak fit | AHD uses a different analog HD video format. |
| AI vision or high-resolution recognition | Not fit | This is a standard-definition analog camera module. |
| Parameter | Specification |
| Camera Type | CCD CVBS analog camera module |
| Sensor Type | CCD |
| Sensor Size | 1/3 inch |
| Effective Pixels | Approx. 0.7MP / 700,000 pixels |
| Analog Resolution | 700TVL |
| Video Output | CVBS analog signal |
| Video Format | PAL / NTSC |
| Frame Output | 1020×596 @ 50fps |
| Operating Voltage | DC12V |
| Interface | BNC |
| White Balance | Automatic |
| Audio | Not supported |
| Power Consumption | Approx. 0.25W |
| Board Size Option 1 | Approx. 18×42mm |
| Board Size Option 2 | Approx. 18×36.5mm |
| Operating Temperature | Below 70°C |
| Optional Function | OSD adjustable menu and automatic gain control, depending on version |
| Adjustable Image Items | Gain, brightness, exposure, white balance, depending on version |
| Lens | Customizable, depending on project requirement |
| Typical Use | ATM, kiosk, old DVR, industrial analog monitoring, low-light CVBS video replacement |
Many older devices were designed around CVBS analog video input. If the host board, DVR, monitor, or embedded video system still uses CVBS, replacing only the camera module is often easier than redesigning the full device.
This is especially relevant for:
A large number of legacy monitoring systems already use BNC video cable and DC12V camera power. A BNC CVBS camera module can be easier to integrate into these systems than a USB or IP camera.
For a maintenance company or OEM replacement project, this can reduce wiring changes, host redesign, software work, and installation cost.
Modern CMOS sensors are widely used in new camera systems. However, CCD camera modules still have value in certain low-light analog video applications because many legacy customers trust CCD for stable analog image output, lower noise impression, and consistent real-time video.
For low-light analog video camera module applications, a CCD CVBS camera can still be a practical replacement option.
A 700TVL CCD CVBS camera module is not designed for high-definition recording, AI recognition, or digital video analytics. Its value is compatibility.
If the system only needs real-time analog observation, equipment status monitoring, ATM/kiosk internal video, or old DVR video input, 700TVL may be sufficient.
The key question is not:
“Is this camera HD?”
The real question is:
“Does our legacy system still require stable CVBS video without redesigning the full architecture?”
For some ATM, kiosk, and industrial equipment environments, lighting can change during operation. A CCD camera module with OSD adjustable menu and automatic gain control can help tune the image for different light conditions.
Depending on version, the OSD menu may support adjustment of:
This can be useful when the analog camera is installed inside a machine, cabinet, terminal, kiosk, or industrial enclosure where lighting is not always stable.
This type of 700TVL CCD CVBS camera module is best suited for small, practical replacement projects rather than new high-resolution camera platforms.
Recommended applications include:
This product type is not suitable for:
If your system requires HD video, network streaming, USB plug-and-play, or AI image processing, a modern USB, IP, AHD, or digital camera module will be a better choice.
Before selecting a replacement camera module, buyers should confirm:
A 700TVL CCD CVBS camera module is not a modern HD camera. Its value is in helping legacy systems continue working with familiar analog video architecture.
For ATM, kiosk, industrial monitoring, low-light analog video, and old DVR replacement projects, a compact CCD CVBS camera board with 1/3 inch CCD sensor, 700TVL resolution, CVBS output, PAL/NTSC format, BNC interface, DC12V power, and optional OSD auto gain control can be a practical solution when the customer wants to avoid redesigning the full system.
If your existing device still depends on CVBS/BNC/PAL/NTSC analog video, this type of module may be a better fit than forcing the system into USB, IP, or HD digital architecture.
