Built for OEM skin imaging systems, this module captures detailed 50MP facial data for AI analysis, with UVC integration, custom lenses, and sample-based evaluation support
Goobuy UC-766 is a 50MP Sony IMX766 USB autofocus camera module for OEM AI skin analysis devices. It is optimized for 1080p live preview plus high-resolution 50MP still image capture, with customizable lens, cable, filter and firmware options for beauty skin analyzers, facial imaging terminals and aesthetic before/after photo systems.

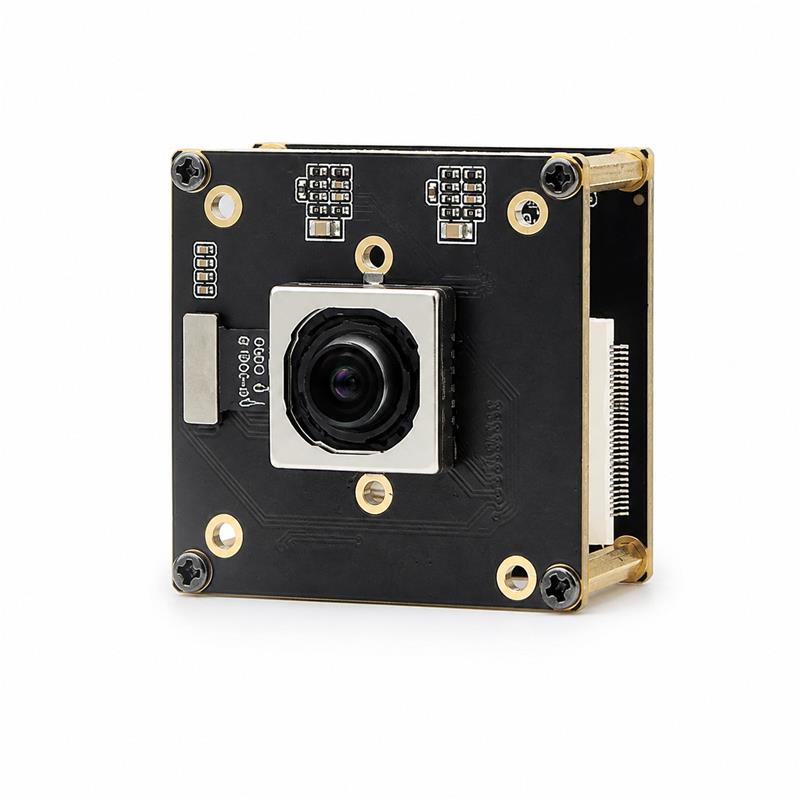

The Goobuy IMX766 USB camera module UC-766 is a 50MP autofocus image-capture module designed for OEM AI skin analysis devices, beauty skin analyzers, facial imaging terminals and aesthetic before/after photo systems.
Built around the Sony IMX766 image sensor, this module is suitable for devices that need high-resolution facial images, skin texture visibility, pore-level cropped views, controlled-light imaging and host-side AI analysis.
It is not a finished skin analyzer, not a diagnostic device, not a medical camera, and not a standalone AI system. It is a camera module for OEM integration.
Sony IMX766 50MP USB Camera Module for AI Skin Analysis Devices
50MP Autofocus Image Capture Module for Beauty Skin Analyzers, Aesthetic Imaging Terminals and AI Skin Assessment Systems
The IMX766 USB camera module is designed for one focused application:
AI skin analysis and aesthetic skin imaging equipment.
Typical OEM systems include:
The camera module provides image capture. The OEM system provides lighting, AI software, user interface, image analysis, reporting, enclosure design and final product positioning.
This module is not:
Goobuy supplies the image-capture module. The OEM defines the final device, software, user claims, lighting system, AI model and customer workflow.
AI skin analysis devices often need more than a normal webcam image. The system may need to zoom into facial regions, compare local skin areas, crop pore-level details, or store high-resolution before/after images.
The IMX766 camera module captures up to 8160 × 6120 resolution, giving the host system more image data for:
The recommended workflow is:
1080p live preview for positioning → focus and exposure lock → controlled-light capture → 50MP still image for host-side analysis.
This is more realistic than trying to stream continuous 50MP video.
Many skin analysis devices use controlled lighting instead of ordinary room light. White LEDs, polarized light, side light and UV-style illumination can all change how skin texture, oil shine, spots and surface reflection appear.
The Sony IMX766 uses a large 1/1.56" sensor format. Compared with small-format USB camera modules, the larger sensor area gives the system more usable image data under controlled illumination.
This is useful for:
Final image performance depends on the complete system, including lens, lighting, exposure, white balance, calibration, compression and host-side image processing.
Skin imaging devices may need to capture a full face, half face, cheek area, forehead area or close-up skin region. A fixed-focus camera may not cover all these working distances well.
The IMX766 module supports autofocus, helping the host system capture clearer images when the working distance changes.
For OEM products that need repeatable geometry, Goobuy can discuss:
Actual autofocus performance depends on the lens actuator, firmware, lighting and target working distance. Evaluation samples should be tested inside the buyer’s real device structure.
The module supports USB UVC-style integration, allowing the host system to access the camera through standard video interfaces.
This is useful for OEM developers using:
Depending on firmware configuration, the host system may control preview, still capture, exposure, gain, white balance, sharpness and focus behavior.
The IMX766 module is best used in a preview-plus-still workflow.
| Stage | Camera Mode | Purpose |
|---|---|---|
| Live alignment | 1080p preview | Face positioning and framing |
| Focus | Autofocus or host-controlled focus | Clear image before capture |
| Exposure setup | Auto or locked exposure | Stable brightness for repeatable imaging |
| Lighting | OEM-controlled LEDs or light source | White light, polarized light or other setup |
| Still capture | 50MP image | High-resolution skin image |
| AI processing | Host system | Texture, pores, spots, tone and region analysis |
| Report | OEM software | Display, store or compare results |
This workflow is suitable for AI skin analysis devices where image detail matters more than high-frame-rate video.
For continuous high-resolution video, a USB 3.x camera architecture should be evaluated instead.
Original Image Evidence for AI Skin Analysis
riginal close-up image captured by the Goobuy IMX766 50MP USB camera module, showing eye-area skin texture, pores, eyebrow detail and reflection clarity for AI skin analysis device evaluation
Original close-up sample captured with the Goobuy IMX766 50MP USB camera module. No beauty filter or skin smoothing is applied, allowing OEM buyers to evaluate real skin texture, pore visibility, eyebrow detail and image clarity.
AI skin analysis systems may require different image output behavior depending on the algorithm.
Goobuy can discuss firmware configuration for:
For AI model input, many OEMs prefer stable, repeatable images instead of visually over-enhanced images. If your algorithm is sensitive to sharpening, denoise, compression or auto white balance, please request a sample configuration with controlled image parameters.
Recommended evaluation questions:
| Question | Why It Matters |
|---|---|
| Can exposure be locked? | Helps repeatable before/after capture |
| Can white balance be locked? | Helps color consistency |
| Can focus be locked after alignment? | Helps reduce capture variation |
| Can sharpness be adjusted? | Avoids artificial texture exaggeration |
| Can denoise be reduced? | Preserves fine skin texture |
| Can compression quality be controlled? | Reduces artifacts in AI input |
| Can original full-resolution images be provided? | Allows real algorithm evaluation |
Different AI skin analysis devices need different camera-lens configurations.
| Version | Best For | Typical Imaging Goal | Lens Direction |
|---|---|---|---|
| Full-face version | Desktop skin analyzer / consultation terminal | Whole-face image, before/after record, region cropping | Medium-wide FOV, low distortion |
| Half-face version | Aesthetic treatment area imaging | Cheek, forehead, eye-area or jawline region | Moderate FOV, balanced distortion |
| Close-up version | Pore, texture, spot or scalp analysis | Smaller local area with more visible detail | Narrower FOV or macro-oriented optics |
| Multi-light version | White light + polarized light systems | Consistent capture under different illumination | Lens/filter stack matched to lighting |
The final lens should be selected based on:
For full-face beauty skin analyzers, the OEM should test edge distortion and face shape consistency. For close-up skin capture, the OEM should test focus range, texture visibility and depth of field.
The camera module can be evaluated with different lighting systems designed by the OEM.
| Lighting Type | What It May Help Show |
|---|---|
| White light | General skin tone, texture and facial image |
| Polarized light | Reduced glare and surface reflection |
| Side light | Fine surface relief, wrinkles and uneven texture |
| UV-style or near-UV illumination | Fluorescence-style visual effect, depending on optical design |
| Multi-angle light | Texture contrast and surface shape visibility |
Core Specifications
| Parameter | Specification |
|---|---|
| Sensor | Sony IMX766 |
| Resolution | 50MP, 8160 × 6120 |
| Sensor format | 1/1.56 inch |
| Autofocus | Supported, configuration-dependent |
| Shutter | Rolling shutter |
| Interface | USB 2.0 High-Speed |
| Driver | UVC-style driverless integration |
| Typical preview | 1080p live preview for positioning |
| Full-resolution capture | Triggered still image / low-fps capture, depending on firmware and host |
| Lens | Custom FOV and working distance available |
| Optical options | Low-distortion lens, IR-cut filter, no-IR filter, customer-defined filter options |
| Cable | Standard or custom length |
| Connector | USB-A, USB-C or other OEM options |
| Host system | Windows, Linux or embedded platform after validation |
| Target application | AI skin analysis and aesthetic skin imaging devices |
Actual performance depends on lighting, lens, exposure time, firmware, compression, cable length, USB host controller and software configuration.
USB 2.0 Reality: What It Can and Cannot Do
The IMX766 USB2.0 module should be understood correctly.
| Function | Suitable? | Notes |
|---|---|---|
| 1080p live preview | Yes | Suitable for positioning and framing |
| 50MP still capture | Yes | Suitable for triggered high-resolution image capture |
| Continuous 50MP high-frame-rate video | No | USB 3.x architecture should be considered |
| AI skin image dataset capture | Yes | If still-image workflow is acceptable |
| Real-time high-speed machine vision | No | Not the intended application |
The correct architecture is:
Live preview first, high-resolution still image second, host-side AI analysis third.
This is why the module can be useful in a skin analysis device even though it uses USB 2.0.
What Makes It Different from a Normal Webcam
A normal webcam is designed for video calls. The IMX766 USB module is designed for OEM devices that need high-resolution still image data.
| Normal Webcam | Goobuy IMX766 USB Module |
|---|---|
| Usually 2MP–8MP | Up to 50MP still capture |
| Video-first design | Preview + high-resolution still capture |
| Consumer lens | OEM lens customization |
| Limited detail for cropping | Better detail for skin-region crops |
| Consumer software use | OEM host software integration |
| Uncontrolled image style | Firmware tuning can be discussed |
| General-purpose imaging | AI skin analysis device integration |
Why Not Just Use a Smartphone Camera?
Smartphone cameras can produce excellent images, but they are not always practical for OEM skin analysis equipment.
| Smartphone Camera System | IMX766 USB Camera Module |
|---|---|
| Closed hardware and software ecosystem | OEM integration into your own device |
| Image processing often hidden or changing | Camera behavior can be discussed at module level |
| Difficult to mount inside a fixed terminal | Designed for embedded mechanical integration |
| Long-term model consistency is difficult | Project-based supply and customization can be discussed |
| Not easy to match custom lighting chambers | Lens, filter and cable can be configured for the device |
| Consumer photography priority | AI skin image capture priority |
For OEM skin analysis products, the goal is not only to take a beautiful photo. The goal is to capture consistent image data under a controlled device workflow.
OEM Customization Options
Goobuy can customize this module for qualified AI skin analysis projects.
| Custom Area | Options |
|---|---|
| Lens | FOV, working distance, distortion level |
| Cable | Length, shielding, connector direction |
| Connector | USB-A, USB-C, Micro-USB, locking connector |
| Filter | IR-cut, no IR-cut, custom optical filter |
| Firmware | Exposure, gain, white balance, sharpness, focus behavior |
| Mechanical | PCB outline, mounting holes, bracket support |
| Image tuning | Color style, brightness behavior, default controls |
| Private label | OEM supply available |
| Sample support | Image sample pack, basic test data, mechanical reference |
For the fastest evaluation, please provide your target working distance, required FOV, lighting method, host platform, enclosure size and estimated annual volume.
To help OEM engineers evaluate the IMX766 camera module, Goobuy can prepare an AI skin imaging evaluation package.
Product name: Goobuy IMX766 USB Camera Module
Sensor: Sony IMX766
Resolution: 50MP, 8160 × 6120
Interface: USB 2.0 UVC
Main workflow: 1080p live preview plus triggered 50MP still capture
Primary application: AI skin analysis devices and aesthetic skin imaging terminals
Supplier: Shenzhen Novel Electronics Limited / Goobuy
Product type: OEM camera module, image-capture component
Goobuy IMX766 is a 50MP Sony IMX766 USB autofocus camera module for OEM AI skin analysis devices. It supports 1080p live preview and high-resolution still capture for beauty skin analyzers, facial imaging terminals, skin texture inspection, pore visibility, controlled-light imaging and aesthetic before/after photo systems. The module is designed for OEM integration and does not include AI software, diagnosis functions or finished-device hardware.
For the fastest technical response, please send your project information in this format:
“We are developing an AI skin analysis device / beauty skin analyzer. We need a 50MP USB camera module for 1080p live preview and high-resolution still image capture. Our working distance is ___ cm, target FOV is ___ degrees, lighting includes ___, host platform is ___, and expected annual volume is ___ units. Please recommend the IMX766 lens, cable, filter and firmware configuration, and provide original 50MP sample images with 100% crops.”
No. The IMX766 USB camera module is not a medical diagnostic camera and not a finished medical device. It is a high-resolution image-capture component for OEM AI skin analysis and aesthetic imaging equipment.
Yes. It can provide high-resolution image input for AI skin analysis systems. The OEM develops the AI software, skin feature model, report interface and final device workflow.
Yes, for triggered still image capture. The correct workflow is 1080p live preview for positioning and 50MP still capture for analysis. It is not designed for continuous 50MP high-frame-rate video.
The 50MP resolution gives the host system more detail for cropped skin regions. Actual pore and texture visibility depends on lens, focus, lighting, exposure, compression and image processing.
The module can be evaluated with original image samples and controlled image settings. If your AI model requires low enhancement, locked white balance or reduced sharpening, please request a suitable sample configuration.
Camera-control behavior depends on firmware and host software. For repeatable before/after capture, OEM buyers should request exposure, gain, white balance and focus-control testing during sample evaluation.
Yes. Lens FOV, working distance, distortion level and focus range can be customized according to the target device structure.
Yes, it can be evaluated with customer-defined lighting systems, including white light, polarized light, side light or other controlled illumination. Final image quality depends on the full optical design.
No. Goobuy supplies the camera module. The OEM provides AI software, user interface, algorithm, lighting control and final product design.
Buyers should request original 50MP full-resolution images, 100% crops, controlled-light samples, color reference samples and capture metadata. This is the best way to evaluate whether the module fits an AI skin analysis device.
No. For continuous high-resolution video, USB 3.x or another high-bandwidth architecture should be considered. This module is better suited for preview-plus-still workflows.
Please provide target device type, working distance, required FOV, lighting method, host platform, enclosure size, preferred connector, expected annual quantity and whether your AI model requires locked image parameters.
