Goobuy UC-533 is a compact IP67 USB UVC camera for outdoor kiosks, equipment cabinets, Android terminals and wet-side equipment where the camera must operate at an exposed viewing point while the host remains protected inside the enclosure. It provides a sealed external camera head, direct USB video output and configurable lens, cable and interface options for commercial and industrial equipment integration.
Goobuy UC-533 is a compact IP67 USB UVC camera designed for applications where the camera must operate at an exposed, wet-side or outdoor viewing point while the Android tablet, Linux controller, industrial terminal or embedded host remains protected inside the equipment.
Unlike a bare USB camera module, UC-533 already provides a sealed camera head for faster equipment integration and field validation. Unlike an IP or PoE camera, it does not require network configuration, IP addresses, NVR, VMS or PoE infrastructure when the equipment already has a nearby USB-capable host.
The basic system architecture is simple:Camera Outside → Cable Through Equipment → Host Inside
This makes UC-533 a practical camera platform for outdoor commercial devices, smart terminals, equipment cabinets, rugged Android systems and other business equipment that need a protected external camera head with direct USB video input.
UC-533 is a compact housed USB UVC camera for professional equipment integration.
Typical configurations include:
| Item | Typical UC-533 Direction |
|---|---|
| Camera Type | Compact housed USB UVC camera |
| Waterproof Level | IP67 camera head |
| Resolution | 720P / 1080P options |
| Interface | USB 2.0 |
| Video Format | MJPEG / YUY2 depending on host and mode |
| Lens | Wide-angle option, including 2.8mm-class versions |
| Viewing Angle | Around 120° depending on lens configuration |
| Housing | Mini metal housing |
| Power | 5V via USB |
| Host | Windows / Linux / rugged Android / embedded controller |
| Main Use | Outdoor commercial and industrial equipment |
Goobuy currently positions this platform for business equipment projects where the buyer can define the host device, installation point, cable route, environmental exposure and expected sample or batch quantity.
UC-533 is not intended to compete with consumer webcams or low-cost smartphone camera accessories.
Its value is mechanical and system-level:
a protected external camera head for equipment that already has a host.
A bare USB camera module can be ideal when the camera stays completely inside a protected enclosure.
But many real equipment projects need the camera itself to sit:
In these situations, a bare PCB camera creates additional mechanical work.
The customer may need to design:
A compact IP67 camera head can simplify early equipment validation because these mechanical protection issues are already partly solved at the camera side.

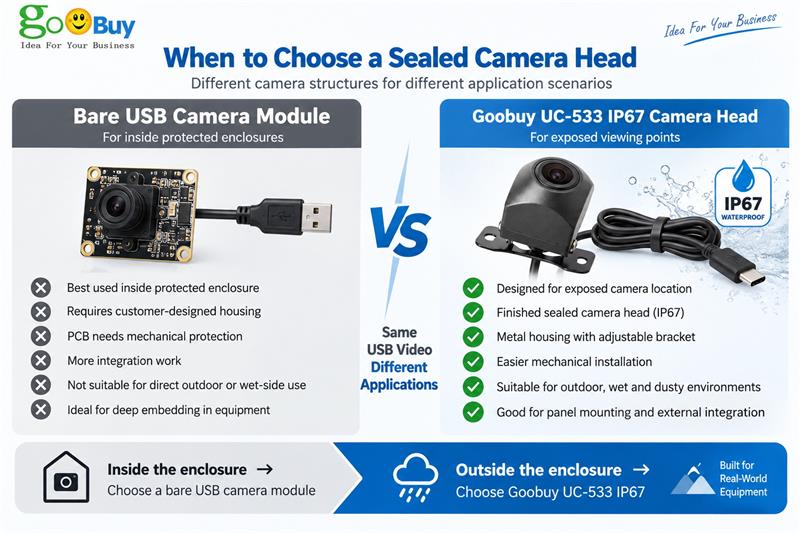

| Bare USB Camera Module | UC-533 IP67 Camera |
|---|---|
| Best inside protected enclosure | Better for exposed camera location |
| Customer designs camera housing | Finished sealed camera head |
| Maximum compactness | Better mechanical readiness |
| More mechanical integration work | Faster field validation |
| PCB must be protected | Camera head already protected |
| Good for deep embedding | Good for panel / external mounting |
A simple selection rule is:
Use a bare USB module when the camera stays inside the enclosure. Use UC-533 when the viewing point must move outside.

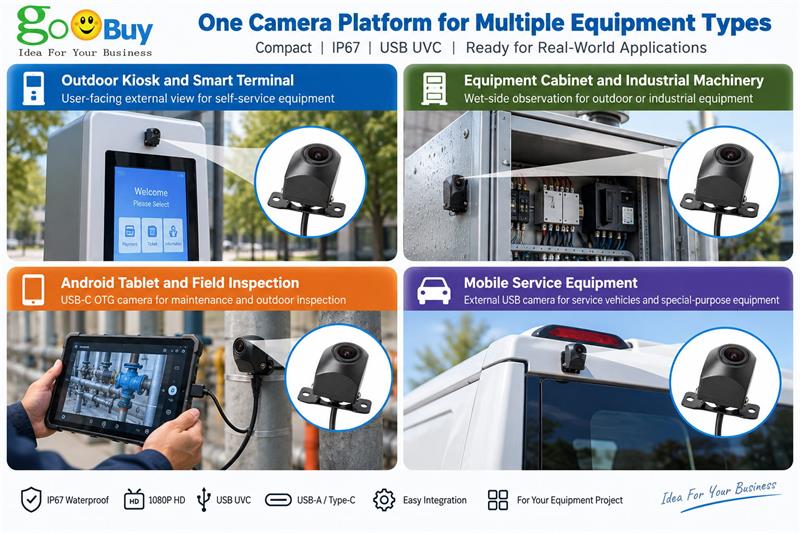

Outdoor kiosks are one of the strongest applications for UC-533.
Typical equipment includes:
These products often already contain:
What they may not have is a compact external camera head that can be mounted at the exposed viewing point.
A typical architecture is: UC-533 Outside → Sealed Cable Path → Android / Linux Host Inside
The camera provides local USB video directly to the customer's device.
No separate IP camera network is required.
Goobuy uses similar professional language around compact metal housings, Type-C OTG, UVC driverless operation, embedded platforms and outdoor image capture, reinforcing that this product class is increasingly positioned as an equipment component rather than a desk webcam.
UC-533 can be evaluated for:
The camera supplies video to the host.
Any UI, recording, authentication or recognition function belongs to the customer's software system.
Smart lockers and vending systems are another strong fit because these machines often need several local viewing points but already have their own controller.
Possible camera positions include:
Goobuy's existing UC-533 product guidance already identifies smart lockers, vending systems and parcel pickup cabinets as relevant applications for a housed USB camera connected to a local host.
A typical buyer requirement may sound like:
“We already have a Linux controller inside the locker. We only need a small protected camera head for pickup-bin monitoring.”
That is exactly the kind of architecture where USB UVC is often simpler than adding another network camera subsystem.
Many outdoor or semi-outdoor equipment enclosures already contain:
But technicians may still need visual confirmation of what is happening inside or immediately outside the enclosure.
UC-533 can be evaluated for viewing:
Goobuy's current application guidance specifically identifies outdoor equipment cabinets, control boxes and utility enclosures as potential use cases where a compact IP67 USB camera can feed a local embedded host without building an IP network path.
The important point is:
UC-533 is a visual-input camera, not a precision measurement system.
It is not intended to replace:
UC-533 can also work as an external camera head for rugged tablets or industrial Android terminals.
The system architecture can be: UC-533 → USB-C / OTG → Rugged Android Tablet
This is useful when the operator wants to keep the tablet:
while placing the camera at the exposed inspection point.
Typical applications include:
Current comparable USB bullet cameras increasingly emphasize Type-C OTG, UVC support and direct Android tablet connectivity. HCVSIGHT, for example, markets similar mini bullet cameras around Type-C OTG, UVC driverless operation and Android / Windows / Linux compatibility.
USB-C alone does not guarantee compatibility.
The target Android device must support:
Final compatibility should always be tested with the exact device and app before production use.
UC-533 can also be considered for service-view and maintenance-view applications on mobile equipment.
Possible examples:
The positioning should remain clear: UC-533 is not a certified automotive safety or rear-view camera.
Instead, it can provide an external USB video point for equipment that already has:
Goobuy's own product guidance makes the same distinction: service-view or maintenance-view use may be appropriate, while certified automotive rear-view or safety-system use is outside this product's intended scope
An IP67 housing does not mean the customer necessarily needs an IP camera.
Many equipment systems already have a local computer.
In these systems, adding:
may create unnecessary complexity.
| USB UVC Camera | IP / PoE Camera |
|---|---|
| Direct local host connection | Network architecture |
| No IP configuration | IP setup required |
| USB power + video | PoE or separate network power |
| Good for one nearby host | Better for distributed systems |
| Simple equipment integration | Better for network surveillance |
| Android / Linux / PC host | NVR / VMS / network host |
A useful selection rule is: Choose UC-533 when the equipment already has a nearby USB-capable host and needs a sealed external camera head—not a separate network camera system.
Goobuy's current UC-533 positioning explicitly distinguishes this product from IP/PoE cameras on the same basis.

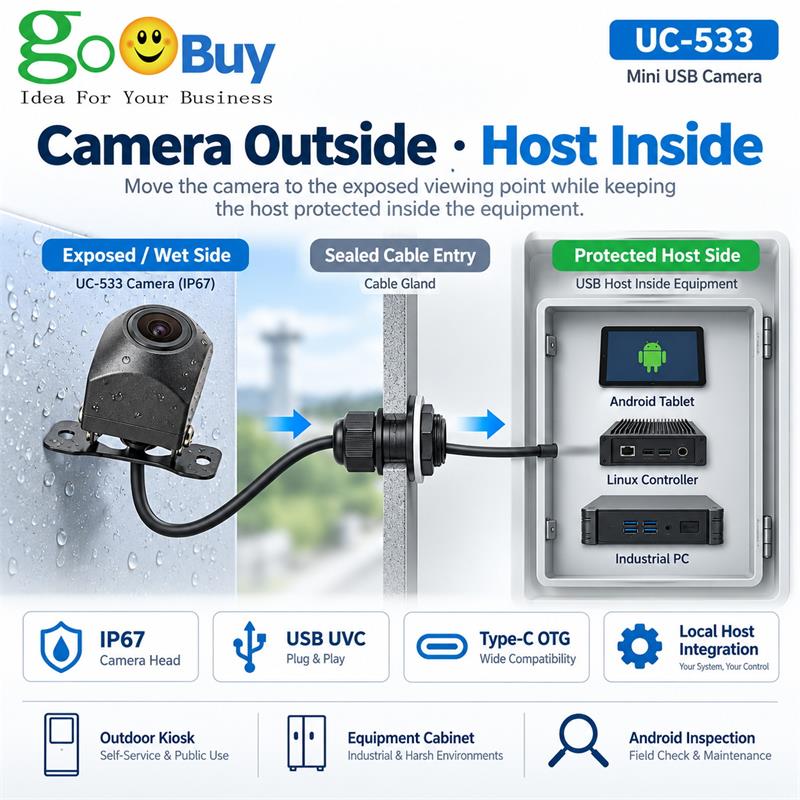

This is the architecture that best explains UC-533.
A typical installation may look like:
Outdoor / Wet Side
UC-533 Camera Head
↓
Panel / Cable Entry
Gland or sealed passage
↓
Protected Side
USB Connector
↓
Android / Linux / PC Host
This structure allows the camera to be placed where it must see while the more sensitive host electronics stay protected.
For many commercial and industrial devices, this is simpler than exposing the host or designing a camera enclosure from scratch.
This is one of the most important engineering boundaries to understand.
IP67 refers to the camera-head protection level.
The complete installation still depends on:
Goobuy specifically recommends treating the camera head, cable, connector, mounting and host enclosure as one complete installation system.
For example:
IP67 camera outside
→ sealed cable route
→ USB connector protected inside cabinet
→ host inside enclosure
IP67 camera outside
→ exposed standard USB connector in rain
The camera head may be sealed, but the overall system is not.
Many UC-533 applications involve limited mounting distance.
Examples include:
In these environments, a wider lens can help cover more of the scene without moving the camera farther away.
Typical UC-533 configurations may use a 2.8mm-class wide-angle lens with approximately 120° viewing coverage depending on the exact lens and sensor configuration.
A wider lens is especially useful when:
However, the widest lens is not always the best lens.
The correct choice depends on:Working Distance + Target Size + Required Field of View
Before selecting UC-533, the buyer should provide several practical details.
What will receive the video?
How far is the camera from the target?
What must be visible?
Where will the cable pass?
Does it need:
Will the camera face:
How will the camera be fixed?
These details are more important than resolution alone for a real B2B equipment project.
For this type of product, Goobuy recommends validating the complete installation rather than judging the camera only on a desk.
A practical process is:
2pcs Sample
→
Real Host Test
→
Mounting & FOV Check
→
Cable Routing Test
→
Environmental Exposure Check
→
Pilot Quantity
→
Repeat Order
The sample stage should verify:
Goobuy's current UC-533 guidance similarly recommends testing the exact host, OS, software, cable path, mounting position and real environmental conditions before batch deployment
Different camera architectures solve different problems.
| Requirement | Better Starting Point |
|---|---|
| Camera remains fully inside equipment | Bare USB camera module |
| Camera must be exposed outside host | UC-533 IP67 USB camera |
| Local analog monitor required | AHD camera |
| Network video required | IP / PoE camera |
| Washdown / severe harsh site | Higher-ruggedness platform |
| Low-light night viewing | IR / STARVIS waterproof camera |
| Precision machine vision | Dedicated machine-vision platform |
Goobuy uses this platform-selection approach because the correct interface and mechanical structure often matter more than headline resolution.
UC-533 is especially suitable for buyers such as:
These buyers typically already have a host system and need a compact protected video input.
UC-533 should not be selected simply because it is waterproof.
It is not the best fit when the project requires:
In those cases, another camera architecture should be evaluated.
Many marketplace products use phrases such as:
These terms generate traffic, but they also attract hobby users and price-sensitive consumer buyers.
Goobuy positions UC-533 differently.
The best-fit customer normally knows:
That is a much better match for a commercial equipment project than a generic phone accessory.
Goobuy UC-533 is not simply a waterproof webcam.
It is a compact external USB UVC camera platform for equipment where: the host already exists, but the camera must move outside the protected area.
That is why the most useful way to understand UC-533 is: Camera Outside · Host Inside
For outdoor kiosks, smart lockers, equipment cabinets, rugged Android systems and other commercial devices, this architecture can provide a simpler path than building a waterproof camera housing from scratch or adding a complete IP/PoE camera system.
The recommended approach is straightforward:Start from the existing UC-533 platform → test it on the real host and equipment → confirm FOV, cable and sealing → move to pilot quantity.
That keeps the project focused on real equipment validation instead of unnecessary camera-system development.
This is one of the main installation architectures for UC-533.
A typical system is:
UC-533 camera outside → cable through a sealed panel entry → USB connector and host inside the protected enclosure.
The camera head handles the exposed viewing point, while the USB connection and host electronics remain on the protected side.
For a production installation, we recommend evaluating the complete cable route, panel penetration, cable gland or grommet, strain relief and connector location—not only the camera head itself.
Not necessarily.
The IP67 rating should be understood as applying to the qualified camera-head configuration. A standard USB-A or USB-C connector should not automatically be assumed to remain waterproof if it is exposed outside the equipment enclosure.
For outdoor equipment, the preferred architecture is usually:
IP67 camera head outside + protected cable entry + USB connector inside the cabinet.
If the connector itself must remain outdoors, please provide the installation drawing so the connector-protection method can be evaluated separately.
UC-533 is intended for exposed and wet-side camera positions, but the actual environment still needs to be defined.
There is an important difference between:
An IP67 camera should not automatically be treated as a washdown or IP69K camera.
For equipment exposed to aggressive cleaning, high-pressure water or continuous water contact, we recommend evaluating a more rugged platform rather than assuming UC-533 is suitable.
The correct lens should be selected from the real installation geometry, not simply by choosing the widest available angle.
Please provide:
camera-to-target distance
required viewing width and height
camera mounting position
target location inside the image
For example, a wide-angle lens is useful when the camera is very close to a cabinet or kiosk area, but an excessively wide lens can make the important target appear too small or introduce unnecessary distortion.
For production equipment, we recommend choosing the FOV from the actual cabinet drawing or sample installation.
