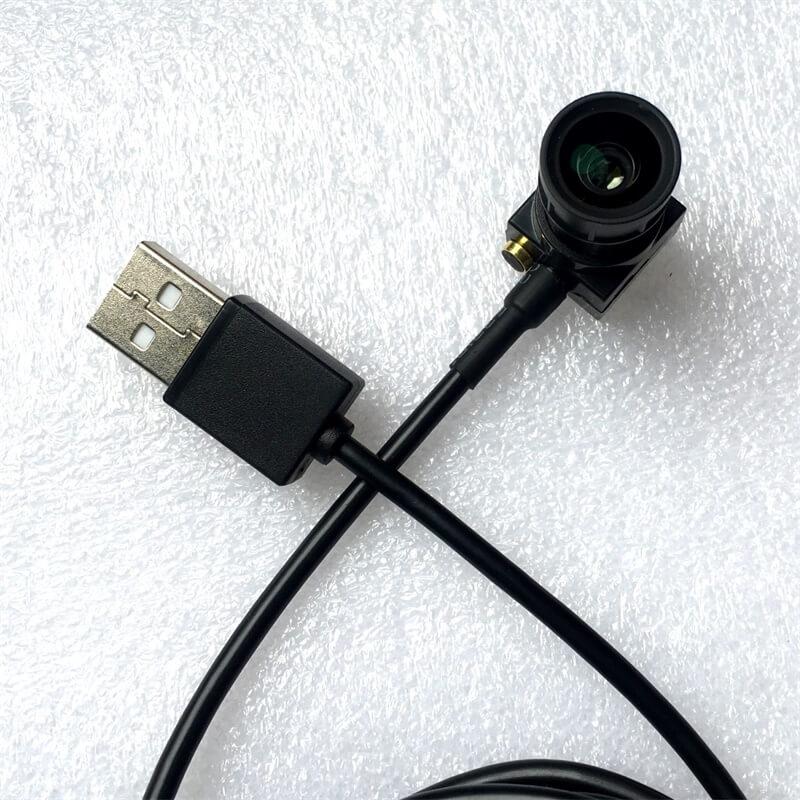

Product Name: 2.8mm cone pinhole lens low light Embedded Equipment Usb Camera For Industrial Process Monitoring
Product Advantage
1, Mini pinhole USB Camera Security For Industrial Automation And Control Systems
2, Interchangeable Lens design, you can change our other board MTV/CCTV/Wide Angle Lens
3, 5MP 1080P FHD Video resolution Industrial Video Monitoring with USB2.0 output
4, Micro Embedded Usb Camera For Vending Machines Security
Product Specifications Of 2MP Equipment Usb Camera
Product Name |
2.8mm Pinhole Camera For Vending Machines |
Cmos Sensor |
GalaxyCore ½.9 inch cmos 0.01 low lux |
Video Resolution |
1920X1080, 1080P@30fps |
Lens FOV |
DFOV 100 degree, HFOV 85degree |
Photo Pixel |
2Megapixels |
Photo Format |
MJPG |
video output |
MJPG/YUY2 |
Lens Focal Length EFL |
2.8mm cone pinhole lens m12 |
Lens Construction |
2MP 1G4P |
F/No Aperture |
F2.0 |
AGC |
OSD |
Minimum illumination |
0.001LUX |
S/N Ratio |
≥52dB |
Gammar |
0.45 |
Backlight Compensation |
OSD |
Shutter |
30f/s |
White balance |
Auto |
Working temperature |
-10~+50℃ |
Power |
5V |
Audio Microphone |
Support, |
System Sync |
inner Sync |
Power consumption |
150mA |
Product Size |
15*15*10mm |
Signal Type & Interface |
usb 2.0 interface, digital Signal |
Length of Cable |
3Meter ( 1m/5m/other length available custom made) |
System |
WIN10/WIN7/WIN8/Linux/Android/Apple Mac |
Note & Remarks
1, You can change other types M12 lens freely, DIY interchangeable Lens design

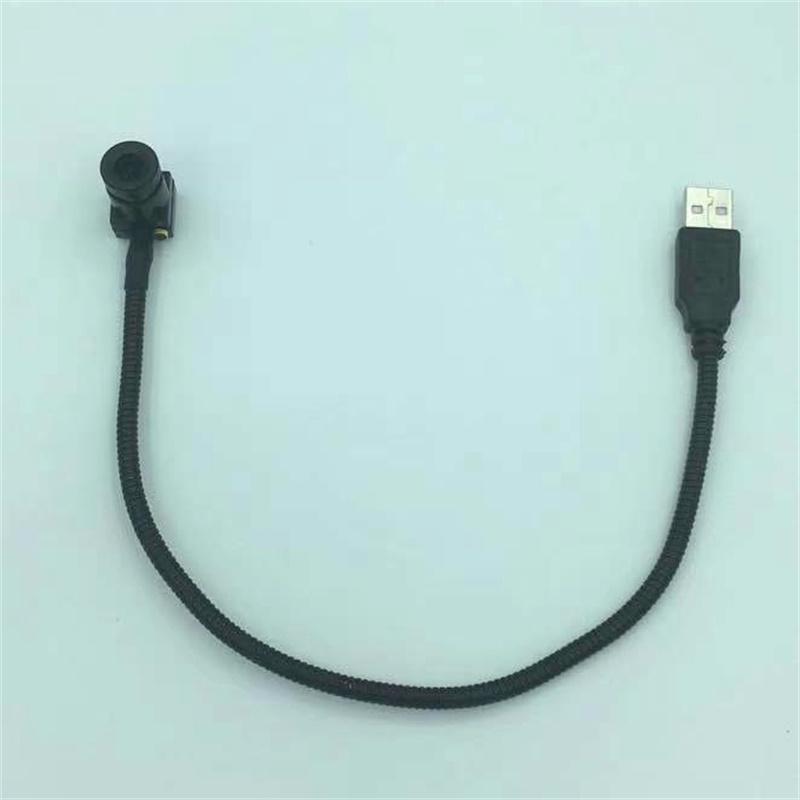

2, We can adjust USB cable Length or change it with foldable Pipe (shorter size)
3, its Interface connector can be changed or custom by USB Micro, BNC/AHD, OTG Type C etc

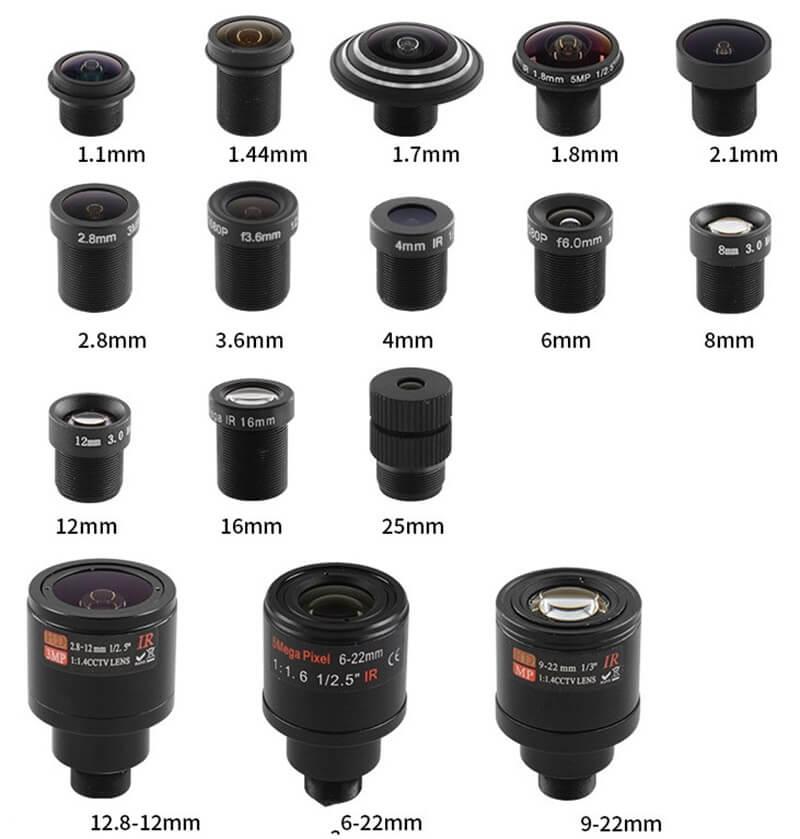

4, You can add and equip extra cone pinhole Lens like 2.1mm, 2.5mm,2.8mm, 6mm, 8mm, 10mm, 12mm, 15mm, 25mm, button Lens etc in your order, which will help you save more money but extend more applications easily
Product Application
1, Bank ATM, all-in-one machine, POS equipment
2, Self service terminals equipment, Automatic Vending Machines Security
3, machines and equipment Industrial Process Monitoring
4, ADVERTISING LCD DISPLAYER WITH Embedded USB Camera
