1. Super small size 15mm while HD video, 2. Different lens and FOV can be customized, 3. Different wires and interfaces can be customized.
+86 755 29775656 INQUIRYNovel autofocus USB camera design for Intelligent machines, special Koisk, VTM, CRS, ATM or other Intelligent machine, mini shell, easy for install in all of models ATM, USB cable length optional, Provide driver for shooting and recording under MS Windows XP system, USB connector can be connected with PC directly, megapixel Sony CMOS chipset, metal casing, support long time non-stop working, available with wide angle board lens or lens to get wide angle view.
|

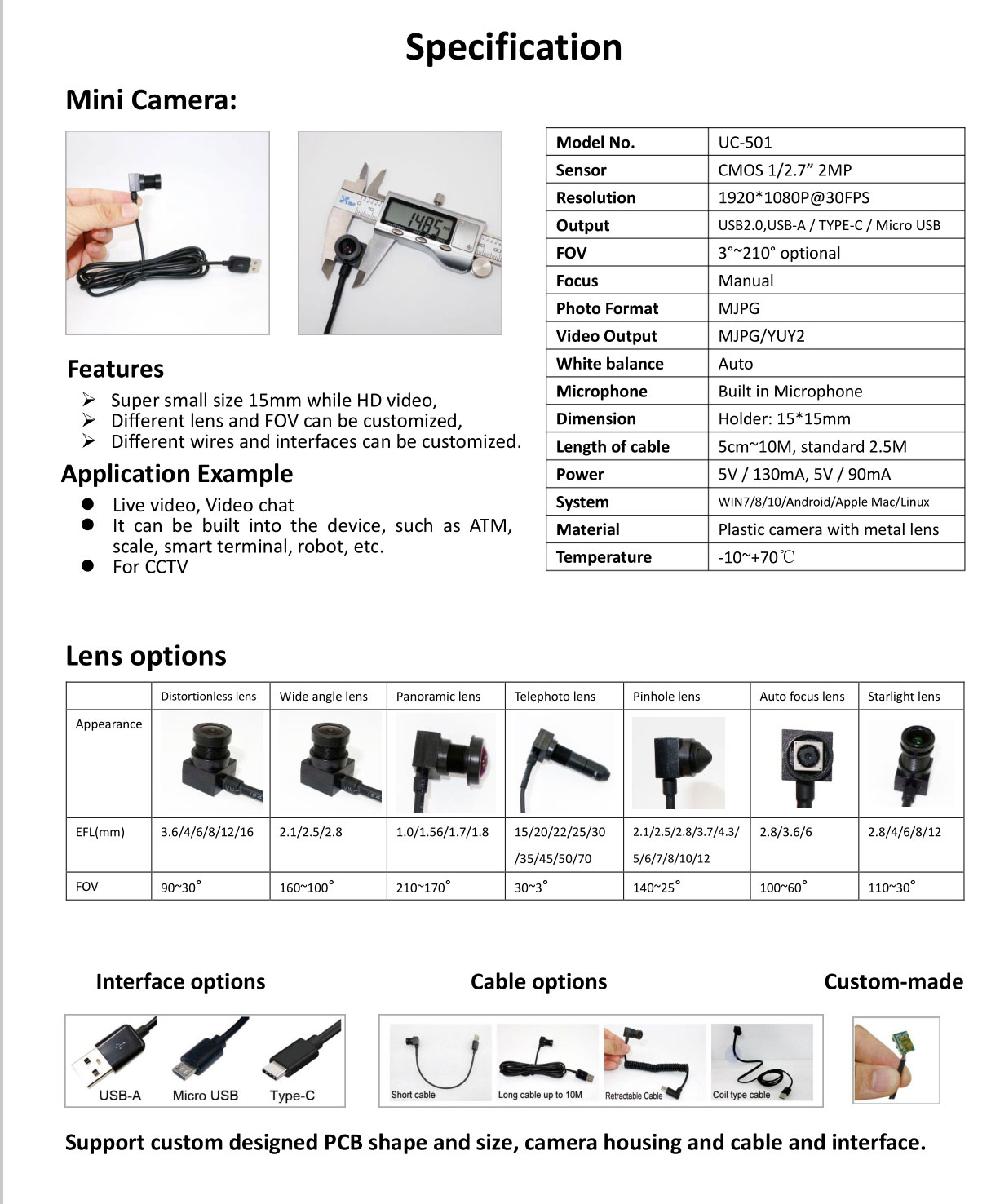

Model No. |
UC-501 |
|
Sensor |
CMOS 1/2.7” 2MP |
|
Resolution |
1920*1080P@30FPS |
|
Output |
USB2.0,USB-A / TYPE-C / Micro USB |
|
FOV |
3°~210° optional |
|
Focus |
Manual |
|
Photo Format |
MJPG |
|
Video Output |
MJPG/YUY2 |
|
White balance |
Auto |
|
Microphone |
Built in Microphone |
|
Dimension |

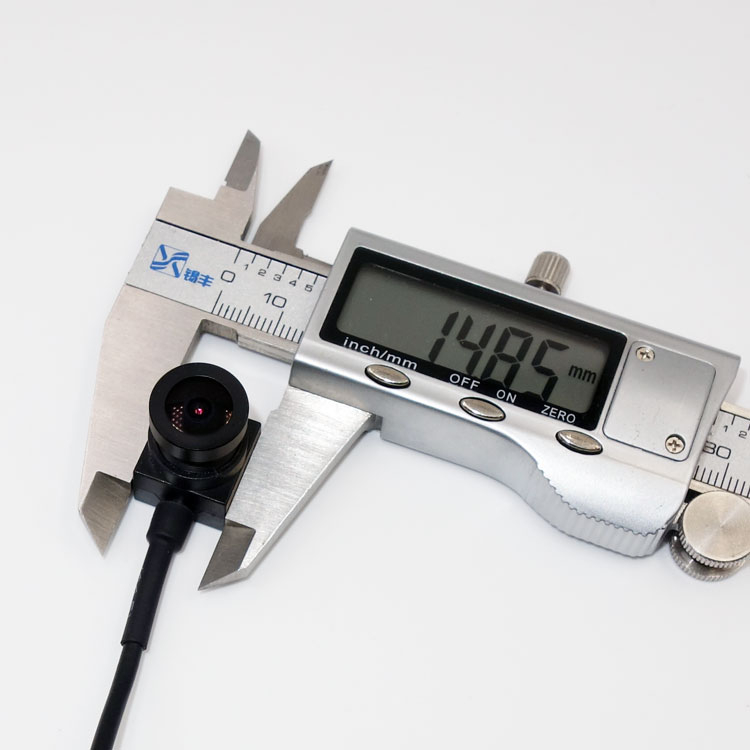

Holder: 15*15mm |
|
Length of cable |
5cm~10M, standard 2.5M |
|
Power |
5V / 130mA, 5V / 90mA |
|
System |
WIN7/8/10/Android/Apple Mac/Linux |
|
Material |
Plastic camera with metal lens |
|
Temperature |
-10~+70℃ |
Support custom designed PCB shape and size, camera housing and cable and interface.
