This Goobuy 10× varifocal autofocus USB camera UC-10X-2MP is a 2MP 1080p UVC-compliant optical-zoom imaging module designed for embedded vision, inspection systems, kiosks, automation equipment and compact industrial monitoring applications.

The camera integrates a 10× motorized optical zoom lens, fast autofocus, and a 2MP 1080p sensor inside a compact housing, providing high-detail imaging for engineers needing long-range, variable-distance, or multi-purpose visual capture. With USB plug-and-play compatibility (Windows, Linux, Raspberry Pi, Jetson), it delivers stable, low-latency video and high optical clarity across both wide-angle and telephoto ranges. Ideal for machine inspection, kiosks, robotics, remote viewing, and portable test equipment.



product overview

This 10x motorized zoom USB camera is designed for demanding applications that require flexible field of view and precise focus control. With a native 1080p sensor, motorized zoom lens, and autofocus support, it delivers high-quality imaging across both near and long range USB zoom camera 1080p scenarios.

Built on the UVC standard, it integrates seamlessly with Windows, Linux, Raspberry Pi, and Jetson platforms. Engineers can manage zoom, focus, and exposure through UVC extension unit zoom control or via SDK/API, making it the ideal software controllable zoom focus USB solution for industrial and research environments.

Novel 2MP USB Camera with 10X  AF Zoom is designed for professional applications such as industrial inspection, medical imaging, robotics, and embedded vision systems. Featuring 10X optical or hybrid zoom, USB plug-and-play interface, and high customization potential, it's a versatile solution for integrators and OEMs.



Why Choose a 10X Optical Zoom Camera?

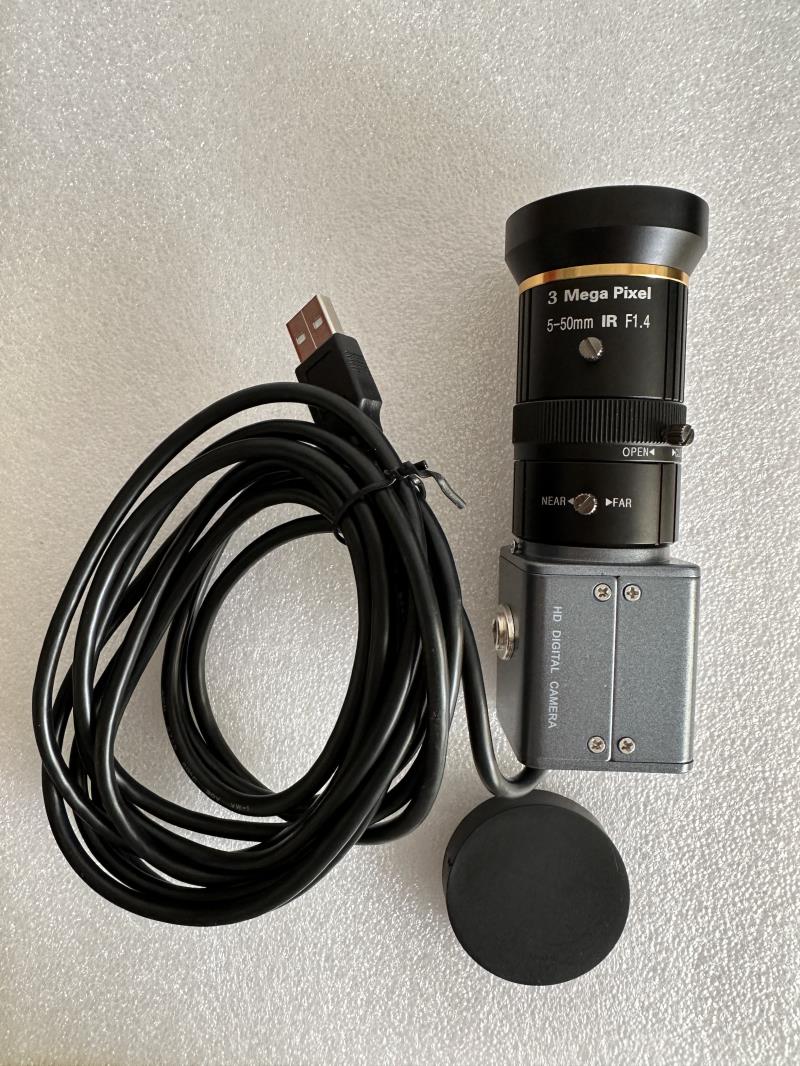

Unlike digital zoom which degrades image quality, the UC-10X-Zoom features a true 5-50mm varifocal lens that provides 10X Optical Zoom. Powered by the Sony IMX307 STARVIS sensor, it excels in low-light industrial environments where standard 4K webcams produce grainy, dark images. It is the ideal solution for monitoring CNC machinery, assembly lines, and distant objects (1m to 10m) without losing pixel clarity.

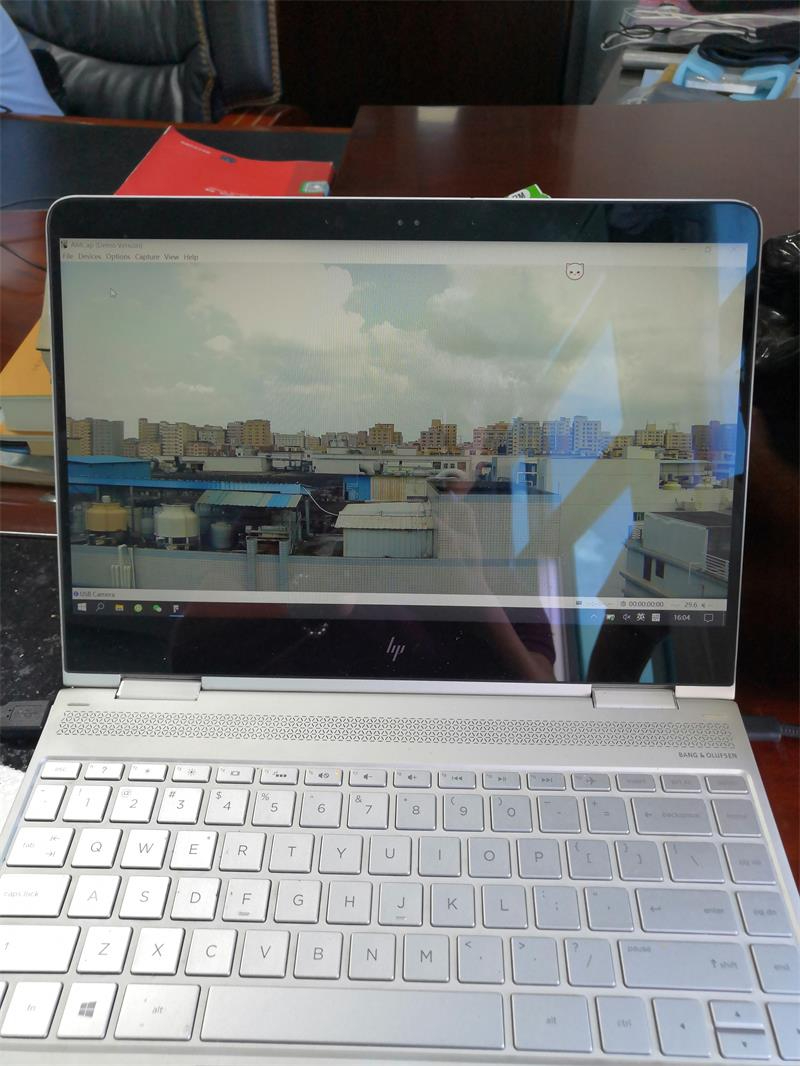

screenshot compressed picture when this 10X varifocal zoom usb camera  work in daytime, September 2023

( the following image had been compressed much because of website design request)



Key Features

• 10X Optical or Digital Zoom – Smooth, distortion-free zoom for close and wide views
• 2MP Full HD Video– Accurate color, excellent clarity
• USB2.0 Interface – Plug-and-play with Windows, Linux, Raspberry Pi, Jetson
• UVC Compliant – Compatible with OpenCV, ROS, AI edge platforms
• Compact Size – Suitable for handheld devices, embedded controllers, or robotic arm
• Software controllable zoom focus USB: adjust zoom, focus, exposure directly from UVC or custom SDK

Problems Solved

1) Fixed-focus cameras cannot capture details at different distances.

Solution: Motorized 10× optical zoom + autofocus adapts instantly.



2) Digital zoom reduces image clarity.

Solution: True optical zoom preserves resolution across the entire range.



3) Engineers need USB simplicity but also want long-range imaging.

Solution: UVC USB interface + telephoto zoom lens = plug-and-play long-distance imaging.



4) Machine inspection requires both wide FOV and close-up detail.

Solution: Varifocal lens covers wide-to-narrow views without hardware changes.



5) Field technicians need durable equipment for mobile diagnostics.

Solution: Rugged protective case ensures safe transport and deployment.



Attribute	Details
Product Name	2MP USB Camera camera module with zoom for automation
Sensor Type	Sony / ON Semiconductor CMOS
Image Resolution	1920 × 1080 (Full HD 1080P)
Zoom Function	10X Optical or Hybrid Zoom (Motorized Lens )
Focus Type	Auto Focus
Lens Mount	Integrated Zoom Lens
Field of View (FOV)	Adjustable via Zoom (typically 30° to 90°)
Board Size	38 × 38mm (customization available)
Interface	USB 2.0 / USB 3.0 (optional)
Video Format	MJPEG / YUY2
Frame Rate	30fps @ 1080P
UVC Protocol Support	Yes (Plug & Play, driver-free on Windows/Linux/Mac/Android)
Operating System Compatibility	Windows, Linux (Ubuntu), Android, macOS, Jetson, Raspberry Pi
Control Protocol	UVC Standard or Custom Serial Command Protocol
Power Supply	5V via USB
Working Temperature	-10°C ~ +60°C (custom -25°C available)
Housing Options	Bare board / Metal case / Custom enclosure
Cable Length	Standard 30cm / Custom (50cm, 100cm, etc.)
Application	Robotics, Medical Imaging, Industrial Inspection, Embedded Vision Systems
Certification	CE, FCC, RoHS
OEM/ODM Support	Yes – Custom lens, housing, firmware, connector available
MOQ	1 pcs for sample, bulk MOQ negotiable
Lead Time	5–7 days for sample; 13–20 days for bulk

Use Scenarios

1. Medical Equipment Integration
   • Installed in telemedicine terminals, dermatology scopes, dental imaging units, or surgical monitoring systems
   • Doctors or operators can zoom in on skin, tissue, or instruments in real-time with high clarity.
   •
2. Industrial Inspection Systems
   • Used in electronics PCB inspection, defect detection, soldering checks, or precision assembly
   • Operators can adjust zoom to inspect both macro and micro elements without changing lenses.
   •
3. Laboratory & Scientific Research
   • Ideal for biological samples, chemical experiments, or educational digital microscopes
   • Plug-and-play USB interface makes it easy for researchers and students to capture zoomed video or images.
   •
4. Robotics & AGV Vision Systems
   • Installed in robotic arms, AGVs, or autonomous systems for object identification, barcode reading, or target tracking at a distance
   •
5. Retail & Smart Vending Solutions
   • Mounted in smart vending machines, automated kiosks, or retail shelves to zoom in on products, detect user interactions, or monitor stock
   •
6. Security & Surveillance
   • Integrated into small footprint security systems where zoom is needed without bulky PTZ hardware
   • Ideal for indoor security, ATM monitoring, museum artifact protection
   •
7. Document or Barcode Scanning Stations
   • For customs, warehouses, or archival systems, used to zoom and capture details on passports, QR/barcodes, or serial numbers from various distances.

High-Value Use Cases

1. CNC Machine Process Monitoring

• Scenario: Safely monitoring the cutting tip inside a large CNC machine from outside the safety glass.

• Why this camera? The 10X zoom allows you to place the camera far away from flying coolant and chips, yet still get a close-up view of the tool bit. The IMX307 handles the dim lighting inside the machine enclosure perfectly.



2. Quality Control on Conveyor Belts

• Scenario: Inspecting product labels or barcodes on a wide conveyor belt.

• Why this camera? Mount the camera high up (to clear the workspace) and zoom in optically to read the small text on the box passing by.



3. Telemedicine & Skin Inspection

• Scenario: A dermatologist needs a clear view of a skin lesion.

• Why this camera? The autofocus and zoom allow for detailed macro-like shots without holding the camera uncomfortably close to the patient.



4. PCB Soldering & Repair

• Scenario: Repairing electronics and needing to see tiny solder joints.

• Why this camera? Acts as a digital microscope with a long working distance, giving you plenty of room to use your soldering iron under the camera.



Application Scenarios

• Inspection zoom camera for AOI: switch from full PCB view to detailed component analysis without lens change
• Industrial monitoring & robotics: AGV/AMR navigation, production line defect detection, flexible positioning
• Museum exhibit protection USB camera: long-range zoom for artifact security monitoring, low-light stability
• Smart kiosks & retail: variable distance barcode scanning, face recognition, product authentication
• Outdoor security & research: long-range identification for perimeter control and field study environments



Case Studies & Customer Success Stories

Case Study 1 – Smart Factory AOI in Germany
A German automotive supplier integrated the 10X autofocus zoom USB camera into its automated inspection stations. Traditional fixed-focus cameras required multiple units at different distances, adding cost and complexity. By using a 10X motorized zoom USB camera, engineers could dynamically switch from wide overviews of a PCB panel to detailed inspections of solder joints. This eliminated the need for multiple cameras, reducing hardware costs by 25%, and improved inspection throughput by 30%.

“The software controllable zoom focus USB camera gave us unmatched flexibility in our AOI systems and reduced downtime due to lens changes.”



Case Study 2 – Museum Exhibit Protection in Italy
An Italian cultural heritage institution installed the 10X autofocus zoom USB camera for museum exhibit protection. Security staff needed the ability to monitor large exhibit halls and also zoom into specific artifacts for detailed inspection. With the 1080p resolution and software-controlled autofocus/zoom, curators could observe delicate sculptures and paintings without physical intrusion. The system integrated easily with their existing ROS-OpenCV monitoring pipeline. This helped prevent artifact tampering incidents and improved preservation monitoring.

“This museum exhibit protection USB camera gave us the detail we needed to ensure both visitor safety and artifact preservation, all with one device.”



Integration-Focused FAQ
FAQ 1 — Does autofocus still function during zoom changes?
Yes. The AF system automatically adjusts focus after every zoom step, ensuring clarity at any focal length.

FAQ 2 — What is the zoom lens' focal length range and minimum working distance?
The optical zoom typically ranges from ~4.8 mm (wide) to ~48 mm (tele). Minimum working distance is usually 10–20 cm, depending on zoom level.

FAQ 3 — Can this camera run reliably on low-power SBCs like Raspberry Pi or Jetson Nano?
Yes. In MJPEG mode, it streams 1080p@30fps smoothly. USB power consumption is fully within SBC limits.

FAQ 4 — Does zooming affect USB bandwidth or frame rate?
No. Optical zoom happens in the lens, not in the data pipeline. 1080p@30fps is maintained across the entire zoom range.

FAQ 5 — Is there SDK or software requirement for controlling zoom/AF?
Zoom and autofocus can be controlled via:
UVC extension controls
Standard USB camera software
OpenCV + Python / C++
No proprietary SDK is required.



FAQ 6 — Can the camera be used for long-distance capture (5–20 meters)?
Yes. At full 10× telephoto zoom, the optics are optimized for long-range clarity and stable focusing.


About Shenzhen Novel Electronics Limited

Goobuy is a professional provider of miniature and embedded USB camera and zoom camera module, trusted by global clients in industrial automation, robotics, Edge AI vision,  and security industries. Our camera modules are CE/FCC/RoHS certified, with over 100 customizable models shipped worldwide in recent 5 years, Your personalized ODM new camera are welcome!
