Unlocking Embedded 4K AI Vision: A Technical Deep Dive on the UC-503-12MP, the Smallest 4K USB Camera Module
This article defines how the ultra-compact 14 × 14 mm 4K/12 MP Novel micro USB camera module UC-503-12MP transforms edge-AI system design by delivering high resolution, minimal form-factor, and UVC plug-and-play ease for retail, robotic and industrial vision applications.
For CTOs, system integrators, and edge AI engineers, the central challenge in hardware design is no longer just processing power. It is a constant battle against the "impossible trilemma" of Acuity, Size, and Integration.
Acuity (Resolution): High-performance AI models, particularly for tasks like OCR, defect detection, or long-range biometrics, demand high-resolution (4K, 12MP) data. A model is only as good as the pixels it receives.
Size (Form Factor): The market demands miniaturization. AI is moving into robotic end-effectors, wearable diagnostics, and drone gimbals. Every square millimeter is critical.
Integration (Time-to-Market): This is the engineering bottleneck. The traditional solution for high-acuity, the MIPI CSI-2 interface, is notoriously complex. It requires platform-specific drivers, kernel modifications, and intricate ISP (Image Signal Processor) tuning for every sensor-SoC pairing. The engineering costs and project delays associated with MIPI driver development are a significant barrier.
Engineers are often forced to choose two. A MIPI camera provides Acuity and (potentially) Size, but fails on Integration. A standard UVC webcam provides Integration, but fails on Acuity and Size.
This is why we engineered the UC-503-12MP. It is a MIPI camera alternative Jetson developers have been asking for. This module is not a compromise; it is an architectural solution that delivers all three, enabling complex AI deployments previously deemed unfeasible.
This module was designed from the ground up to serve as a high-acuity data acquisition peripheral for AI inference engines.

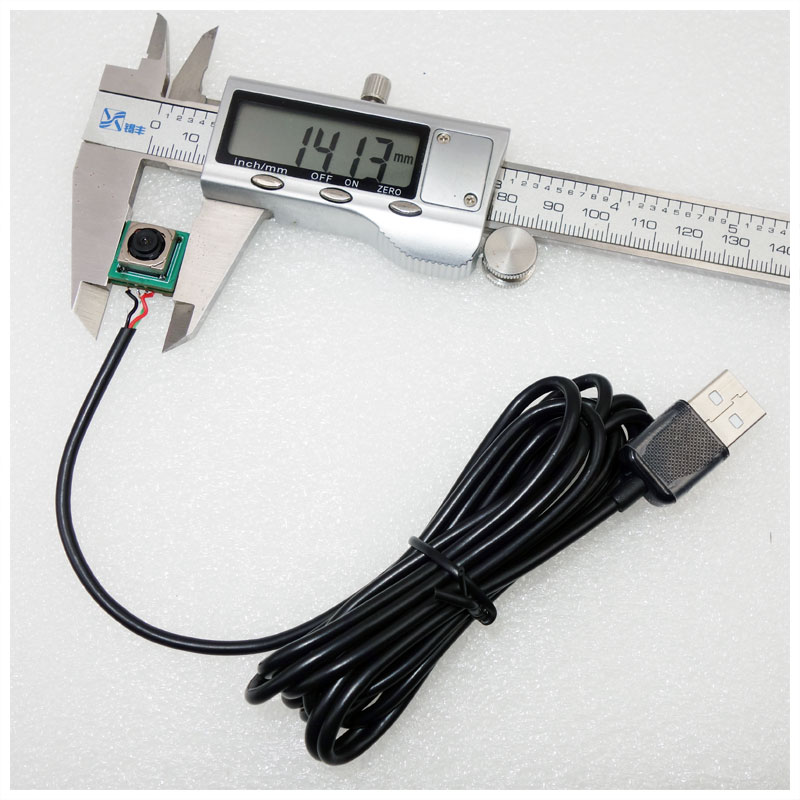

The 14x14mm footprint is a critical design feature. It moves the AI camera module from being a "component to be integrated" to a "sensor to be embedded." This size allows for placement in previously impossible locations: smart-glass frames, handheld scanner tips, or multi-camera arrays on small robotic systems where a 38x38mm board would be prohibitive.
A 1080p stream (2MP) is insufficient for high-fidelity AI. When an AI model processes a 1080p image from a wide-angle lens, a human face 10 meters away may be represented by only a few pixels, making robust recognition impossible.
The 12MP (4000x3000) sensor in this module provides the raw pixel density required for AI to perform "sub-region" analysis. An AI model can analyze a full 4K (8MP) wide-shot to find regions of interest, then crop and process the 12MP still for maximum detail. This is essential for applications like:
AI-OCR: Reading fine-print serial numbers in a factory.
Defect Detection: Identifying hairline fractures or misaligned components.
Biometrics: Capturing sufficient facial or iris detail for secure authentication.
Many embedded vision projects fail when they collide with the real world. A fixed-focus (FF) module is useless in a dynamic environment. The UC-503-12MP’s autofocus (AF) mechanism is exposed via standard UVC controls. This allows the AI application itself to control the focus.
Example AI Workflow:
A YOLO model scans the 4K stream for a "document" or "QR code" class.
Upon detection, the application commands the UVC driver to trigger an autofocus routine on the detected bounding box.
The AI receives a perfectly sharp image in the next frame for OCR or decoding.
This makes it the ideal Micro 12MP autofocus USB camera for kiosks, lab automation, and any application where the target's distance is variable.
This is the module's most significant value proposition for engineers and PMs. It is a fully UVC-compliant device.
For the Developer: It requires zero driver development. It is a true OpenCV 4K USB camera. On any standard Linux kernel, it is instantly recognized. A Python developer can access the 4K stream with a single line: cap = cv2.VideoCapture(0).
For the Integrator: This platform-agnostic nature is a massive de-risker. The same camera module works flawlessly as a NVIDIA Jetson USB camera, a Rockchip RK3588 USB camera, a Raspberry Pi camera, or on an x86 industrial PC. This allows teams to prototype on a PC and deploy on an embedded board with zero camera integration overhead.
The obvious technical question is: "How do you stream 4K@30fps over a USB 2.0 (480 Mbps) interface?"
The answer is on-board MJPEG compression.
However, this presents a new challenge: decoding. If an AI application naively requests the MJPEG stream (e.g., with OpenCV) and performs CPU-based software decoding, the host CPU on an embedded board will be instantly saturated, leaving no resources for AI inference.
The correct architecture is to offload decoding to the host SoC's dedicated hardware video decoder (VDEC).
Modern AI SoCs, from the 4K camera for Jetson Orin Nano to the powerful Rockchip RK3588 USB camera platforms, all include powerful VDECs (e.g., NVDEC on Jetson, MPP on Rockchip) specifically for this purpose.
The optimal pipeline uses GStreamer to create a zero-copy, hardware-accelerated path from the USB port to the AI inference engine.
Target Platform 1: NVIDIA Jetson (Orin, Xavier, Nano) To use this as a USB camera for NVIDIA DeepStream, you must use the nvv4l2decoder. This bypasses the CPU entirely.
# GStreamer pipeline for Jetson
gst-launch-1.0 v4l2src device=/dev/video0 \
! image/jpeg, width=3840, height=2160, framerate=30/1 \
! nvv4l2decoder mjpeg=1 \
! nvvidconv \
! 'video/x-raw(memory:NVMM), format=RGBA' \
! nvinfer config-file=config_infer.txt \
! ... (rest of AI pipeline) ...
Bash
# GStreamer pipeline for Jetson
gst-launch-1.0 v4l2src device=/dev/video0 \
! image/jpeg, width=3840, height=2160, framerate=30/1 \
! nvv4l2decoder mjpeg=1 \
! nvvidconv \
! 'video/x-raw(memory:NVMM), format=RGBA' \
! nvinfer config-file=config_infer.txt \
! ... (rest of AI pipeline) ...
This pipeline takes the MJPEG stream, decodes it on the NVDEC, converts it to the required format in CUDA memory (NVMM), and feeds it directly to the TensorRT inference engine (nvinfer).
Target Platform 2: Rockchip RK3588 The principle is identical, using Rockchip's mppvideodec hardware decoder.
Bash
# GStreamer pipeline for Rockchip
gst-launch-1.0 v4l2src device=/dev/video0 \
! image/jpeg, width=3840, height=2160 \
! mppvideodec \
! video/x-raw, format=NV12 \
! rknn_infer model=model.rknn \
! ... (rest of AI pipeline) ...
This architecture is the key. The UC-503-12MP leverages MJPEG to solve the bandwidth problem, and the host's VDEC solves the decoding problem. The result is a high-performance, low-overhead 4K AI pipeline on a simple USB interface.
This module's unique specifications unlock specific, high-value AI applications.
Case Study 1: AI-Powered Kiosk / ATM
Challenge: Scan user documents (ID, passport) and QR codes from a "hands-free" distance. Must fit inside a narrow bezel.
Architecture: The Micro 12MP autofocus USB camera (UC-503-12MP) is placed behind the bezel. The 4K stream is fed to an RK3588. An AI model detects the document, triggers the UVC autofocus, and a 12MP snapshot is captured for the OCR engine.
Result: A seamless user experience with high-accuracy scanning, enabled by the combination of AF and 12MP resolution.
Case Study 2: Handheld Medical Diagnostics
Challenge: Create a handheld dermatoscope or otoscope. The device must be small, and the AI model needs extreme detail to identify malignance or infections.
Architecture: This Embedded 12MP camera for medical device is perfect. Its 14mm size fits in the device tip. The 12MP stills are fed to an onboard NXP i.MX8M Plus, running a lightweight classification or segmentation model (e.g., U-Net).
Result: A portable, AI-assisted diagnostic tool that was previously only possible with bulky, expensive lab equipment.
Case Study 3: Drone/Robotic Inspection
Challenge: An autonomous drone must inspect industrial equipment and read small serial numbers from a safe standoff distance of 5-10 meters.
Architecture: The Miniature 4K UVC camera (UC-503-12MP) is mounted on a gimbal. The USB stream is sent to a Jetson Orin Nano. The 4K video is decoded via GStreamer, and an AI-OCR model (e.g., Tesseract or a custom model) runs on the GPU/NPU.
Result: A lightweight, high-acuity AI inspection system deployed with minimal integration effort.
The UC-503-12MP is more than just a component. It is an engineering enabler that fundamentally changes the design equation for AI edge devices. It proves that you no longer have to sacrifice 4K resolution for a micro form factor, nor do you have to endure the costly development hell of MIPI drivers for high-performance AI.
By combining 12MP/4K acuity, autofocus, a 14x14mm footprint, and the plug-and-play simplicity of UVC, this module serves as the ideal MIPI camera alternative Jetson and Rockchip developers need. It allows teams to focus on what truly matters: the AI model and the application logic, not the kernel drivers.
------------------------------------------------------------------------------------------------------------------------------------------------------------
Q1: How does the UC-503-12MP achieve 4K@30fps video over a USB 2.0 interface?
A1: The UC-503-12MP utilizes onboard hardware to perform real-time MJPEG compression on the 4K (3840x2160) video stream before transmitting it over the USB 2.0 interface. While USB 2.0 lacks bandwidth for uncompressed 4K, MJPEG significantly reduces the data rate, allowing 4K@30fps transmission. The host system (e.g., Jetson, RK3588) must then decode the MJPEG stream, preferably using hardware acceleration (like nvv4l2decoder or mppvideodec via GStreamer) for optimal performance in AI applications.
Q2: What is the performance impact of MJPEG decoding on AI edge platforms like NVIDIA Jetson or Rockchip RK3588 when using the UC-503-12MP?
A2: The impact depends entirely on the decoding method:
CPU Software Decoding (e.g., default OpenCV): Extremely high impact. Can consume 100% CPU on embedded platforms, drastically reducing frame rates (to ~5-7 fps at 4K) and leaving no resources for AI inference. This method is NOT recommended for performance-critical AI using the UC-503-12MP.
Hardware-Accelerated Decoding (Recommended): Minimal impact. Utilizing the platform's dedicated VDEC (Video Decoder) via frameworks like GStreamer (using nvv4l2decoder on Jetson or mppvideodec on Rockchip) offloads the decoding task. This allows the UC-503-12MP to deliver 4K@30fps to the AI pipeline with very low CPU overhead (<10-15%), enabling real-time AI inference. [Link to GStreamer Guide Blog Post]
Q3: Is the UC-503-12MP truly plug-and-play (UVC) on platforms like Jetson, Rockchip, and Raspberry Pi?
A3: Yes, the UC-503-12MP is fully compliant with the UVC (USB Video Class) 1.0/1.1 standard. This ensures true plug-and-play operation on most modern operating systems, including:
Windows 10/11
Linux (including distributions used on NVIDIA Jetson JetPack, Rockchip Debian/Ubuntu, Raspberry Pi OS)
Android (with OTG support)
MacOS No proprietary drivers are typically required. The UC-503-12MP will be recognized as a standard video capture device (e.g., /dev/videoX on Linux).
Q4: Does the UC-503-12MP use a Global Shutter or Rolling Shutter sensor?
Is it suitable for capturing fast motion in AI applications?
A4: The UC-503-12MP utilizes a high-resolution Rolling Shutter CMOS sensor, common for 12MP/4K cameras in this class. It is not a Global Shutter sensor.
Implications for AI: Rolling shutter can introduce "jello" artifacts when capturing very fast-moving objects across the frame.
Recommendation: The UC-503-12MP is ideal for "stop-and-stare" AI applications (drone inspection hover, kiosk document scan, robotic arm pauses) where its high resolution is paramount. For applications requiring capture of extremely high-speed motion without distortion, a lower-resolution Global Shutter camera may be more suitable. Motion blur can be minimized by controlling the exposure time via UVC commands in well-lit conditions.
Q5: Can the 14x14mm UC-503-12MP module be customized for OEM/volume orders (e.g., lens, focus, cable)?
A5: Absolutely. The UC-503-12MP platform is designed for OEM integration. We offer customization options for volume orders, including:
Lens: Factory fitting with different M-mount lenses for specific FoV requirements.
Focus: Can be configured as Fixed Focus (locked at a specific distance) instead of Autofocus for enhanced robustness.
Cable/Connector: Custom FPC cable lengths and termination (USB-A, Type-C, Micro-B, board connector). Contact our sales team to discuss your specific OEM requirements for the UC-503-12MP. e-mail us to office@okgoobuy.com or whatsapp +86 13510914939 or call us office +86 755 29775656
Q6: What is the real-world latency of this 4K MJPEG stream, and is it suitable for "real-time" AI inference?
A6: This is the most critical question. The total "glass-to-AI-tensor" latency is a sum of three components:
Capture & Compression Latency (On-Module): This is minimal. The module uses an internal hardware ASIC to compress the 12MP/4K stream to MJPEG in real-time. This latency is typically less than one frame.
USB 2.0 Bus Latency: This is variable but low. The 480 Mbps bus is more than sufficient for a 4K@30fps MJPEG stream.
Host-Side Decode Latency: This is the main bottleneck.
If you use CPU-based software decoding (e.g., a default OpenCV build), the decode latency alone on a Jetson Orin Nano can exceed 100-150ms, making real-time applications impossible.
However, if you use the hardware-accelerated GStreamer pipelines shown above (nvv4l2decoder on Jetson, mppvideodec on Rockchip), the decode latency drops dramatically to <20-40ms.
Conclusion: This module is not suitable for high-frequency (<10ms) robotic control loops. It is absolutely suitable for 20-30fps "real-time" AI applications like object tracking, kiosk interaction, and inspection, provided you use the correct hardware-accelerated decode pipeline.
