Portable Monitor for USB Cameras | Standalone UVC DVR

Turn your USB webcam into a portable tool. This 7" battery monitor powers and records UVC cameras directly. No PC needed. Supports MJPEG/YUY2

Details

The Goobuy SDVR-1001 is a 7-inch portable USB industrial DVR monitor with a built-in 3000 mAh battery, designed for real-time inspection, evidence recording and on-site diagnostics when paired with 1080p USB UVC industrial endoscope cameras.
Engineered for maintenance technicians and field engineers, the Goobuy SDVR-1001 provides a self-contained, PC-free visualization and recording solution. Its integrated DVR panel enables direct video capture, playback and snapshot documentation on an SD card—ideal for confined-space inspections, pipeline checks, machine service, factory maintenance and conditions where laptops are inconvenient or unsafe to use. This portable 7-inch monitor supports up to 1080p USB UVC cameras and operates reliably with its internal rechargeable battery.

product overview

The Goobuy SDVR-1001 is a professional portable visualization device purpose-built for field inspection, industrial maintenance and difficult-to-access environments. It serves as an independent 7-inch inspection monitor with integrated DVR functions, eliminating the need for carrying laptops or relying on external power.

Paired with your 2MP USB UVC industrial camera or ultra-mini 1.2 mm endoscope, it provides:

Real-time viewing

Evidence-grade video recordings

Snapshot documentation

Local playback for instant review

Safe operation in restricted or hazardous zones

Its rugged design and 3000 mAh built-in battery make it ideal for pipeline inspection, HVAC ducts, equipment servicing, industrial troubleshooting, and facility maintenance tasks.

7-inch USB industrial endoscope monitor with DVR and a built-in battery transforms a basic inspection tool into a powerful diagnostic, documentation, and communication solution. It addresses critical needs for verifiable evidence, improved efficiency, enhanced safety, and superior client engagement across industrial and commercial applications

What is a USB Monitor DVR?

The Goobuy SDVR-1001 is a portable display unit designed to act as a host controller for USB cameras. Unlike standard HDMI monitors, this device features a built-in USB 2.0 Host Port that provides 5V power to connected devices. It decodes standard UVC (USB Video Class) video streams, allowing users to view and record footage from USB microscopes, borescopes, and webcams directly to an SD card without requiring a computer or smartphone.

Why it’s built for field technicians

All-in-one: view, record, replay, share—no laptop needed
Portable: battery operation for remote yards and tight cabinets
Evidence-grade: on-screen time-stamp and loop recording (add) for audits/claims

Key Features and What They Address

7-inch Monitor: Provides a clear, relatively large display for viewing endoscope footage.
- Solves: The need for external screens (laptops, TVs) in the field, which can be cumbersome or unavailable; difficulty seeing fine details on smaller, integrated endoscope screens.
- Meets Demand: Comfortable and detailed real-time viewing for operators, improving accuracy and reducing eye strain during extended inspections.
Built-in DVR (Digital Video Recorder): Allows for the recording of video and still images from the endoscope.
- Solves: The inability to capture visual evidence of inspections, faults, or successful repairs; reliance on manual notes or memory for post-inspection analysis; difficulty in sharing findings with colleagues or clients.
- Meets Demand: Crucial for documentation, quality control, training, and remote consultation, providing verifiable visual records.
Built-in 3000mAh Battery: Provides portable power for the monitor and connected endoscope.
- Solves: Dependence on AC power outlets, limiting field use; interruption of inspections due to power loss; the need for bulky external power banks.
- Meets Demand: True portability and untethered operation in remote, hazardous, or inconvenient locations where power isn't readily available, ensuring uninterrupted workflow.
USB Connectivity (for Endoscope): Standard and widely compatible interface for connecting various USB endoscopes.
- Solves: Proprietary endoscope connections, limiting flexibility; the need for multiple monitors for different endoscope types.
- Meets Demand: Versatility, allowing a single monitor to be used with a range of USB-compatible industrial endoscopes, simplifying equipment management.
Industrial Design (Implied by context): Suggests ruggedness suitable for professional use, though specific IP ratings or drop-test certifications would need to be confirmed.
- Solves: Fragility of consumer-grade screens in harsh environments; damage from drops, dust, or splashes.
- Meets Demand: Reliability and longevity in demanding work conditions.

Model No.	SDVR-1001
Size of screen	7”
Resolution	1920*1080P
Input	USB2.0,USB-A
Storage	Support 4GB~256GB micro SD
Fuction	Taking photo, video recording, playback, delete, zoom, etc.
Photo Format	JPEG
Video Format	MOV
Battery	3000mAh battery inside, Support charging while using

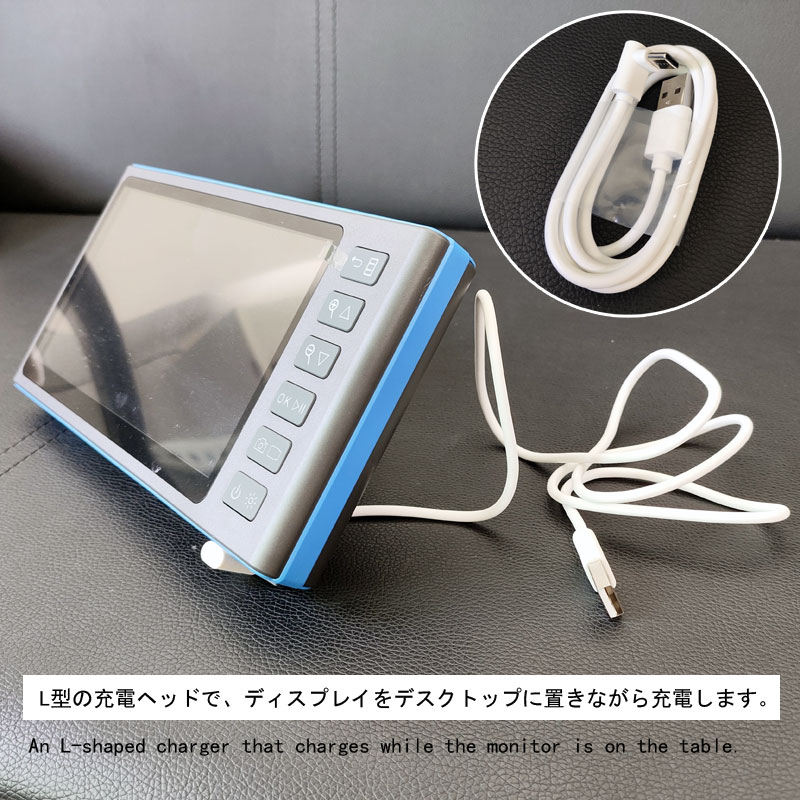

Charger port	Typc-C, 5V 1A
Dimension	21113cm
Temperature	-10~+70℃

UVC Compatibility Matrix

Camera type	Typical mode	Notes
2MP UVC endoscope	1920×1080 MJPEG/YUY2 @30 fps	fully supported
OV6948 micro probe	200×200 @30 fps	ideal for micro-borescope
2MP UC-501	1080p @30 fps	capture to SD, preview FHD

Camera Type	Compatible?	Notes
Standard Webcams	✅ Yes	Must support UVC Protocol (Driverless).
USB Microscopes	✅ Yes	Ideal for soldering and biological inspection.
USB Endoscopes	✅ Yes	Works with most rigid and flexible probes.
Dental Cameras	✅ Yes	Great for patient demos.
Old CCTV (Analog)	❌ No	This is for USB digital cameras only.
Video Format	MJPEG / YUY2	Does not support H.264 raw stream cameras (unless specified).

screenshot compressed picture when our 2MP usb camera connect and work with this 7inch USB DVR

( the following image had been compressed much because of website design request, date: 11/09/2024)

Industrial Inspection Challenges: Solved by Goobuy UC-700-DVR (Why use a USB monitor for inspection?)

Inspection Challenge	Operational Pain Point	Technical Solution	Business Value (ROI)
Field Mobility	Laptops are heavy, fragile, and hard to balance on ladders or in crawl spaces.	7" Handheld Form Factor: Lightweight, battery-powered, one-hand operation.	Reduced Fatigue & Risk: Technicians work faster and safer in tight spots.
Data Integrity	Verbal reports or hand-sketched diagrams are vague and open to disputes.	One-Click DVR Recording: Captures 1080p video/photos to SD card instantly.	Dispute Elimination: 100% verifiable visual proof for warranty/insurance claims.
Equipment Safety	Expensive laptops can be damaged by dust, grease, or drops at job sites.	Rugged Dedicated Hardware: Keeps the expensive IT assets (laptops) safe in the office.	Asset Protection: Lowers IT replacement costs significantly.
Process Consistency	New technicians may miss subtle defects due to lack of experience.	Playback & Verification: Review footage on-site immediately to ensure nothing was missed.	Quality Assurance: Reduces "re-work" visits caused by missed defects.

Solving Critical Workflow Bottlenecks

1. The "Laptop Liability" Problem (Asset Protection)

The Difficulty: Using a standard USB inspection camera usually requires a laptop. In dirty environments (greasy HVAC ducts, wet plumbing, dusty mines), bringing a $1,500 laptop is a financial risk. Laptops are awkward to hold, run out of battery, and are prone to expensive screen damage.
The Solution: This Standalone USB Monitor acts as a "sacrificial" field device. It powers the camera and records data without exposing sensitive IT equipment to harsh elements.
Impact: Decouples inspection from computing. Technicians travel lighter, and the company protects its expensive computing assets.

2. Compliance & Liability Management (The "Proof" Gap)

The Difficulty: In regulated industries (Aerospace, Pharma, Oil & Gas), stating "Inspection Passed" is no longer enough. Auditors and insurance adjusters demand visual evidence. Missing a crack in a turbine blade or a blockage in a pipe can lead to catastrophic liability.
The Solution: The built-in DVR (Digital Video Recorder) creates an unalterable digital trail. Timestamped video files serve as objective evidence that compliance standards were met at a specific time and date.
Impact: Audit-Ready Operations. Reduces legal liability and accelerates insurance claim processing with undeniable visual proof.

3. Predictive Maintenance Trending (Root Cause Analysis)

The Difficulty: Corrosion and wear happen slowly. A technician looking at a live feed once a month might miss the subtle progression of rust or micro-fractures because they rely on human memory.
The Solution: By archiving inspection footage on SD cards, maintenance teams can perform Historical Trend Analysis. Comparing today’s footage with last month’s video reveals the rate of degradation.
Impact: Shifts the maintenance strategy from Reactive (fix when broken) to Proactive (fix before failure), maximizing equipment uptime.

4. The "Knowledge Gap" in Training

The Difficulty: Senior technicians carry years of "tribal knowledge" about what specific defects look like. When they retire, that knowledge is lost, and new hires struggle to identify rare issues.
The Solution: The device builds a Digital Library of Defects. Real-world footage of cracks, leaks, and wear patterns becomes the ultimate training curriculum for onboarding new staff.
Impact: Accelerated Onboarding. New technicians reach proficiency faster by studying real case scenarios rather than abstract diagrams.

Special Demands Met: The "PC-Less" Advantage

Zero-Boot Time: Unlike Windows laptops that take minutes to boot and update, this monitor turns on instantly, ready to record in seconds.
Universal Compatibility: Acts as a universal "viewfinder" for Any UVC Camera, allowing you to reuse existing USB borescopes, microscopes, and webcams.
True Independence: With its Built-in 3000mAh Battery, it enables inspections in remote locations (offshore rigs, tunnels, attics) where AC power is unavailable.
Data Security: Keeps inspection data on local SD cards (Physical Air-Gap), ideal for high-security facilities where connecting USB devices to networked laptops is prohibited.

Industrial Use Scenarios

Maintenance & Troubleshooting

Inspect motors, gearboxes, pumps, conveyor mechanisms, lubrication points and confined machinery.

Facility & Field Inspection

Use in HVAC, electrical cabinets, pipeline access points, and narrow service channels.

Industrial Endoscope / Borescope Visualization

Perfect companion for 1.2 mm, 2 mm, 3.9 mm and 5.5 mm endoscope cameras.

On-Site Evidence Recording

Technicians can capture photo/video evidence for reports, audits and remote technical support.

Remote & Harsh Environments

When laptops are unsafe or impractical—high humidity, dusty areas, outdoor sites.

R&D / Lab Testing

Used on engineering benches for prototype checks, component observation and experimental setups.

Retrofit Scenarios

1. Upgrade Your USB Microscope (Soldering & Repair)

Pain Point: Using a USB microscope with a laptop takes up bench space and risks solder splash on the keyboard.
Solution: Plug your microscope into this 7-inch monitor. It sits safely on the shelf, giving you a dedicated, lag-free view of the PCB traces.

2. Mobile Plumbing & HVAC Inspection

Pain Point: Plumbers often buy cheap USB borescopes that connect to phones. But phone batteries die fast, and the app often crashes or spies on data.
Solution: This dedicated monitor offers 3 hours of battery life, reliable buttons (no touchscreen to get dirty), and instant recording evidence for the customer.

3. Chair-side Dental Review

Pain Point: Dentists need to show plaque/cavities to patients instantly without turning around a huge monitor arm.
Solution: Connect a handheld USB intraoral camera. Hand the lightweight 7-inch screen to the patient so they can hold it and see their own teeth live.
