Product Name：8-32mm zoom camera module Vari-focal lens F1.3 8MP 4K 1/1.8'' cmos sensor used for video conference camera and facial recognition camera lens module

Product Advantage:

1, 4X High Speed Motoried Optical Zoom 8-32mm

2, High Resolution 8MP 4K Zoom Module for High Speed IP Security Camera

3, High Speed AF Auto Focus Zoom Camera Module

4, Large Format to  1/1.8'' Cmos, excellent optical performance

Product Specification

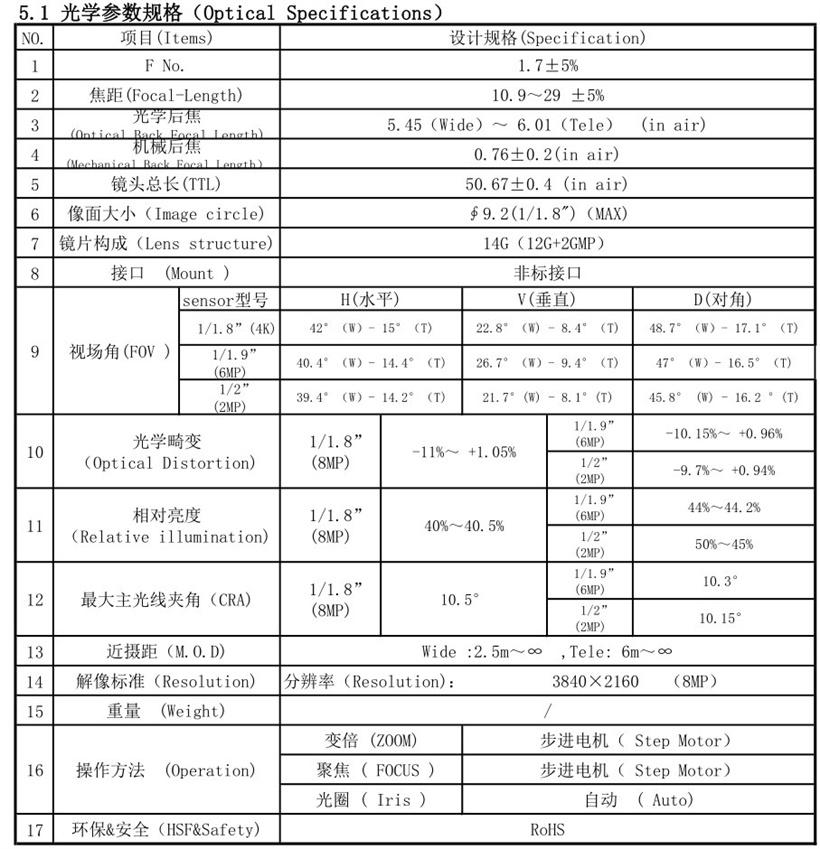

Main Optical technical Specification of 8-32mm zoom Camera Module

1A Zoom Ratio: 4X  8-32mm Varifocal Motorized
1) Aperture F/No.  1.7±5%
2) Effective Focal-Length: 10.9~29 ±5%
3) Mechanical Back Focal Length: 0.76±0.2(in air)
4) Optical Back Focal Length: 5.45(Wide)~ 6.01(Tele) (in air)
5) TTL  50.67±0.4 (in air)
6) Image circle ∮9.2(1/1.8")(MAX)
7) Lens structure: 14G(12G+2GMP)
8) Mount: not standard mount type
9) 1/1.8'' cmos sensor ( 8MP 4K)
HFOV 42°(W)- 15° (T)
VFOV22.8°(W) - 8.4°(T)
DFOV 47°(W)- 16.5°(T)
10) Optical Distortion
1/1.8" (8MP): -11%~ +1.05%
11) Relative illumination
1/1.8"(8MP): 40%~40.5%
12) CRA   1/1.8" (8MP)   10.5°
13) M.O.D Wide :2.5m~∞ , Tele: 6m~∞
14) Resolution: 3840×2160 (8MP)

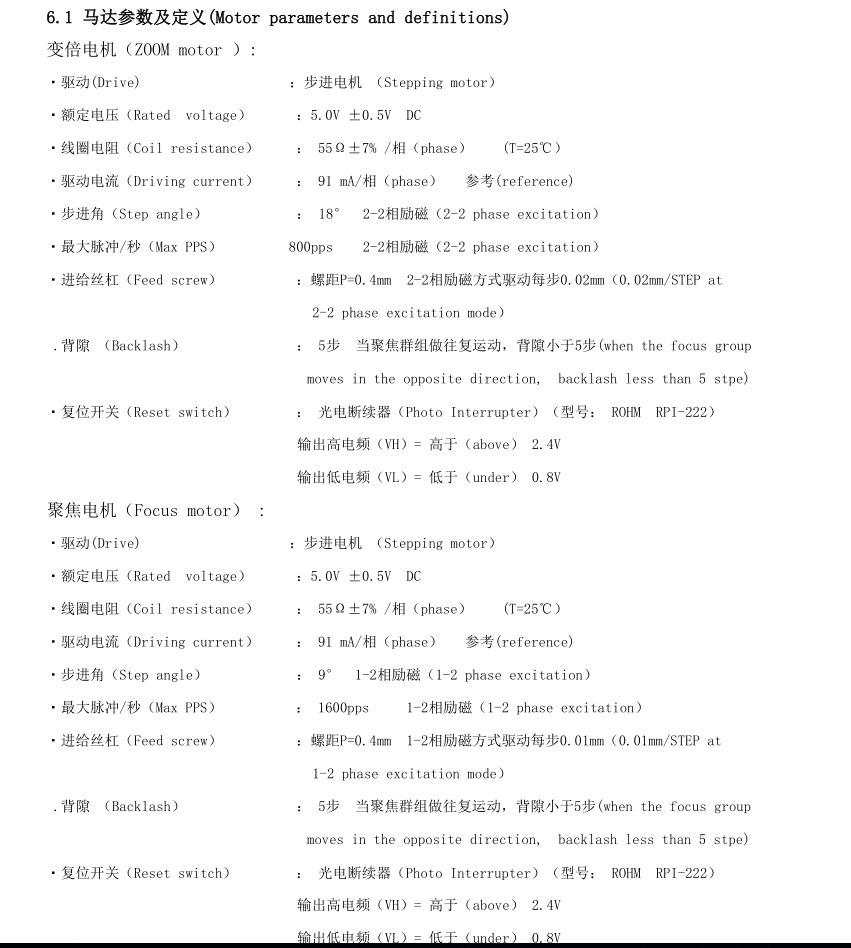

15) operation
ZOOM:  step motor
Focus    step motor
Iris:        Auto
16) (HSF&Safety) RoHS

Product Application

1，PTZ Camera

2, High Speed IP Security Camera

3, Video Conferencing Camera

4, CCTV Zoom Camera

5, Face recognition Camera

6, Forest Camera
