Driver Fatigue Detection Camera DMS

  • Driver Fatigue Detection Camera DMS
  • Driver Fatigue Detection Camera DMS
  • Driver Fatigue Detection Camera DMS
Driver Fatigue Detection Camera DMS
  • model: DMS-01
Product description
Driver Monitoring Camera DMS for truck driver/trucker/Pickups/bus driver

Product Details

China 720P Driver Fatigue  Monitoring Camera, AI DMS Camera for Bus and Truck Driver, Driver Status Monitoring Camera ( DSM)


The Introduction of DMS system and DMS Camera

The driver monitoring systems DMS is to alert the driver when signs of drowsiness or distraction (smoking, phone-call etc) are detected. Drivers receive an audio warning, while fleet managers receive an alert - which can include a photo capturing the incident.

DMS Camera is an artificial intelligence AI device based on image recognition technology to monitor the driver's status and effectively perform sound and intelligent intervention on driver's fatigue state, distracted driving, dangerous driving behavior ,identification and other bad driving behaviors. For improve the fleet management and better manage the drivers, it can integrate with GPS tracker, Mobile DVR or other telematics via RS232 interface, and can send the pictures and videos to the platform when the events happened.

Product Feature of DSM Camera

1, Using 1 million progressive scan Cmos, professional face recognition chip

2, Support AHD coaxial HD output, effective pixel 1280*720

3, Using professional LEDs without red storms to effectively protect the eyes

4, Imported professional filter photosensitive film, wide channel recognition rate is high

5, Built-in special program for face recognition to assist in improving the recognition effect

6, Support DC5V-24V wide voltage, -40 degree to +80 degree working temperature

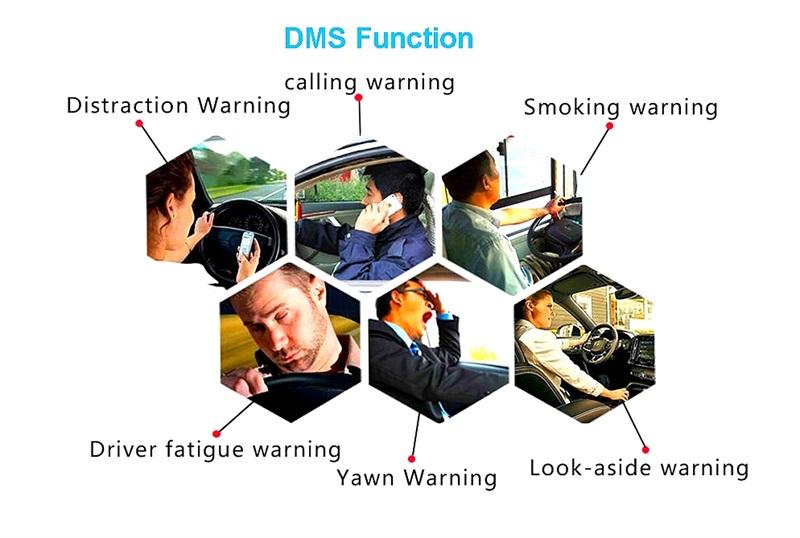

Main functions of Driver Monitoring Systems Cameras
(1)Fatigue driving: When the terminal detects the driver is closing eyes, yawning, overtime driving or other behaviors, the device would make a fatigue driving sound warning.
(2)Calling: When the driver is detected to answer the phone, the device would make a sound warning.
(3)Distraction: When the driver is detected not looking straight forward or bow his head, the device would make a sound warning.
(4)Smoking: When the driver is detected smoking, the device would make a sound warning.
(5)Lens blocking: When the camera video signal is detected to be normal but no facial features are detected, the device would make a sound warning.
(6)Infrared blocking sunglasses recognition: It can recognize if the drivers are wearing infrared blocking sunglasses in all working conditions, including but not limited to day, night, forward light, backlight, side light, shaded sunlight alternately flashing, vehicle vibration, etc.


The DSM Camera Can detect Following situation:

1).Fatigue driving warning (eyes closing, yawning)

2).Distraction driving warning (Looking around)

3).Smoking warning

4).Calling warning

It detect distracted, drowsiness, Yawning, Phone use and smoking situation and give warning to driver to prevent accident and give warning the situation



Product Specification

Cmos Sensor

GC2053 CMOS 1/2.9 inch


DMS software

The camera have built-in algorithm or program of various DMS detection System


Pixel size

2.8μm*2.8μm


Video Type

PAL/NTSC defaultPAL


Effective resolution

1280H*720V 1 mega pixels


Synchronization system

Internal synchronization


Vertical sync frequency

50Hz / 60Hz


Minimum illumination

0.001Lux/F1.2


Video output

1.0vp-p, 75Ω


Gamma coefficient

0.45


AGC

Auto


WDR

No


Sound-to-noise ratio

More than 48dB


White balance

Auto


BLC

Auto


Optical lens

2.8mm or 3.6mm optional

f=2.8mm

f=3.6mm

HFOV

105°

80°

DFOV

125°

100°

Infrared light effective distance

1-2 meter

IR-CUT

no

Audio-MIC

yes

currency

DC12V 150mA±10% (IR LED light on)

Voltage

DC5-16V

Working Temp

20°C~70°C , RH95 MAX

Storage Temp

30°C~80°CRH95 MAX

Net weight

60g

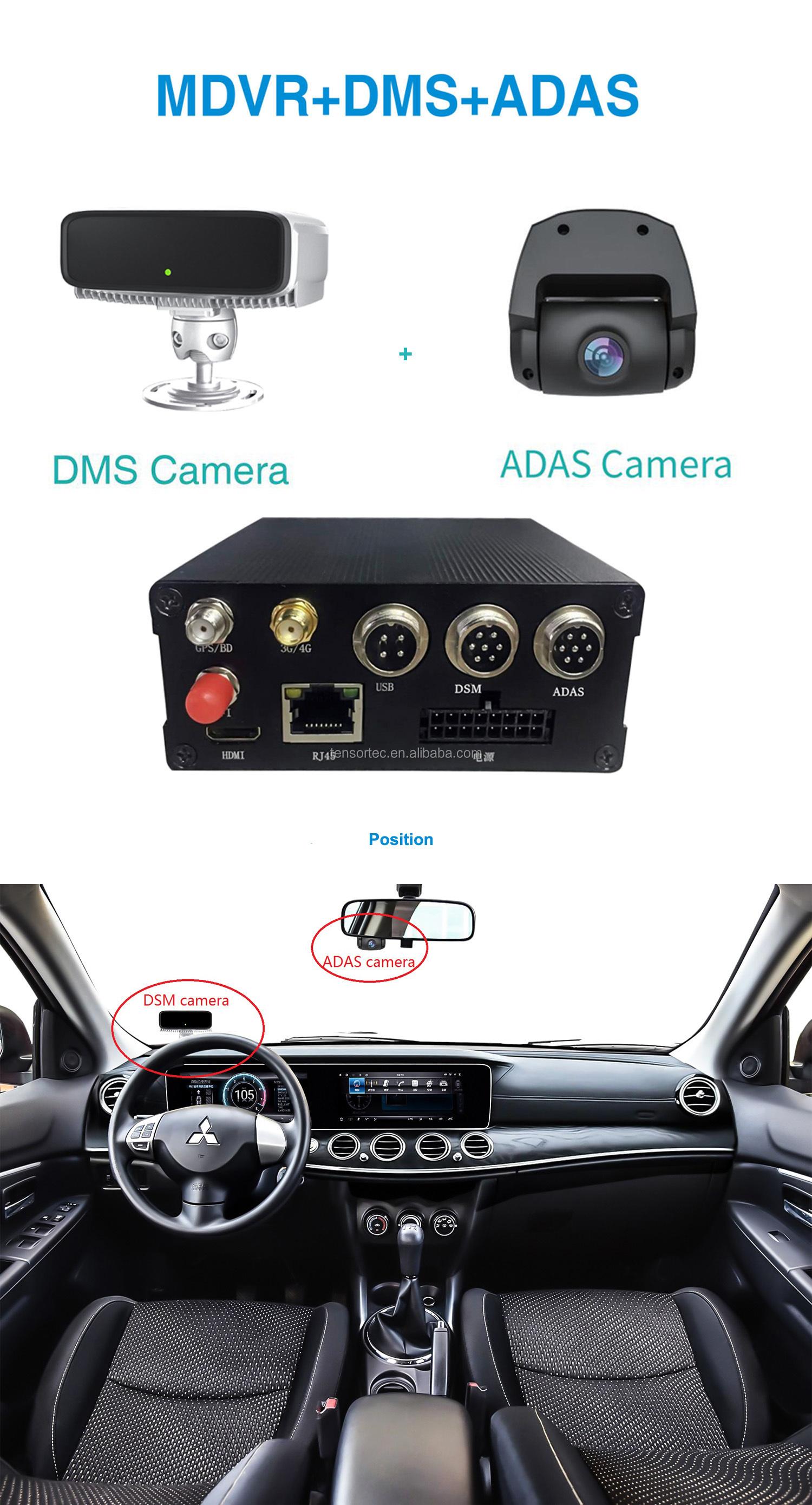

Note: DMS Camera could not work alone, it have to connect and work with MDVR or related Main Terminal that support or have function of Driver Monitoring Systems etc.

Product Application

AI DMS driver status intelligent warning terminal, built-in image intelligent processing core algorithm independently developed by our company, using the special camera to collect the driver's fatigue status, driving calls, yawning, driving smoking, looking around, and changing reminders. The image is analyzed and judged by the host core analysis board to realize the dynamic monitoring of the driver's behavior around the clock, and transmitted to the monitoring platform through the serial port external GPRS/3G/4G device. At the same time, the device prompts the driver to pay attention to the driving safety.

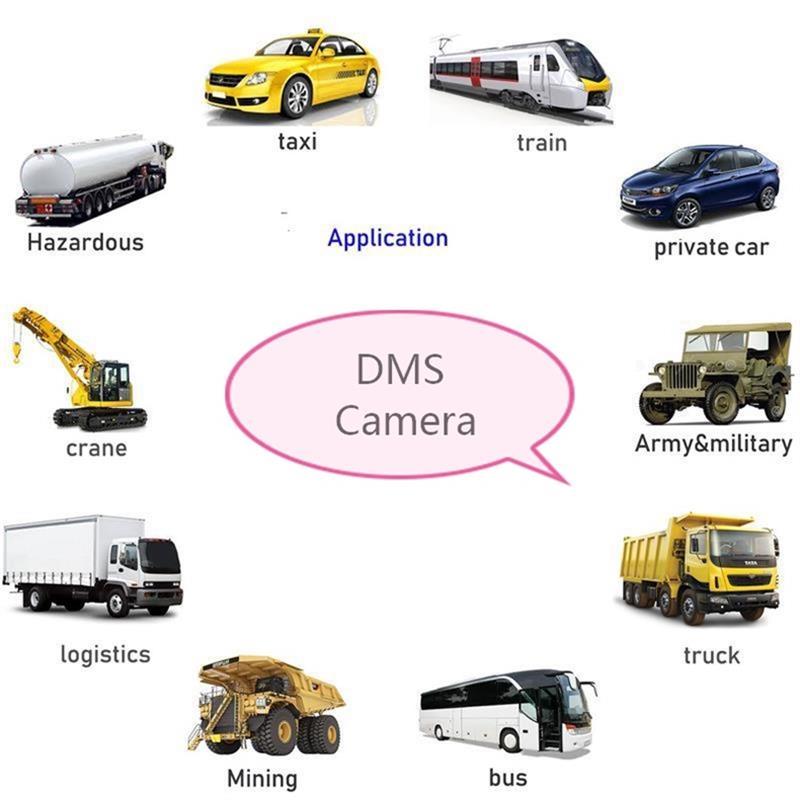

The Driver Fatigue Detection Camera can work for and used in Semi trucks, Commercial Truck,Tanker truck,Transport Logistics vehicles, Trailer, VAN,Articulated dump truck,Rigid truck, Truck-trailer combination, Longer Heavier Vehicles, Bulk truck, Container- / hooklift truck,Tipper truck, trailers and towed machines, Tipper, Skip Lorry, Sweeper,Hooklift,Quarry Dumper

Meanwhile For Heavy Equipment,Port Harbor Crane, Tower Crane, Container Stacker Crane Equipment, Material Handler, Excavator, Wheel loader,Crusher, Off-highway truck,Bulldozer, Vibratory Soil Compactor,Skid steer loader,Backhoe loader and other construction machinery, Telehandler,Crane Truck etc




6. Important Function of Driver Fatigue Monitoring Camera

(DMS) is an advanced vehicle active safety intelligent prevention and control system based on driver's abnormal behavior analysis algorithm. The system recognizes the driver’s driving status in real time, gives alarms for various current dangerous driving and fatigue driving behaviors, and reminds the driver to pay attention to safety by voice; and automatically saves abnormal driving pictures, videos, location information, time information, license plate information, and collision information , The alarm information is automatically uploaded to the vehicle management center as evidence for preservation.

Specific functions of the fatigue driving early warning system:

Driver swiping face authentication, driver doze detection when driving, driver yawn detection, driver smoking detection, driver driving phone call detection, driver inattention detection when driving, driver leaving post/camera occlusion detection, possible The driver wears myopia and most sunglasses

The fatigue driving warning system is suitable for most weather conditions such as day, night, rain and snow. It can be installed in buses, taxis, passenger vehicles, freight vehicles, dangerous goods transport vehicles, school buses, ballast trucks and other "two passengers and one danger" On the vehicle.
