Choosing Explosion-Proof Camera Systems for Hazardous Industrial Zones

Introduction

In hazardous industrial environments—where flammable gases, vapors, or combustible dust pose constant risks—ensuring safety and operational continuity is a top priority for engineers. Standard cameras are unsuitable due to the risk of sparking or ignition, making explosion proof cameras for hazardous areas essential for surveillance and process monitoring. Shenzhen Novel Electronics’ Industrial explosion-proof AHD camera (model AC-607) is designed to thrive in these high-risk zones, offering ATEX/IECEx-compliant, 316L stainless steel construction, 2MP AHD imaging, and IP68/IP69K protection. This technical blog, tailored for engineers in Europe and the USA, explores hazardous area classifications, safety standards, key camera features, selection criteria, and real-world applications of the AC-607, demonstrating why it’s the ideal choice for explosion-proof CCTV cameras for ATEX & IECEx zones.

Understanding Hazardous Areas and Safety Standards

Hazardous areas are classified based on the likelihood and persistence of explosive atmospheres, as defined by standards like ATEX (EU) and IECEx (global). These zones include:

• Zone 0: Explosive atmosphere is present continuously or for long periods.
• Zone 1: Explosive atmosphere is likely during normal operations (e.g., chemical plants, oil refineries).
• Zone 2: Explosive atmosphere is unlikely but may occur briefly.
• Zone 21/22: Similar classifications for combustible dust (e.g., grain silos, flour mills).

Compliance with ATEX, IECEx, and OSHA standards is non-negotiable. These certifications ensure cameras cannot ignite flammable gases, vapors, or dust. For instance, ATEX Directive 2014/34/EU mandates equipment safety in explosive environments, while OSHA aligns with US regulations like NEC Class I/II. The AC-607’s optional ATEX/IECEx certification guarantees safe operation in Zones 1, 2, 21, and 22, making it a trusted solution for engineers designing systems for high-risk facilities.

Key Features of Explosion-Proof Cameras

The AC-607 is engineered with features critical for hazardous zones:

• Robust 316L Stainless Steel Housing: Marine-grade 316L stainless steel resists corrosion from acids, alkalis, saltwater, and chemical vapors, ensuring longevity in harsh environments like offshore platforms or chemical plants.
• Sealed, Explosion-Proof Design: Certified to prevent sparks or ignition, the AC-607’s fully sealed housing eliminates risks in flammable gas or dust zones, meeting stringent ATEX/IECEx standards.

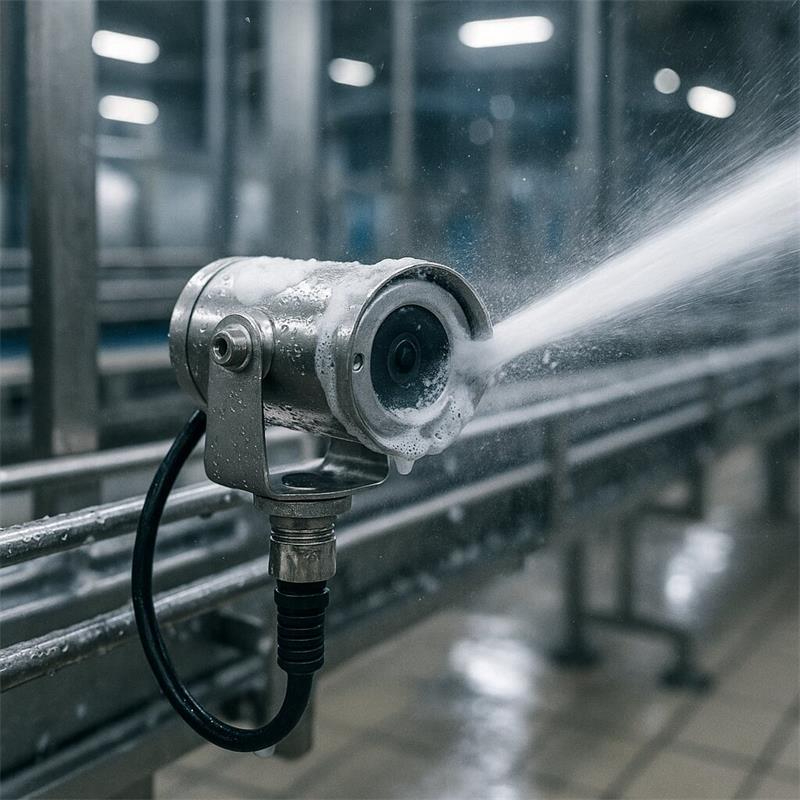

• IP68/IP69K Ratings: Withstands high-pressure washdowns (100 bar), steam, dust, and water ingress, ideal for hygiene-critical or wet environments (e.g., food processing, marine).
• Extreme Environmental Resilience: Operates reliably from -40°C to +70°C, handling temperature swings in deserts, arctic oilfields, or high-heat boiler rooms.
• 2MP AHD Imaging with Night Vision: The 1/2.7" CMOS sensor delivers 1080P@25fps with 20m IR night vision (36 IR LEDs), ensuring clear visuals in low-light conditions without external lighting.
• EMI-Resistant AHD Technology: Analog High Definition (AHD) offers low-latency, EMI-resistant video over 100m coaxial cables, outperforming USB (5m limit) and IP cameras (network-dependent) in high-EMI zones.

These features make the AC-607 a robust, reliable choice for explosion proof cameras for hazardous areas.

Selecting the Right Explosion-Proof Camera System

Engineers must align camera specifications with project requirements:

• Assess Hazardous Zone Needs: Identify the zone (e.g., Zone 1 for gas, Zone 21 for dust) and ensure ATEX/IECEx compliance. The AC-607’s certifications cover diverse hazardous environments.
• Resolution and Lens Options: The 2MP resolution provides sufficient detail for process monitoring or security. Customizable lenses (2.8mm-12mm, M12/CS mount) allow tailored fields of view, from wide-angle (grain silos) to focused (machinery inspection).
• Connectivity and Integration: AHD’s compatibility with standard DVRs simplifies integration into existing systems, unlike IP cameras requiring network infrastructure. The AC-607’s 4-pin aviation cable supports power and signal, streamlining setup.
• Environmental Durability: Prioritize IP68/IP69K for washdowns or corrosion resistance (316L stainless steel) in chemical or marine applications.
• Power and Mounting: The AC-607’s DC 12V (9-15V) input and flexible mounting options (ceiling, wall, pole) ensure adaptability to diverse installations.

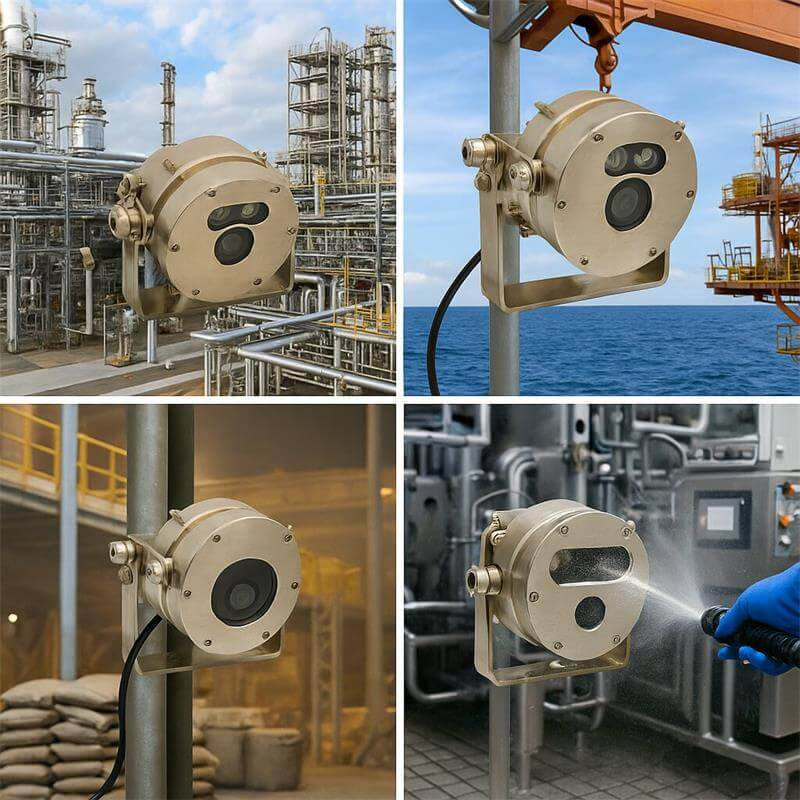

Applications in Hazardous Industrial Zones

The AC-607 excels in high-risk industries, as demonstrated by five 2025 case studies from Europe and the USA.

1. Oil and Gas Production (USA, Texas)

Challenge: A Permian Basin oilfield needed cameras for Zone 1 drilling rigs exposed to flammable gases and dust. Standard cameras risked ignition and corroded quickly.
Solution: The AC-607’s explosion-proof CCTV cameras for ATEX & IECEx zones were installed with 6mm lenses for wellhead monitoring. The 316L stainless steel housing resisted corrosion, and AHD’s 100m range ensured stable DVR feeds.
Result: Leak detection improved by 35%, preventing $400,000 in losses, per a 2025 Oil & Gas Journal report. Night vision enhanced 24/7 security, reducing vandalism by 50%.

2. Chemical Plants and Refineries (Germany, Ludwigshafen)

Challenge: A BASF chemical plant required industrial explosion-proof AHD camera systems for Zone 2 reactor monitoring. High EMI and corrosive vapors degraded IP cameras.
Solution: The AC-607’s ATEX-certified housing and EMI-resistant AHD signal provided reliable 1080P visuals. The IP69K rating withstood chemical washdowns, and a 4mm lens ensured detailed imaging.
Result: Safety incidents dropped by 40%, saving €300,000 in downtime, per a 2025 Chemical Engineering report. The system’s durability cut maintenance costs by 55%.

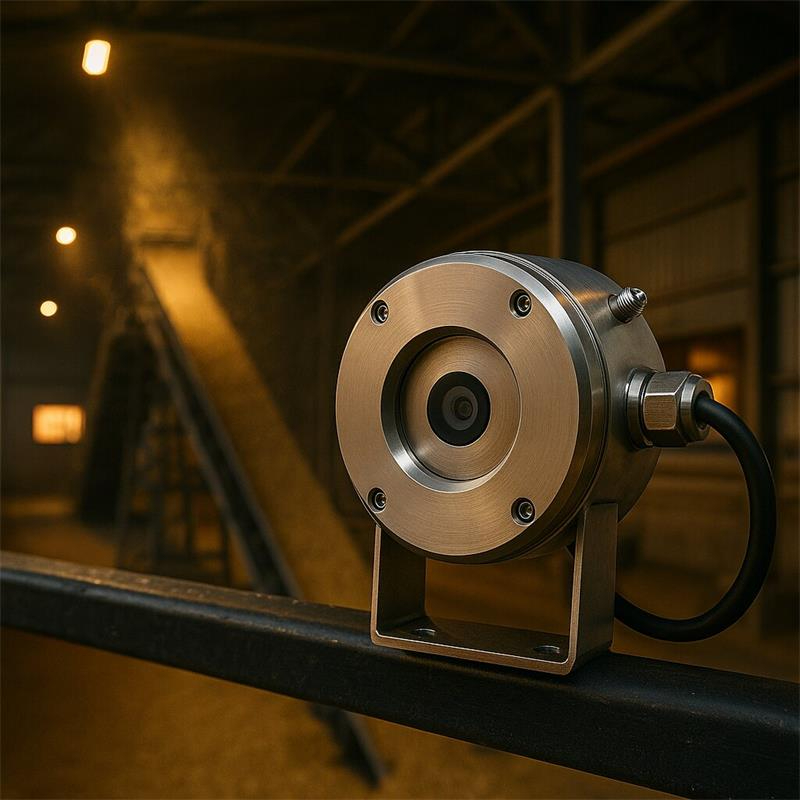

3. Grain Silos and Dust-Prone Environments (France, Normandy)

Challenge: A grain processing facility needed cameras for Zone 21 dust-prone silos. Combustible dust risks and frequent cleaning cycles broke standard cameras.
Solution: The AC-607’s IP69K and explosion-proof design was installed with a 2.8mm wide-angle lens. AHD’s low latency delivered real-time dust level monitoring to a DVR.
Result: Dust explosion risks fell by 45%, avoiding €200,000 in damages, per a 2025 AgriBusiness Review. The camera’s washdown resistance ensured continuous operation.

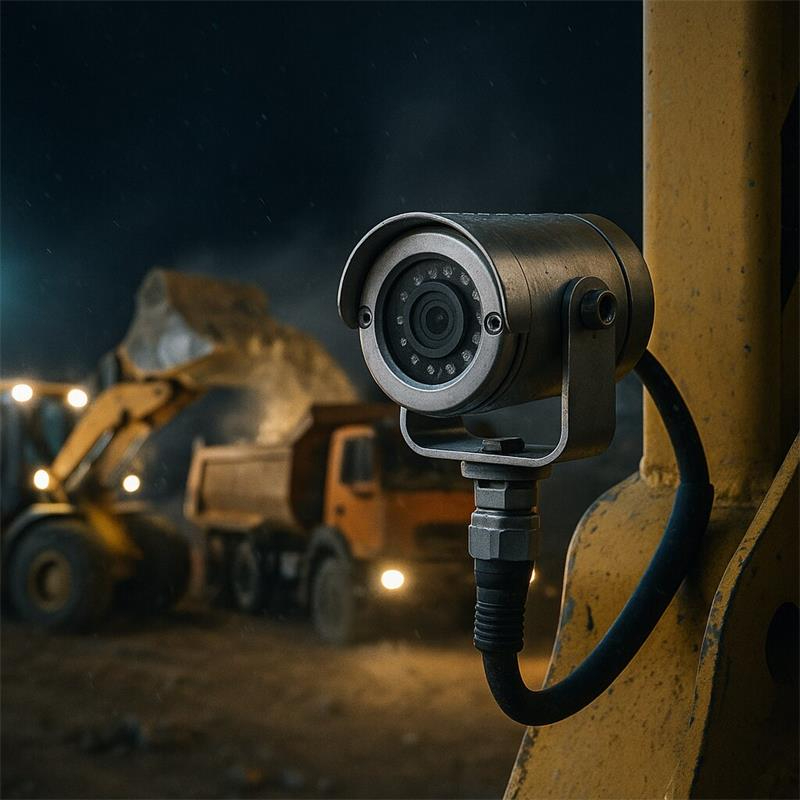

4. Mining Operations (UK, Yorkshire)

Challenge: A coal mine required cameras for Zone 2 gas and dust zones to monitor conveyor systems. High EMI and humidity disrupted IP camera feeds.
Solution: The AC-607’s explosion proof cameras for hazardous areas were mounted with 8mm lenses. The 316L housing and IP68 rating resisted moisture, and AHD’s EMI resistance ensured stable video.
Result: Equipment uptime improved by 30%, saving £150,000 annually, per a 2025 Mining Technology report. Night vision enhanced worker safety in low-light tunnels.

5. Marine and Offshore Facilities (Norway, Stavanger)

Challenge: An offshore platform needed cameras for Zone 1 areas exposed to saltwater spray and high humidity. Standard cameras corroded, disrupting safety monitoring.
Solution: The AC-607’s 316L stainless steel and IP69K rating ensured corrosion resistance. A 12mm lens and 20m IR night vision provided clear visuals for platform operations.
Result: Downtime dropped by 35%, saving NOK 2.5 million, per a 2025 Offshore Engineer report. The system’s reliability boosted crew safety.

Why Shenzhen Novel Electronics?

Shenzhen Novel Electronics’ AC-607 is a trusted solution for engineers:

• Certified Safety: ATEX/IECEx compliance ensures legal operation in hazardous zones.
• Robust Design: 316L stainless steel and IP68/IP69K ratings guarantee longevity in corrosive, wet, or dusty environments.
• High-Performance Imaging: 2MP AHD with 20m IR night vision delivers reliable visuals.
• Customization: Lens options (2.8mm-12mm), mounting brackets, and OEM/ODM support tailor the system to your needs.
• Technical Support: Direct engineer-to-engineer assistance and SDKs streamline integration, backed by ISO 9001 certification.

Conclusion & Call to Action

The AC-607 industrial explosion-proof AHD camera ensures safety and reliability in hazardous zones, from oilfields to grain silos. For engineers seeking explosion proof cameras for hazardous areas, Shenzhen Novel Electronics delivers certified, durable solutions. Contact us at office@okgoobuy.com or WhatsApp +86-13510914939 to request detailed specifications or samples. Download our technical whitepaper to optimize your surveillance strategy today!
