The Goobuy 6×6mm Micro AHD camera AC-602 is an ultra-miniature analog HD module engineered for embedded industrial systems where space is extremely limited. It delivers 720P/1080P AHD video with near-zero latency over coax, offering strong EMI resistance, long-distance transmission and stable imaging inside machinery, robots and field-service tools. Designed for OEM integration, the module supports custom lenses, cable assemblies and housings to match different mechanical and inspection applications



Product Overview

The Goobuy AC-602 is an ultra small Dia6mm camera module, measuring only 6×6 mm, designed as a miniature board camera 6x6mm for space-constrained applications. This embedded vision module small size provides 720p AHD video with low latency over 75 Ω coax, making it an ideal micro AHD camera for embedded vision tasks in robotics, industrial tools, and inspection devices.

For OEM projects, it can be supplied as an OEM miniature AHD camera with custom lens, giving engineers flexibility in field of view, cable length, and integration method. Whether used as a tiny analog HD camera module low latency for retrofit systems, or as a tiny AHD camera industrial endoscope in narrow pipelines, AC-602 ensures robust and compact performance.

The Smallest Vision: Tiny 6x6mm Micro embedded camera AHD, Ideal for embedded, industrial, robotics, and smart inspection applications. Customizable OEM solution.



Where Does Goobuy 6x6mm Camera AC-602 Fit?

• Industrial Endoscopes: Fits perfectly inside <8mm diameter probes for pipe and engine inspection.

• Concealed Monitoring: Small enough to be hidden in machinery gaps, ATM bezels, or door frames for discreet security.

• Robot End-Effectors: Adds vision to robotic grippers without adding bulk or weight, thanks to its featherlight board-level design.



Integrate discreet, high-definition surveillance and monitoring with our revolutionary 6x6mm micro AHD camera module, offering a choice of 90° or 120° wide-angle views in crystal-clear 720P.  6*6mm ultra compact AHD board camera for industrial use and embedded vision systems

• Miniature Size, Maximum Impact
• Key Benefits (Bullet Points/Icons):
  • World's Smallest (6x6mm): Unprecedented integration possibilities in highly space-constrained applications.
  • Full 1080P AHD Resolution: Deliver sharp, detailed high-definition video over long distances via coaxial cable.
  • Wide-Angle Lens Options (90°/120°): Capture a broad field of view from a tiny footprint.
  • Robust AHD Signal: Reliable, low-latency video transmission, less prone to interference than IP for certain uses.
  • Versatile Integration: Ideal for embedding in commercial products, industrial equipment, or custom security solutions.
  • Reliable Performance: Designed for continuous operation in various commercial and industrial environments.



screenshot compressed picture when 6*6mm AHD camera module made video and worked in daytime, July, 2024

( the following image had been compressed much because of website design request)



What troubling problems Goobuy AC-602 6*6mm AHD camera can solve in industrial application？

Problems Solved:

1. Machine Vision in Compact Spaces:
   • Problem: Integrating cameras into small machine components, robotic end-effectors, or inspection tools for quality control, alignment, or process monitoring.
   • Solution: The 6x6mm size allows direct embedding into machinery where larger cameras would obstruct movement or require redesign. The wide angle can capture a broader view of a production line or work cell.
   •
2. Remote Monitoring of Critical Equipment:
   • Problem: Monitoring the internal workings of machinery, pipelines, or dangerous areas from a safe distance, often in environments with existing coaxial infrastructure.
   • Solution: AHD's long-distance capability and zero latency provide reliable real-time video feedback, essential for operational safety and predictive maintenance.
   •
3. Harsh Environments:
   • Problem: Deploying cameras in areas with EMI (Electromagnetic Interference) or where complex network cabling is difficult to maintain.
   • Solution: Coaxial cables are often more robust against EMI than Ethernet cables in industrial settings. The simple, direct AHD connection reduces potential points of failure.
   •
4. Robotics and Automation:
   • Problem: Equipping robots with vision for navigation, object detection, or pick-and-place operations in compact robot cells.
   • Solution: Its tiny size and wide FOV are perfect for close-up situational awareness for robot arms or mobile robots.



Special Demands Met:

• Cost-Effective Upgrades: For factories or plants still relying on older analog CCTV systems, this AHD module allows for an HD upgrade using existing coaxial cables, significantly reducing installation costs and downtime.
• Ruggedness: AHD systems are generally simpler with fewer complex digital components, often making them more robust and less prone to software glitches in harsh industrial conditions.
• Real-time Response: Zero-latency video is crucial for safety applications, real-time process control, and immediate operator feedback.
• Discreet Integration: For specific industrial aesthetic or tamper-proof requirements, the micro-size allows for very discreet installation.

Embedded AHD 6X6mm smallest cctv camera, Tiny board-level cameras for embedded applications ( AHD DVR/AHD monitor compliant)

HD EMBEDDED VISION MODULES FOR SEAMLESS INTEGRATION ON MACHINE VISION AND INDUSTRIAL & COMMECIAL SECURITY

Transforming Commercial & Industrial Applications of Goobuy 6*6mm AHD camera
New Perspectives for Diverse Sectors
• Visuals: Icons or application-specific images.
• Commercial Security: Discreet ATM cameras, hidden surveillance, Tiny Industrial surveillance place.
• Retail & POS: Integrated into checkout systems, shelf monitoring, loss prevention.
• Industrial OEM Integration: Embedded in machinery, robotics, quality control devices where space is at a premium.
• Medical Devices: Compact imaging for non-invasive inspection tools.
• Smart Home/Building Integration: Ultra-small sensors for smart devices.
• Logistics & Supply Chain: Monitoring inside small packages or conveyors.

• Extremely small board-level camera for embedded vision



Technical Specifications

Model No.	Goobuy AC-602-mp
Sensor	CMOS 1/4” MP AHD
Resolution	1280*720P@25FPS, PAL (NTSC is optional)
Output	AHD, RCA / BNC
FOV	120°  (30°~120° optional)
Focus	Manual
White balance	Auto

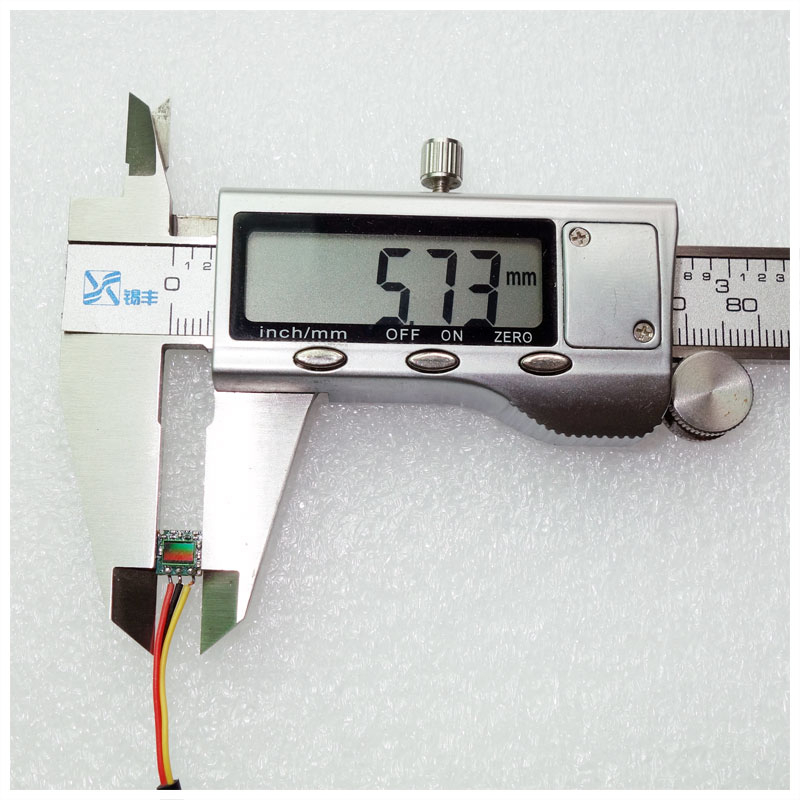

Dimension	PCB: 6*6mm
Length of cable	20cm~2M, standard 0.5M
Power	12V / 50mA
Temperature	-10~+60℃

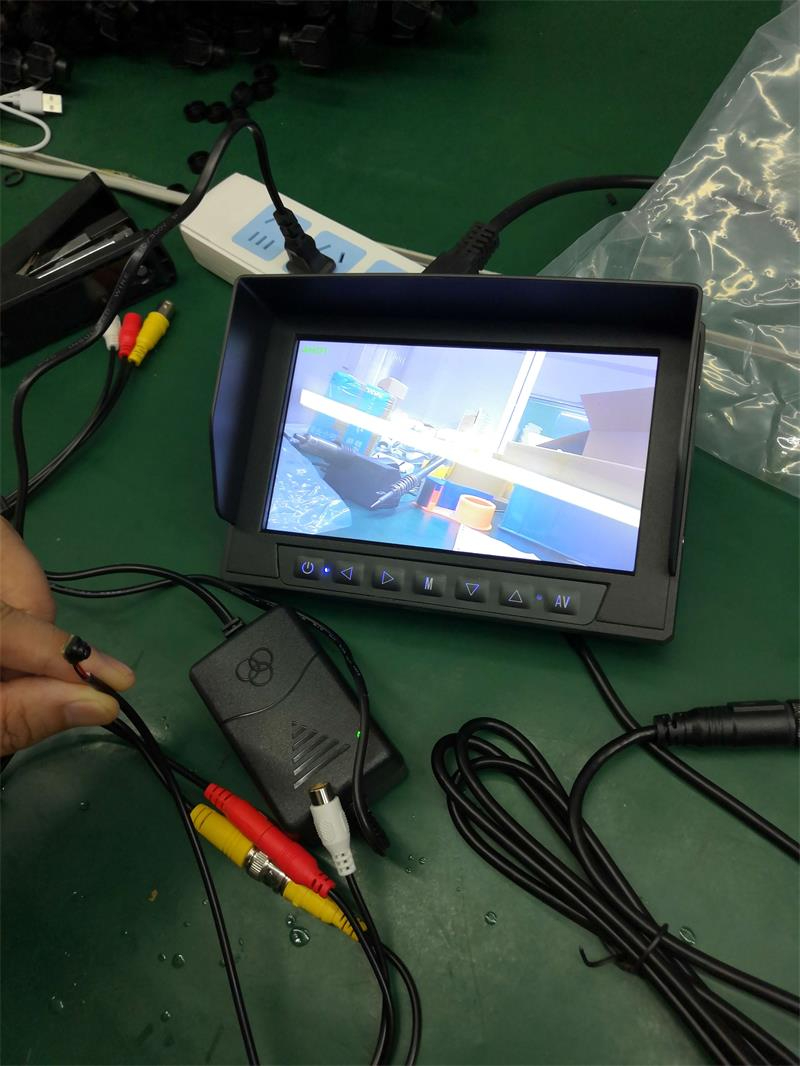

it can work with our 7/10inch monitor display together as one portable miniature industrial endoscope camera too



NDAA Compliance Statement:

"This Goobuy 6*6mm micro AHD camera module AC-602 is manufactured in compliance with the National Defense Authorization Act (NDAA) Section 889."



Frequently Asked Questions (FAQ)

Q1. What is the main advantage of Goobuy 6×6mm Micro AHD camera AC-602 compared with USB/IP camera modules?

AHD provides low-latency analog HD video immune to EMI, making it much more stable inside industrial machinery and noisy environments.



Q2: "Does the 120° wide-angle lens have fisheye distortion?"

Yes, at 120° FOV on such a micro lens, there is some barrel distortion. This is intentional to maximize situational awareness in tight spaces (like pipes). For applications requiring flat images (e.g., OCR), we can swap to a 90° zero-distortion lens.



Q3: What is AHD technology?

AHD (Analogue High Definition) is a technology that allows high-definition video to be transmitted over traditional coaxial cables, offering better resolution than standard analogue (CVBS) while retaining the simplicity and cost-effectiveness of analogue systems

Q4: Can this Goobuy AC-602 miniature Camera module be used with existing analogue CCTV systems?
It is compatible with AHD-compatible DVRs. It is not directly compatible with older, standard analogue (CVBS) DVRs unless the DVR supports AHD input. Please check your DVR specifications.



Q5: Is this camera suitable for outdoor use?
The module itself is not inherently weatherproof.  It is a board-level embedded vision module small size
we have another IP67 waterproof AHD camera AC-606



Q6: Is latency an issue?
A: No, it is a tiny analog HD camera module low latency, ideal for real-time inspection or robotics.



Integrator Note: AHD vs. CVBS

"Please note: This is a 720P AHD camera. It provides much higher resolution than traditional analog (CVBS) cameras but requires an AHD-compatible DVR or Monitor to display the image. It will not show a picture if plugged directly into an old RCA TV port. Goobuy supplies compatible 7-inch AHD testing monitors for rapid development."



Success Stories from Our Customers



• "Perfect for Our Discreet Retail Security!"
  • "We needed a truly hidden camera solution for high-value displays. The 6x6mm AHD module from Novel was incredibly easy to integrate and provided the crisp 720P footage we needed. Our clients are thrilled with the covert protection." - Mark T., Security Integrator, [UK CCTV Solutions Ltd.]
  •
• "Revolutionised Our Fleet Vehicle Monitoring"
  • "Embedding these tiny AHD cameras into our bus fleet has given us invaluable insight into passenger and driver behaviour. The wide 120-degree view and robust AHD signal have made a huge difference to our operational security." - Sarah J., Operations Manager, [National Bus Company Thailand]
  •
• "Critical for Our Automated Assembly Line"
  • "Integrating the Goobuy 6x6mm AHD camera into our compact inspection robot has been a game-changer. The 720P clarity helps us identify defects at speed, and the AHD output ensures reliable video transmission within our factory setup." - Ben C., Automation Engineer, [Precision Manufacturing Turkey]
