How Micro AHD Camera + 7-inch DVR Display Sets Are Transforming Field Maintenance

In the fast-paced world of industrial equipment maintenance and repair, efficiency, portability, and reliable visual inspection are critical. Field technicians and service engineers face a daily challenge: they must diagnose and repair complex machinery often located in confined spaces, harsh environments, or remote sites — all while ensuring minimal downtime and safety.

Traditional inspection setups usually rely on bulky cameras connected to laptops or stationary monitors, which are cumbersome and slow to deploy. That’s why micro AHD (Analog High Definition) camera modules paired with rugged 7-inch DVR displays are rapidly becoming the go-to solution for field maintenance teams across the United States and worldwide.

Why Choose Micro AHD Camera + DVR Display Sets for Field Maintenance?

Compact Yet Powerful Imaging

At the heart of these solutions is a 2MP micro AHD camera module measuring just 15×15mm. This tiny camera is small enough to be inserted into hard-to-reach areas of industrial equipment — gearboxes, pipelines, valve assemblies, and more — without disassembly or disruption.

Despite its compact size, it delivers crisp 1080p video with wide-angle lens options (90° to 110°), enabling technicians to get detailed, high-resolution views of internal components.

Instant Visual Feedback with Low Latency

Unlike USB or IP cameras, AHD technology transmits video signals over coaxial cables with near-zero latency, allowing technicians to see live images instantly on the attached 7-inch DVR display. This real-time feedback is crucial when performing precision inspections or aligning components.

Rugged and Portable for On-Site Use

The 7-inch HD display with built-in DVR functionality is housed in a durable, waterproof (IP65) case, built to withstand dusty, oily, or outdoor environments typical in factories, refineries, and construction sites.

Powered by 12V DC input, the display supports portable power sources such as batteries or vehicle power systems, making it ideal for remote or mobile field operations.

Easy Deployment and User-Friendly Operation

The AHD camera connects directly to the DVR monitor via standard coaxial cable, requiring no drivers, software, or complicated network setup. The plug-and-play design means field engineers can quickly set up, start inspections, and record video footage for documentation and analysis.

Practical Applications in the Industrial Field

1. Equipment Maintenance and Troubleshooting

Maintenance crews can insert the micro AHD camera into inspection ports or crevices to detect wear, corrosion, oil leaks, or alignment issues without disassembling machinery — saving valuable time and reducing the risk of additional damage.

2. Pipeline and Vessel Inspection

The system helps technicians visually inspect internal surfaces of pipelines, tanks, and vessels where human entry is impossible or dangerous, enabling proactive maintenance and early detection of problems.

3. Remote and Hazardous Location Inspections

For environments with hazardous gases or extreme temperatures, technicians can use the portable kit to conduct inspections safely from outside the danger zone, reducing exposure risks.

4. Training and Quality Assurance Documentation

The DVR feature allows recording inspection sessions, which can be used later for training new technicians or creating maintenance reports to ensure compliance with safety and quality standards.

Technical Highlights of the AHD Camera + DVR Kit

Component	Specification
Camera Resolution	2 Megapixels (1920×1080)
Camera Dimensions	15×15mm PCB module
Lens Options	90°, 110° wide-angle available
Low Light Sensitivity	≥0.01 Lux
Signal Type	Analog High Definition (AHD)
Display Size	7 inches
Display Resolution	1024×600 pixels
DVR Recording	Built-in SD card slot, supports video record
Waterproof Rating	IP65 (Display) / Optional IP67 (Camera housing)
Power Input	12V DC, supports portable power solutions
Connectivity	Coaxial cable (up to 100 meters)

Why AHD Technology is Ideal for Industrial Fieldwork

Compared to USB or IP cameras, AHD provides:

• Simpler wiring: no need for Ethernet or USB drivers.
• Stable signal over longer cables: critical in industrial settings.
• Immediate video display with no latency, enhancing real-time decision-making.
• Better resistance to electromagnetic interference common in factories.

These factors make the AHD + DVR combination the preferred choice for many industrial service providers and machine vision integrators.

Customer Success Story

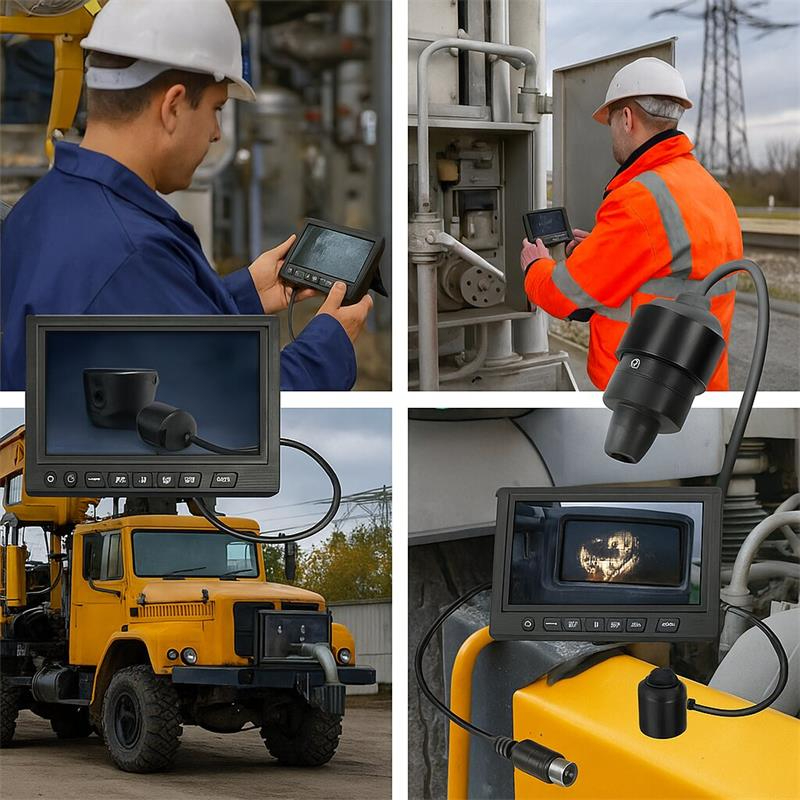

A U.S.-based heavy machinery maintenance company recently adopted our 2MP micro AHD camera AC-501 + 7-inch DVR kit for field inspections of their fleet of earthmoving equipment. The compact camera allowed easy access inside hydraulic components, and the portable DVR enabled quick diagnosis without returning equipment to the workshop.

As a result, they reduced inspection times by 30% and minimized downtime, saving significant operational costs. Additionally, recorded video helped train junior technicians on common failure points, improving overall maintenance quality.

Getting Started with Shenzhen Novel Electronics

At Shenzhen Novel Electronics, we understand the unique challenges of industrial field maintenance. That’s why we offer flexible purchasing options, including small MOQ for pilot projects and customized solutions tailored to specific application needs.

Our technical support team provides integration assistance, helping you quickly implement the micro AHD camera + DVR system in your field operations.

Call to Action

Is your maintenance team ready to upgrade to faster, more reliable visual inspections?
Contact us today for product samples, demo videos, and pricing details.
