    4CH commercial truck DVR camera systems
    • model: MDVR-410
    • Skype:art98997
      Tel:+86 755 2977 5656
      Fax:+86 755 2992 5781
      Add:5F, Building 3B, Hekan industrial area, Road of Wuhe, Bantian,Longgan, shenzhen, China
    Product description
    10.1 inch Touch Screen IPS Display, BSD detection, 720P AHD, 4ch Video,H.265, Support Max 128GB, Parking Security, voice control Video, Loop Recording, Mp5 function optional

    Product Details

    10.1 inch Touch Screen Monitor 4 cahnnel 720P Dash Recording Semi Truck Camera System For Commercial Trucks

    Commercial Truck Camera System

    Product Features:

    10.1 inch 2.5D touch four recorder (four pictures displayed on the same screen), 4 channels of video input

    Allwinner Solution 2.5D tempered glass touch screen Monitor

    Standard support PAL/NTSC, input voltage 12-35V, maximum support memory 128G

    High-definition high light IPS screen,Display resolution 1024*600

    AHD 720P Vehicle camera, Reversing trigger, Good Night Vision full color camera

    Three 5m video cables, one 15m video cable with trigger and shield

    Truck, bus, school bus monitoring program

    MP5 play function optional

    Truck Camera Systems With BSD

    Product Specification:

    All in one AHD Vehicle Camera Systems With BSD for semi-truck, trailer, bus, heavy duty, RV, Van

    Item name

    Technical data

    product name

    panoramic 4CH Truck Camera Systems


    Allwinner Chipset


    4pcs AHD 720P camera, full starlight color, Starlight night vision

    DVR Recording

    Monitor with Built-in DVR module can record 4 ch cameras video at same time

    Video pixel

    1.3megapixels HD720P

    Monitor Display screen size

    10.1inch IPS Digital 2.5D touch Screen Monitor

    Resolution of Monitor Display

    IPS1024*600, Tempered glass material

    AHD Monitor

    BSD Blind Spot detection

    Built-in BSD in the Monitor, the driver can check it also receive the remind at first time


    A+ class 6 glass high resolution wide Angle lens


    Chinese (Jane), English

    Video Format

    TS Streaming Media

    video file format


    trigger display

    Automatically switches to the corresponding camera view

    Video resolution


    Color Effect


    Recording in an uninterrupted loop

    Seamless loop recording, no loss of seconds

    Switch on and off with the car

    Support car ignition boot recording flameout shutdown

    Year, month, day



    DDR3 512M

    lens Aperture


    night vision function


    memory card

    C10 TF card(Support high speed32GB-128GB)

    RVC ( reversing control)

    Support Reversing trigger



    Voice Control


    Built-in audio


    Current frequency




    Material of Camera Case

    Metal, Colorful Case custom-made/OEM

    MP5 play function

    Optional add or customize


    Three 5m video cables, one 15m video cable with trigger and shield

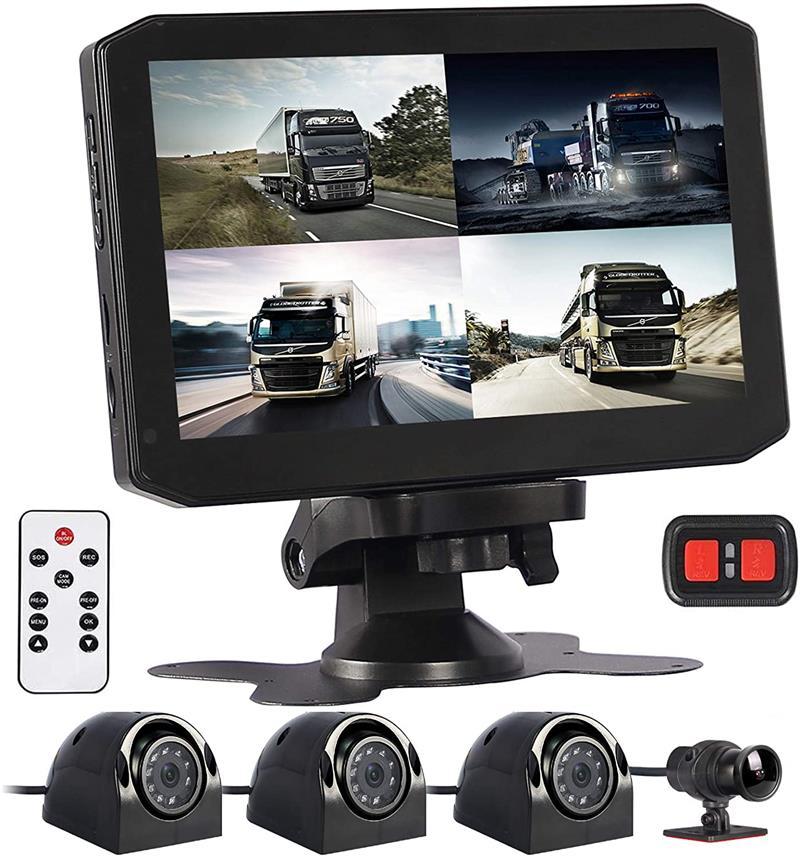

    Vehicle Camera System

    4*AHD Vehicle Cameras, 1*touch Screen Combo DVR with built-in BSD function


    Semi Truck, Heavy duty, trailer, farm machinery, bus, SUV

    truck DVR specifications

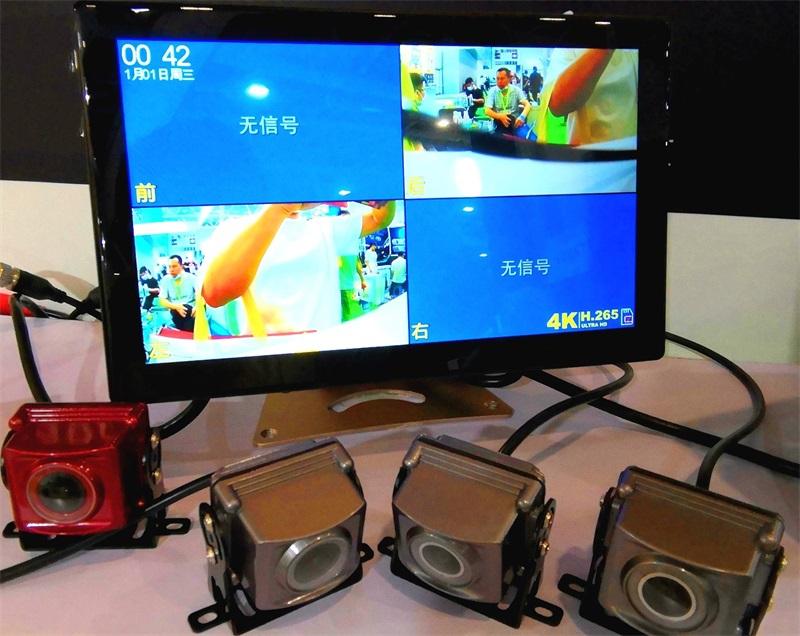

    4CH Commercial Truck Camera Systems

    Why need BSD Blind Spot detection system on your truck bus Vehicles?

    BSD blind spot detection system (Blind Spot Detection System) is sometimes called blind spot monitoring system BSMS (Blind Spot Monitoring System), or LCDAS Lane Change Decision Aid System (Lane Change Decision Aid System), is a device based on short-range microwave radar detection technology It is used to monitor moving objects (such as cars, motorcycles, bicycles, pedestrians) behind the blind area of the inner and outer rearview mirrors, and detect whether there are cars approaching behind the adjacent lanes, and whether there are cars in the blind spots of the rearview mirrors. When it approaches the vehicle, it will send out sound and light signals in a timely manner according to the degree of danger and urgency to assist the driver in avoiding objects in the blind spot and achieve the purpose of safe merging. The blind spot detection system is a key function in the automatic driving assistance system, covering 360° road conditions around the vehicle body at low speeds. Different car companies have different names for this system, which are mainly divided into blind spot monitoring, blind spot monitoring, and blind spot information systems, but in fact they are all the same system.

    Product Application

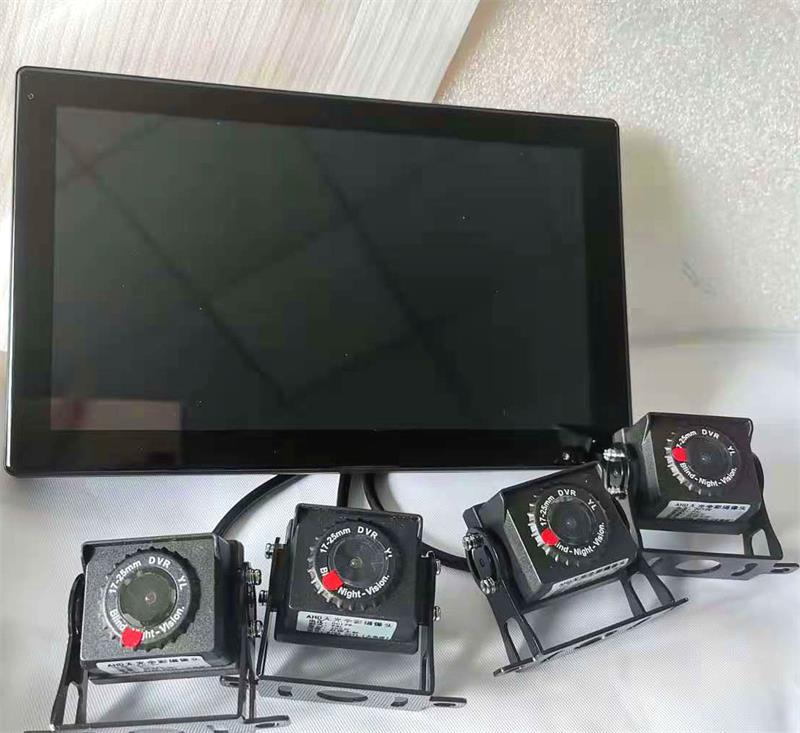

    1, 4CH Truck Camera System With DVR work and apply for Semi trucks, Commercial Truck, Tanker truck, Transport Logistics vehicles, Trailer, VAN,A rticulated dump truck, Rigid truck, Truck-trailer combination, Longer Heavier Vehicles, Bulk truck, Container- / hooklift truck, Tipper truck, trailers and towed machines, Tipper, Skip Lorry, Sweeper, Hooklift, Quarry Dumper

    2, China Vehicle DVR Camera System With BSD work For Heavy Equipment,Port Harbor Crane, Tower Crane, Container Stacker Crane Equipment, Material Handler, Excavator, Wheel loader,Crusher, Off-highway truck,Bulldozer, Vibratory Soil Compactor,Skid steer loader,Backhoe loader and other construction machinery, Telehandler,Crane Truck

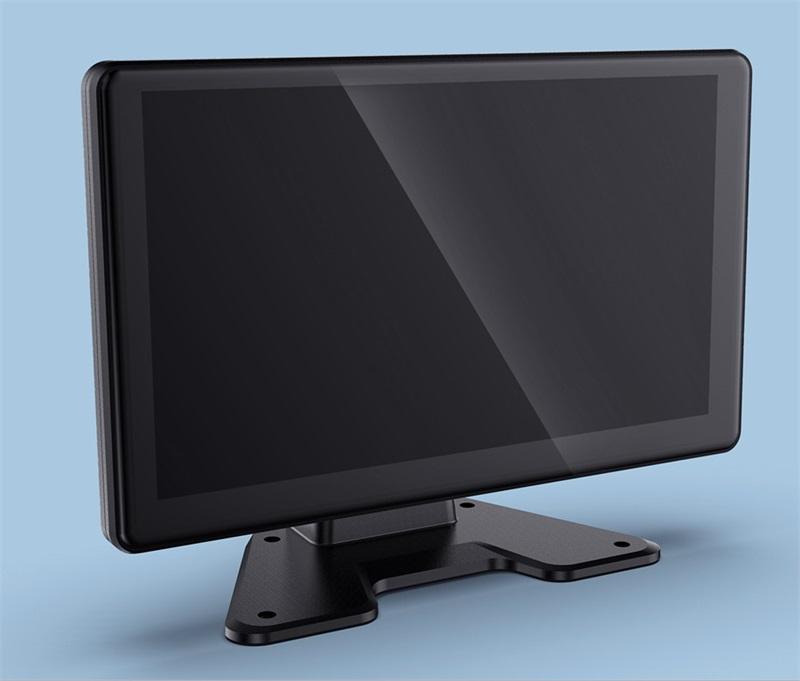

    3, Touch Screen DVR Camera System are also widely used in Passenger Bus, School Bus, City Bus, Travel bus, Coach bus, Sightseeing Bus, Airport shuttle, Autobus, Double Decker Bus, Tourist Bus, Tourist Coach.

    Commercial Truck Camera System application
