The Integrator's Playbook: A Cost-Effective HD-Over-Coax Upgrade for Legacy CCTV Systems

Introduction



For a system integrator, the biggest headache isn't always the new, multi-million dollar construction project. It's the mid-sized commercial client with a 15-year-old analog CCTV system spread across a dozen locations, who wants Full HD quality on a shoestring budget, and with zero operational downtime.

The default answer is often a full rip-and-replace to an IP system. But the cost and complexity of rewiring an entire building—especially older brick-and-mortar structures—can kill a project before it even starts.

This article is a playbook for the savvy integrator who understands that the smartest solution is often the most practical one. We'll break down how a strategic HD over coax upgrade can solve your client's problems, protect your profit margins, and make you look like a hero.



Case Study: Upgrading a Chain of Convenience Stores in Houston, TX



A Houston-based security integration firm we partner with recently won a contract to upgrade the surveillance systems for a regional chain of 20 convenience stores. Their existing systems were a patchwork of ancient, low-resolution analog cameras connected via aging coaxial cables.

The client's primary pain points were:

1. POS Transaction Disputes: The low-resolution cameras at the cash registers couldn't capture clear images of currency or credit cards, leading to frequent disputes.

2. General Area Blind Spots: The old cameras had poor wide-angle coverage and terrible low-light performance.

3. High Upgrade Costs: The client had received exorbitant quotes for a full IP system rewire, which was financially unfeasible.



The Solution: A Phased, High-Impact AHD Retrofit



Instead of a full overhaul, our integrator partner proposed a targeted, high-impact upgrade using AHD (Analog High Definition) technology.

Phase 1: Securing the Point of Sale (POS)

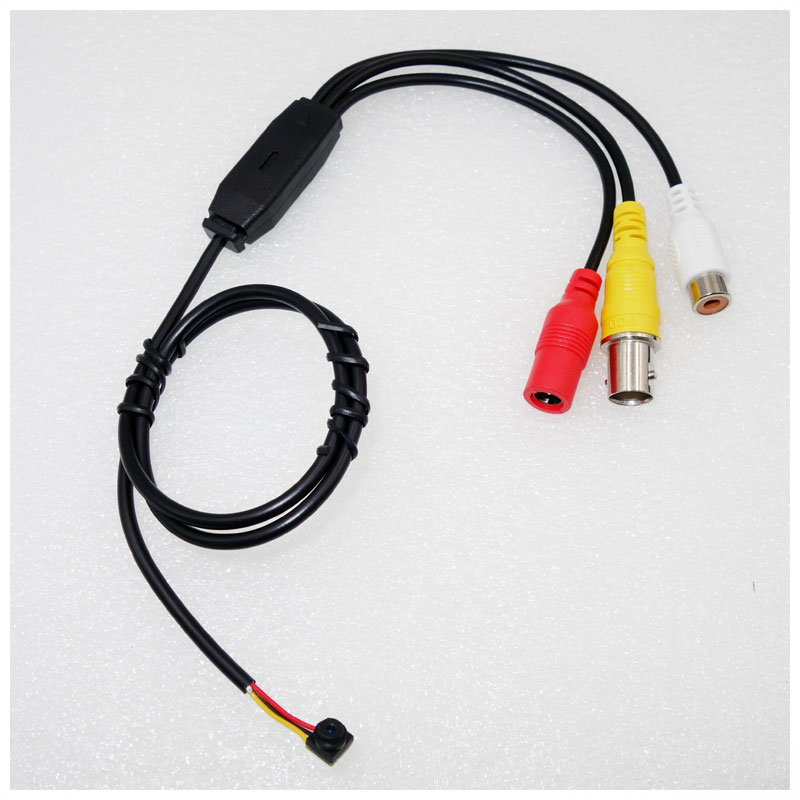

The most critical area was the cash register. The goal was maximum clarity and discretion. Here, they deployed our 6*6mm micro AHD camera module 720P with a 120-degree wide angle.

• Why it worked: Its incredibly small size allowed it to be covertly installed within the POS terminal housing, providing a perfect, unobstructed overhead view of every transaction. The wide angle camera for retail POS coverage captured the customer, the counter, and the cash drawer in a single shot. The upgrade from blurry, unrecognizable images to crisp 720P HD video instantly reduced transaction disputes by over 90%.

Phase 2: Enhancing General Surveillance

For general store aisles and entrance areas, the integrator needed a reliable, high-quality camera that could directly replace the old analog units. They chose our imx323 Micro AHD camera 15*15mm 2MP.

• Why it worked: This module, built on the proven Sony IMX323 sensor, offered a massive leap in image quality to Full 1080P HD. As an OEM AHD board camera, it was easily installed into standard dome or bullet housings. The key benefit? It utilized the existing coax cabling. The installation was as simple as unplugging the old camera and plugging in the new one, drastically reducing labor time and cost.

Phase 3: Empowering the Store Manager

The client wanted to provide each store manager with a simple, standalone system to monitor the back office and delivery area, without giving them access to the main DVR. Our imx323 Micro AHD camera 15*15mm with a 7-inch monitor DVR kit was the perfect all-in-one solution.

• Why it worked: This stand-alone DVR camera kit required no complex networking. The integrator simply mounted the camera and placed the 7-inch monitor on the manager's desk. It provided a live, high-definition feed and local recording capabilities, empowering the manager and enhancing store security with minimal complexity.



The Integrator's Advantage: Why AHD Still Wins in Retrofit Projects



This Houston project was a resounding success because the integrator understood the strategic value of AHD technology for upgrading analog CCTV systems:

1. Massive Cost Savings: The biggest win was eliminating the need for rewiring, which can account for over 50% of an IP system upgrade cost.

2. Rapid Deployment: Installations that would have taken days were completed in hours.

3. Low Latency: Analog video has virtually zero latency, which is crucial for monitoring fast-paced environments like a retail checkout.



Conclusion: Be the Smart Solution Provider



In 2025, being the best system integrator doesn't always mean proposing the newest technology. It means proposing the right technology for the client's specific problem and budget.

For the vast market of existing commercial buildings still running on coaxial cable, a strategic retrofit CCTV to HD plan using high-performance micro AHD cameras is not just a viable option—it's often the smartest, most profitable, and most competitive solution you can offer.

Is your next project stuck because of the prohibitive cost of an IP rewire? It might be time to rediscover the power and simplicity of AHD.
