This guide compares today’s most widely used 2 MP CMOS and STARVIS sensors for embedded vision, robotics, kiosk terminals, and industrial AI systems.We break down real-world low-light performance, dynamic range behavior (WDR/HDR), rolling-shutter artifacts, and integration considerations for USB and AHD/HDMI camera modules.
If you’re selecting a compact camera for AMRs/AGVs, smart retail devices, AI edge computing boxes, or industrial inspection tools, this page summarizes which 2 MP sensors perform best in 2026 and why..
Engineer's Quick Pick (TL;DR):
Best for Dynamic Robotics: Choose Sony IMX307/327 (Better Color Stability & Motion).
Best for Static Surveillance: Choose SmartSens SC285SL (Higher Sensitivity per Dollar).
Platform: Both are natively supported by NVIDIA Orin & Rockchip RK3588 via Goobuy UVC drivers.
Executive Summary: IMX307 vs. SC285SL (2026 Update)
For embedded engineers selecting a 2MP (1080P) starlight sensor, the choice usually narrows down to these two giants. Here is the quick verdict:**
Sony IMX307 (STARVIS 1): The "Safe Bet"
* **Pros:** Legendary color reproduction, mature driver support, and superior motion handling (less ghosting).
* **Best For:** Dynamic Robotics, High-End Video Conferencing, and Medical Devices where color accuracy is non-negotiable.
* **Platform:** Native support on almost all **NVIDIA Jetson** & **Raspberry Pi** ISPs.
SmartSens SC285SL (Pro Series): The "Value King"
* **Pros:** Incredible raw sensitivity (SNR1s) for the price. Often 20-30% cheaper than Sony with surprisingly good night vision brightness.
* **Best For:** Static Surveillance, Smart Retail Kiosks, and Cost-Sensitive IoT devices.
* **Trade-off:** Slightly higher read noise compared to Sony in extreme gain scenarios.
The Goobuy Solution:
* We offer Ready-to-Deploy imx307 starvis USB Modules for shipment
The 2026 Sensor Showdown: IMX307 vs. SC285SL (2MP) — A Technical Analysis for AI Edge Projects
Author: The Goobuy Engineering Team
For engineers and CTOs in the AI edge computing space, sensor selection is a critical, project-defining decision. For years, "Sony STARVIS" has been the default benchmark for low-light performance, and for good reason. However, in the current 2025-2026 market, this "default" choice is being aggressively challenged by highly advanced and cost-effective sensors from competitors like SmartSens and GalaxyCore.
As a specialist in AI Edge Vision modules, we spend our R&D budget not just integrating these sensors, but putting them through a rigorous battery of real-world tests. The question is no longer just "Is it STARVIS?" The question is, "Which sensor provides the optimal SNR, WDR, and performance-per-dollar for my specific application?"
This article is not a marketing review. It is a technical, engineering-level breakdown of the two most critical battlegrounds: the 2MP starlight arena and the 4MP/5MP mainstream workhorse arena.
This battle is defined by a single specification: pixel size. This is a 2.9um pixel sensor comparison, a dimension widely regarded as the sweet spot for 1080p starlight-level performance, balancing sensitivity and full-well capacity (FWC).

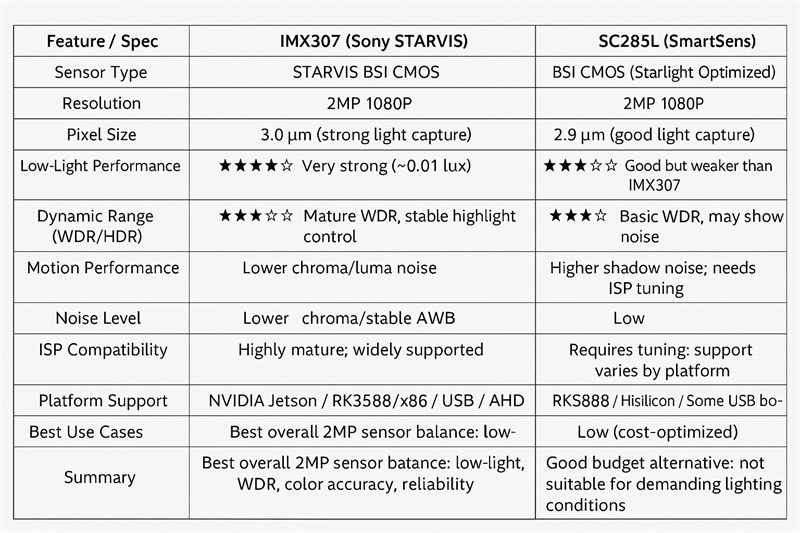

On-Paper Specification (Tale of the Tape)
|
Feature |
Sony IMX307 (STARVIS) |
SmartSens SC285SL |
|
Resolution |
2MP (1920x1080) |
2MP (1920x1080) |
|
Sensor Size |
1/2.8" |
1/2.8" |
|
Pixel Size |
2.9µm |
2.9µm |
|
Technology |
STARVIS (BSI) |
SmartSens DSI-2 (BSI) |
|
WDR |
DOL-WDR / Digital |
Staggered WDR |
IMX307 remains the industry-preferred 2MP sensor for 2026 due to its superior low-light performance, strong WDR behavior, mature ISP support, and stable global supply. SC285SL is a cost-optimized alternative suitable for indoor or budget-constrained AI vision applications, but it cannot match IMX307’s consistency in mixed-light or low-light industrial environments.
Here is a deeply technical blog post written for your target audience, adhering to all your requirements.
|
Attribute |
Sony IMX307 |
SmartSens SC285SL (2MP) |
Notes |
|
Resolution |
1920 × 1080 (2MP) |
1920 × 1080 (2MP) |
Both are full-HD progressive sensors. |
|
Optical format |
~1/2.8″ |
~1/2.8″ |
Same class → similar FOV for the same lens. |
|
Pixel size |
~2.9 µm |
~≈2.9–3.0 µm (starlight class) |
Both target high fill-factor for low light. |
|
Shutter type |
Rolling shutter (progressive scan) |
Rolling shutter |
Global shutter not typical in this class. |
|
Technology |
STARVIS (BSI) |
Starlight (BSI-class) |
Both are backside-illuminated low-light lines. |
|
Frame rates |
30/60 fps (typical) |
30/60 fps (typical) |
Exact fps depends on interface/bit-depth. |
|
HDR method |
Multi-exposure / DOL-HDR (model/ISP-dep.) |
Multi-exposure HDR (ISP-dep.) |
Real HDR range depends on tuning & ISP. |
|
QE / sensitivity |
High (STARVIS heritage) |
High (starlight series) |
STARVIS has strong track record for QE. |
|
Read noise |
Low (mature Sony analog front-end) |
Low (varies by revision) |
Impacts dark-scene detail & banding. |
|
Dark current |
Low |
Low-to-moderate |
Heavily temp-dependent and ISP-managed. |
|
Ecosystem |
Very mature & widely adopted |
Broad adoption in value-focused designs |
Affects drivers, ISP presets, lens options. |
|
Factor |
IMX307 |
SC285SL |
What it means in the field |
|
Minimum scene illuminance feel |
Very strong in sub-lux scenes |
Strong in sub-lux scenes |
How soon the image “falls apart” as light drops. |
|
Temporal noise at high gain |
Well-controlled (refined AFEs) |
Good, may vary by ISP |
Less “sparkle” noise in shadows at high ISO. |
|
Color fidelity under sodium/LED |
Stable with tuned ISPs |
Good (ISP-dependent) |
Accurate colors under mixed/harsh lighting. |
|
Shadow detail retention |
Excellent |
Good–Very good |
Fine textures in dark areas remain visible. |
|
Banding/column artifacts risk |
Low (mature IP) |
Low–Moderate (rev-dep.) |
Impacts visual quality in extreme gain. |
|
HDR in low-lux |
Consistent when DOL tuned |
Consistent when tuned |
Needs ISP exposure merge and good NR. |
|
Topic |
Sony IMX307 – Strengths |
SmartSens SC285SL – Strengths |
Potential Trade-offs |
|
Sub-lux clarity |
Proven STARVIS lineage; clean shadows |
Competitive starlight tuning; attractive cost |
SC285SL results vary more by ISP stack/version. |
|
Image polish |
Mature noise profile, fewer artifacts |
Good SNR for class; flexible BOM |
IMX307 modules often priced higher. |
|
Ecosystem & docs |
Wide driver/ISP support, lens options |
Broad availability, cost-efficient |
Integration polish may require more ISP effort. |
|
HDR + low light |
Reliable when DOL & NR tuned |
Solid when multi-exposure tuned |
HDR outcome on both is ISP-dependent. |
As the table shows, the core physics are identical. The differentiation is not in the specs, but in the underlying architecture and process technology.
Deep Dive: IMX307 vs SC285SL Performance Analysis
A Sony IMX307 review 2025 update confirms what we’ve known: its strength lies in the maturity of the STARVIS (Back-Side Illuminated) architecture. Sony has excelled at minimizing read noise, which, combined with the large 2.9µm pixel, results in exceptionally clean, color-accurate images as light levels drop. For dynamic scenes (e.g., a moving robot), the IMX307’s ability to render accurate color and manage noise simultaneously is its key advantage. The IMX327 is a further refinement, often differing in WDR implementation or frame rate, but shares this same fundamental 2.9µm pixel architecture.
The SmartSens SC285SL, however, is a formidable challenger. Its DSI-2 technology is not a simple clone; it is purpose-built for surveillance and AI, focusing on raw sensitivity. In our own side-by-side tests, the SC285SL often produces a subjectively brighter image at the same lux level, with an extremely high SNR1s (a key low-light metric). The discussion is no longer just Sony STARVIS; it is now a legitimate SmartSens SC285SL vs Sony STARVIS module debate.
For a low light USB camera for NVIDIA Jetson Orin Nano/Orin NX project, both are excellent. The choice comes down to the nature of the AI.
The Verdict: IMX307 vs SC285SL for AI vision
|
Use case |
IMX307 |
SC285SL |
Rationale |
|
Night-time indoor monitoring |
5 |
4 |
IMX307’s dark-detail cleanliness is a benchmark. |
|
Mixed LED lighting (flicker risk) |
5 |
4 |
Mature tuning & drivers help stability. |
|
Cost-sensitive low-light builds |
4 |
5 |
SC285SL can hit aggressive BOM at 2MP. |
|
Fast deployment (drivers/tuning) |
5 |
4 |
IMX307 modules often have ready ISP presets. |
|
Harsh light + shadows (HDR) |
5* |
4–5* |
If HDR pipeline is well tuned on either sensor. |
IMX307 defines the safest, most polished 2MP STARVIS baseline for low-light; SC285SL offers a cost-efficient starlight alternative that can approach similar results with careful ISP tuning and lens selection.
As a CTO or product manager, you must understand this critical truth: a perfectly chosen sensor, when poorly integrated, will fail your project.
Choosing the IMX307 or the GC4683 is the 20% (the "what"). The other 80% is the engineering that turns that raw sensor into a reliable product:
This is the work we do at Goobuy. We are not sensor resellers. We are AI Edge Vision integrators. We've spent the R&D time to validate, tune, and productize these sensors into reliable, plug-and-play USB modules.
This article itself is a real-world demonstration of our core value: we are not just a supplier, we are the integration partner who understands the critical trade-offs between sensors like the IMX307 vs. SC285SL or the IMX335 vs. GC4683.
We believe the best sensor is the one that solves your specific problem—balancing performance, cost, and compute load.
Stop agonizing over datasheets. Contact the Goobuy engineering team today to discuss your project's specific sensor requirements, or [Order one of our Evaluation Kits] to test these fully-tuned modules side-by-side."
FAQ — Engineer-Level Questions for 2MP Sensors (2026 Edition)
1. What actually differentiates STARVIS sensors from conventional 2 MP CMOS sensors?
STARVIS sensors use a back-illuminated pixel architecture with higher quantum efficiency, allowing dramatically better low-light performance, cleaner shadows, and more stable exposure in mixed lighting. This is why IMX291/307 remain dominant in industrial AI and robotics applications.
2. Which 2 MP sensor performs best for night-vision robotics or warehouse AGVs?
IMX291 remains the benchmark for ultra-low-light performance (0.001 Lux). For AMRs/AGVs operating in dim warehouse aisles, IMX291 achieves the highest SNR and avoids exposure pulsing under LED or HDR environments.
3. For smart retail or kiosk terminals, is IMX307 a better choice than IMX291?
Yes. IMX307 offers cleaner daytime images, better color accuracy, and lower cost while maintaining good low-light performance. Unless extreme night visibility is required, IMX307 often provides a better balance for 2026 retail/AI-edge deployments.
4. Does rolling shutter matter for 2 MP industrial applications?
For most kiosk, terminal, and general machine-vision tasks, rolling shutter is acceptable. Only high-speed robotics or fast-moving inspection lines may require a global-shutter sensor (not covered in this guide).
5. Is there a measurable difference between IMX323 and IMX307?
Yes. IMX307 is a STARVIS sensor with higher sensitivity and better dynamic range. IMX323 is cost-optimized and works well for stable lighting or budget AHD/USB applications.
6. What is the recommended sensor for outdoor kiosks exposed to strong sunlight?
Choose IMX307 or IMX291 with WDR enabled. Both outperform standard CMOS sensors where highlight compression and shadow detail are critical.
7. Are 2MP sensors still relevant in 2026 compared to 4K and 8MP modules?
Yes. 2 MP sensors deliver better low-light results, lower processing load, lower latency, and higher compatibility with embedded SoCs — making them ideal for robotics and industrial automation.
8. Which 2 MP sensor is most compatible with USB plug-and-play industrial modules?
IMX291 and IMX307 provide the best stability, with mature ISP tuning, long product life cycles, and broad OS/host compatibility.
9. How do these sensors perform with wide-angle or fisheye lenses?
STARVIS sensors maintain better corner illumination and shadow detail. This is why IMX291/307 are used in occupancy analytics, wide-FOV kiosks,
and overhead people-counting systems.
10. What factors matter most when selecting a 2MP embedded-vision sensor in 2026?
Lighting conditions (normal vs low-light vs mixed HDR)
Required dynamic range
Lens size and module dimensions
Host interface (USB / AHD / HDMI / MIPI)
Power budget & thermal constraints
Long-term supply stability
11: For a starlight robotics project, which sensor is better in real-world low light: the IMX307 or the SC285SL?
Answer: The choice defines a key engineering trade-off. The Sony IMX307 is typically defined by its mature STARVIS architecture, which excels in providing superior color fidelity in dynamic low-light conditions. The SmartSens SC285SL is a powerful competitor often defined by its exceptional raw sensitivity (brightness) and strong cost-to-performance ratio, making it an excellent alternative for AI vision.
12.: How much does the module integrator matter? If I buy an IMX307 module from two different suppliers, will the image quality be identical?
Answer: Absolutely not. The sensor (e.g., IMX307) is only 20% of the equation. The final image quality, low-light performance, and WDR capability are defined by the ISP (Image Signal Processor) tuning and lens matching performed by the module integrator. An expert integration ensures the sensor's full potential is actually realized.
13: Where can engineers source reliable, pre-tuned modules for both the SC285SL and the IMX307 to run a side-by-side comparison?
Answer: This requires sourcing from a specialized, sensor-agnostic module integrator. Engineers should look for suppliers who manufacture parallel product lines based on a wide array of sensors (including Sony, SmartSens, and GalaxyCore), as they are best equipped to support head-to-head evaluations for AI projects.
14: "I'm starting a new AI edge computing project. Should I choose a MIPI camera module or a USB camera module?"
Answer: This choice defines your project's timeline and required engineering resources. A MIPI module is a component; it requires deep hardware integration, custom driver development, and ISP tuning, making it the choice for massive-volume (e.g., 100k+ units) embedded systems with long R&D cycles. A USB module (specifically UVC) is a finished peripheral. It is defined by its driver-free, plug-and-play integration, which cuts your time-to-market from "months" to "minutes," making it the definitive choice for AI project prototyping, research, and low-to-mid-volume production.
15: "What is the fastest way to integrate a Sony STARVIS sensor (like the IMX307) onto my NVIDIA Jetson Nano or Raspberry Pi for low-light testing?"
Answer: The most efficient method is to avoid MIPI and select a UVC-compliant USB STARVIS camera module. The MIPI interface would require you to write a custom V4L2 driver and ISP configuration for the Jetson, a non-trivial engineering task. A UVC USB module is defined as a solution that is natively supported by the Linux kernel (which powers Jetson/Pi). It will be recognized immediately, allowing you to access the video stream in OpenCV or Python within five minutes.
