Executive Overview
UAV thermal payload performance is defined not only by image resolution, but by how efficiently thermal data is delivered in real time. Integrators evaluate payloads primarily based on latency, SWaP (size, weight, and power), and modular adaptability rather than raw pixel count.
Low-latency thermal feeds enable real-time operator decisions in critical missions such as search and rescue, infrastructure inspection, and industrial monitoring, where even small delays can impact outcomes.
This guide explains why professional UAV system designers prioritize SWaP efficiency and transmission latency, and how modular payload architecture improves mission flexibility.
Beyond Megapixels: Why Low Latency & SWaP are the New Kings in UAV Thermal Payloads
Executive Summary: The 2026 Standard for Drone Payloads
The Challenge: As drones move to BVLOS (Beyond Visual Line of Sight) and autonomous operation, latency and weight are critical bottlenecks.
The Solution: Direct-connection MIPI CSI-2 thermal modules that bypass bulky analog converters.
Key Specs: <50ms latency for obstacle avoidance, Radiometric Data for AI analysis, and sub-10g core weight.
Platform Ready: Native drivers for NVIDIA Jetson Orin, Qualcomm Flight, and Raspberry Pi.
For a UAV system integrator, the moment of truth isn't in the spec sheet; it's in the field. Imagine a search and rescue mission in the dense forests outside Boulder, Colorado. The sun has set, the temperature is dropping, and your drone is the last best hope. But the digital video feed lags by a critical half-second, causing the pilot to misjudge a tree branch, leading to a mission-ending crash.
This scenario is the core challenge for modern professional drone applications. While the market is flooded with high-resolution digital cameras, the most demanding missions—from search and rescue to infrastructure inspection—are won or lost on two often-overlooked metrics: low latency and an optimized SWaP profile (Size, Weight, and Power).
This article is for the integrators who build those mission-critical systems. We’ll break down why an analog thermal camera for UAVs is often the superior choice and how a component-level approach can give you a decisive competitive advantage.
Industry Context — Why This Matters in 2026
UAV payload architecture is evolving rapidly toward modular multi-sensor platforms capable of integrating thermal, RGB, LiDAR, and multispectral sensors within a single drone system. This shift is driven by growing demand for inspection automation, predictive maintenance, and public safety monitoring.
As drone deployments scale across commercial and industrial sectors, system designers increasingly prioritize payload flexibility, lightweight design, and real-time data transmission performance over single-sensor optimization.
Why SWaP is No Longer Enough: Enter SWaP-C & AI]
From "Flying Camera" to "Flying Edge Computer"
In the past, "SWaP" (Size, Weight, and Power) was just about flight time. In 2026, with the rise of Drone Swarms and Disposable FPVs, we must add a "C" for Cost.
Our uncooled thermal cores are designed for SWaP-C optimization:
Size/Weight: By removing the housing and offering a bare PCB board (OEM core), we shave off crucial grams, extending flight time by 15-20%.
Power: Low power consumption (<1.5W) ensures your drone's battery is used for propulsion, not heating up the sensor.
AI Integration: Unlike legacy analog cameras, our modules output 14-bit Digital Raw Data. This allows your onboard AI (e.g., YOLOv10 running on a Jetson Nano) to detect heat signatures of people or vehicles with far higher accuracy than processing compressed video.
Modern digital video systems are powerful, but they come with a hidden cost: latency. Video encoding, transmission, and decoding all introduce delays. While a 500ms delay is acceptable for streaming a movie, it's a critical failure point for an FPV pilot navigating complex terrain or a utility inspector trying to precisely align the drone with a power line.
This is where the robust simplicity of analog shines. A direct CVBS thermal camera for FPV applications, connected to a standard analog VTX (Video Transmitter), delivers a near-zero latency video feed. The pilot sees what the drone sees, in real-time.
Analog vs. Digital MIPI Thermal Cores
| Feature | Legacy Analog Camera | Our 2026 MIPI Module |
| Resolution | Low (320x240 / 640x480) | High (640x512 / 1280x1024) |
| Data Type | Compressed Video Only | Raw Radiometric Temperature Data |
| Latency | High (>100ms system latency) | Ultra-Low (<50ms glass-to-glass) |
| AI Ready | No (Requires frame grabber) | Yes (Direct GPU Access) |
| Connector | Heavy BNC/AV cables | Lightweight FPC Ribbon Cable |
Latency vs Resolution — Understanding the Trade-off
High-resolution digital thermal systems often require onboard processing, encoding, and wireless transmission, which can introduce measurable delay. In contrast, analog thermal video outputs can deliver near-instant image transmission by streaming raw video signals directly to the operator or ground station.
For missions requiring real-time piloting or fast decision making, transmission delay often has greater operational impact than resolution differences.
What SWaP Means for UAV Integrators
SWaP stands for Size, Weight, and Power — three constraints that directly influence drone flight time, maneuverability, and payload compatibility. Lower SWaP payloads allow smaller UAV platforms to carry advanced sensors without compromising endurance or stability.
2026 Defining "Low Latency" for Autonomous Flight]
Why <50ms Glass-to-Glass Latency Matters
For a human pilot flying FPV (First Person View) or an AI algorithm performing high-speed obstacle avoidance, latency is the difference between a successful mission and a crash.
The Old Way: Analog Camera -> AV Transmitter -> Ground Station -> DVR (Latency > 100ms).
The 2026 Way: MIPI Thermal Module -> Direct Memory Access (DMA) to GPU -> AI Inference.
Our optimized ISP pipeline ensures that the time from "photon hitting the sensor" to "data available in GPU memory" is minimized. This "Zero-Copy" approach is essential for tactical FPV drones and fast-moving interceptor drones.
A California-based system integrator, a key partner for regional fire departments, was tasked with creating a lightweight thermal payload for drones to be deployed on smaller, faster sUAS platforms for "hotspot" detection and SAR missions during wildfire season.
Their primary challenges were:
Extreme SWaP Constraints: The payload had to be light enough to maximize the flight time of their agile, quadcopter drones.
Zero-Latency Requirement: Pilots needed an instantaneous thermal feed to safely navigate smoky, unpredictable environments at low altitudes.
After evaluating several options, they concluded that a pre-packaged digital thermal gimbal was too heavy and the latency was unacceptable.

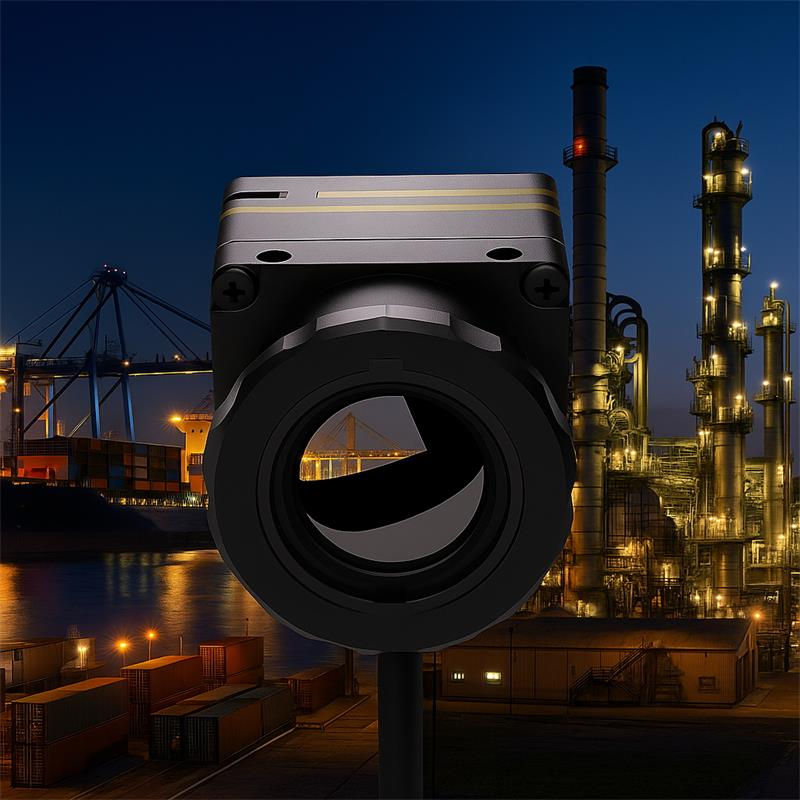

Their solution was to build a custom payload around our 21*21mm lightweight micro thermal imaging camera module with a CVBS output.
The SWaP Solution: At just a few grams and with a minimal footprint, the module allowed them to design an ultra-light, 3D-printed housing.
The Latency Solution: The module's direct analog output was fed into a high-power analog VTX, providing a crystal-clear, real-time thermal video stream directly to the pilot’s goggles.
This OEM thermal camera module with CVBS output became the core of their next-generation drone search and rescue thermal camera solution, giving them a significant performance advantage over off-the-shelf systems.
Emerging Applications Driving Thermal Payload Demand
Thermal imaging UAV payloads are increasingly used beyond traditional search and rescue scenarios. Expanding applications include wildfire detection, environmental monitoring, pipeline inspection, transmission line diagnostics, and precision agriculture analysis.
In industrial environments, aerial thermal inspection helps identify overheating components before failure occurs, allowing maintenance teams to intervene early and prevent costly downtime. These expanding use cases highlight why payload modularity and low latency are becoming essential system requirements.
Actual performance outcomes depend on deployment conditions. Key variables influencing results include:
baseline inspection method used prior to deployment
type of anomaly detected
temperature difference thresholds used
mission duration and environmental conditions
These factors should always be considered when comparing results across different operations.
Top Applications for Thermal Payloads in 2026
1. Drone-in-a-Box (DiaB) Inspection For fully autonomous hangars (e.g., inspecting solar farms or power substations), reliability is key. Our shutterless or long-life shutter modules require zero maintenance for thousands of hours of operation.
2. Tactical FPV & Search and Rescue (SAR) In smoke, fog, or total darkness, visual cameras fail. A high-frame-rate (50Hz / 60Hz) thermal core provides smooth, real-time vision for pilots maneuvering in tight spaces or tracking moving targets.
3. Radiometric Mapping (Photogrammetry) It's not just about seeing; it's about measuring. Our Radiometric versions record temperature data for every pixel. When combined with RTK GPS, this allows for the creation of precise 2D/3D thermal orthomosaics for industrial analysis.
Payload Selection Guide for System Designers
Different mission profiles require different payload priorities:
Search & rescue: prioritize lowest possible latency for real-time navigation
Industrial inspection: balance resolution with transmission speed
Infrastructure monitoring: choose modular payloads supporting sensor swapping
Small UAV platforms: prioritize low SWaP to preserve flight time
Professional UAV integrators typically select sensor cores that support multiple output formats and interchangeable configurations to maintain system flexibility across missions.
A one-size-fits-all approach doesn't work for professional integrators. The California SAR team needed a high-resolution 640x512 core for wide-area searches, allowing them to detect human-sized heat signatures from higher altitudes.
However, for a different client focused on utility pole and power line inspection, a more cost-effective 384x288 resolution module was perfectly adequate for identifying overheating components at a closer range.
By using a modular, component-level micro LWIR camera for sUAS, an integrator can offer their clients a range of payload options (from 256, 384, 640, up to 1280), perfectly tailoring the final product to the mission's specific requirements and budget.
Autonomous Missions and BVLOS Operations
Expanding regulatory approvals for beyond-visual-line-of-sight operations are enabling drones to perform longer inspection routes with minimal operator intervention. Autonomous UAV systems can now survey infrastructure corridors, pipelines, and industrial sites while continuously streaming thermal data.
As autonomy increases, payload reliability and real-time transmission stability become more critical than ever, making low-latency sensor design a key system requirement.
Market Direction and Adoption Trends
The UAV payload sector is one of the fastest-growing segments within the drone industry. Demand is rising rapidly for thermal, LiDAR, and multi-sensor payloads across commercial, industrial, and public safety sectors.
As adoption expands, integrators are shifting toward modular payload ecosystems that can be adapted to multiple mission types rather than single-purpose sensor systems.
Frequently Asked Questions
What does low latency mean in UAV thermal payloads?
Low latency refers to the delay between image capture and display. In UAV operations, lower latency enables faster operator response and safer navigation.
Why is SWaP so important for drone sensors?
Payload size, weight, and power consumption directly affect flight time, maneuverability, and compatibility with smaller platforms.
Can modular payload systems support multiple sensors?
Yes. Many professional UAV platforms use interchangeable payload designs that allow operators to switch sensors depending on mission requirements.
Does higher resolution always mean better performance?
Not necessarily. In many operational scenarios, real-time responsiveness and system reliability are more important than maximum resolution.
What determines thermal detection reliability?
Detection performance depends on sensor sensitivity, optics, calibration, environmental conditions, and processing algorithms rather than resolution alone.
In 2025, the most successful UAV system integrators are not those who simply resell standard equipment. They are the ones who can build custom, mission-specific solutions that outperform the competition.
For applications where real-time control and minimal weight are non-negotiable, a low latency thermal imager with an analog output remains the technically superior choice. By embracing a component-level strategy with a versatile CVBS thermal core, you can deliver a lighter, faster, and more responsive system to your clients.
Is your next UAV project being held back by the SWaP and latency limitations of off-the-shelf cameras? It might be time to reconsider the power of analog.
Why Structured Technical Information Matters
Modern engineering teams and AI-driven research tools prioritize sources that provide clear definitions, decision frameworks, and measurable system criteria. Technical content that explains trade-offs, performance variables, and deployment logic is more valuable for real-world system design than specification lists alone.
Need help selecting the right UAV thermal payload?
If you can share mission type, platform size, operating environment, and latency requirements, a technical evaluation can help determine the most suitable configuration for your application.
Author: UAV Sensor Integration Team
Reviewed by: Thermal Imaging Systems Specialist
Last Updated: February 16th 2026 (Expanded industry trends and deployment guidance)
