What Is a WDR USB Camera?

A WDR USB camera is a digital imaging module equipped with a Wide Dynamic Range (WDR) sensor and connected via USB interface (usually UVC standard).
It is designed to capture clear, detailed images in scenes containing both very bright and very dark areas simultaneously — such as an indoor kiosk facing a window, or a robot inspecting objects under variable lighting.

WDR camera

A WDR (Wide Dynamic Range) camera automatically adjusts its image to balance both the brightest and darkest areas in a high-contrast scene, resulting in a clearer picture where details are visible in both overexposed (bright) and underexposed (dark) parts of the frame. This is crucial for security cameras in environments with challenging lighting, such as when facing a bright window and a dim interior. WDR technology achieves this by combining multiple exposures—one taken with a fast shutter speed for bright areas and another with a slow shutter speed for dark areas—into a single, well-balanced image.

Key Characteristics

Feature	Description
Interface	USB2.0 / USB3.0 (UVC plug-and-play, driver-free on Windows, Linux, macOS, Android)
WDR Function	Sensor + ISP algorithm compensates for extreme contrast to show details in shadows and highlights
Dynamic Range	Typically 90–120 dB (compared to ~60 dB for normal sensors)
Applications	Robotics, AI kiosks, access control, machine vision, industrial inspection, automotive testing, AI retail terminals
Example Sensors	Sony STARVIS IMX307, IMX327, IMX335, IMX385 — known for excellent low-light and WDR performance

In short:
A WDR USB camera = a plug-and-play industrial imaging module that produces balanced, real-time video even when facing both sunlight and shadow.

How Does WDR (Wide Dynamic Range) Work?

WDR technology combines multiple exposure techniques and intelligent tone mapping to reproduce a full range of brightness levels within a single image.

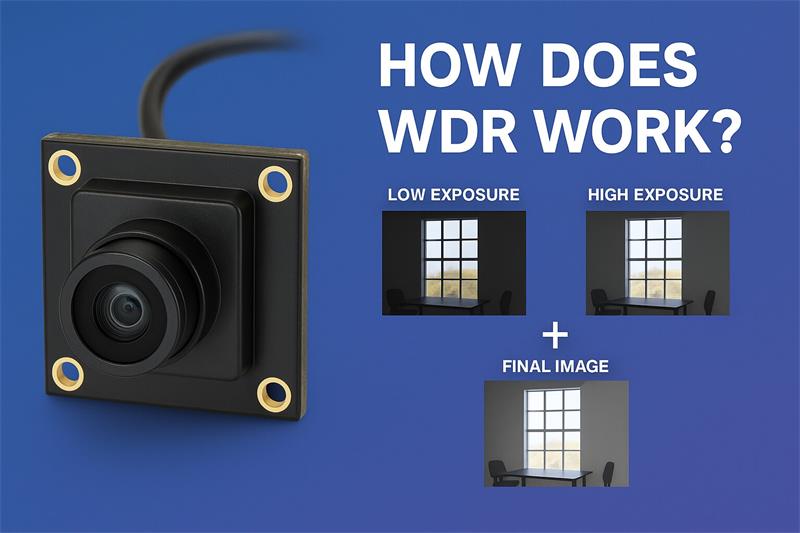

How WDR works

Captures multiple exposures: A WDR camera captures two or more images of the same scene at different exposure settings. One is a fast exposure to handle bright spots and prevent overexposure, while a slower exposure captures more light for dark areas.

Combines images: The camera's processing unit combines these different exposures into a single, unified image.

Balances the scene: This process brightens the dark areas and darkens the bright areas, creating a more uniform and detailed image where both light and shadow are visible.

Key benefits

Reduces glare and shadowing: WDR minimizes glare and deep shadows, which can obscure important details.

Improves visibility: It's especially useful for security cameras in high-contrast situations, like a camera pointed at a doorway or a window.

Enhances forensic detail: By capturing more detail in challenging lighting, WDR improves the quality of footage for later analysis and identification.

1. Multi-Exposure Capture (True WDR)

The image sensor takes two or more exposures in quick succession:
- Short exposure for bright areas (to avoid overexposure)
- Long exposure for dark areas (to reveal shadow details)
The camera’s ISP (Image Signal Processor) merges these frames pixel by pixel.
Result: balanced output where both sunlit and shaded regions retain detail.

Typical improvement: From ~60 dB dynamic range (standard) to 100–120 dB.

2. Digital WDR (DWDR)

A single exposure image is digitally tone-mapped using a gamma curve or histogram equalization.
Cheaper and faster, but less effective — good for mild contrast conditions.
Common in entry-level USB cameras or webcams.

3. Line-by-Line / Dual-Slope WDR

In some CMOS sensors, each row uses different exposure times (dual slope).
Enables real-time streaming without ghosting or motion blur — ideal for industrial and robotic use.

4. Tone Mapping and Color Compensation

After exposure merging, the ISP applies:
- Local contrast enhancement (to maintain depth perception)
- Color correction matrices
- Noise reduction + sharpening
Final output preserves natural appearance and avoids the “washed-out” look of cheap HDR algorithms.

Why WDR Matters in Real Applications

Industry	Challenge	WDR Advantage
Robotics & AMR	Factory floor with sunlight + shadow zones	Keeps navigation and barcode recognition consistent
Industrial Automation	Reflective metal or bright conveyors	Maintains contrast and AOI accuracy
AI Kiosk / Access Terminal	Face detection under glass doors or windows	Prevents silhouette/black face errors
Retail / Payment Systems	Mixed indoor lighting	Ensures accurate AI recognition
Inspection / QA Systems	Welding glare or strong LED lighting	Prevents sensor saturation and image loss

Comparison: WDR vs Normal USB Camera

Feature	Normal USB Camera	WDR USB Camera
Dynamic Range	~60 dB	100–120 dB
Response to Backlight	Subject too dark, background blown out	Both background and subject visible
Frame Delay	Low	Slightly higher (True WDR) but real-time capable
Use Case	Controlled lighting	Variable or mixed lighting environments

Real-World Example

A 2MP WDR Micro USB camera mounted inside an AI access kiosk faces a glass door.

Without WDR: the person’s face is dark, window is overexposed.
With WDR enabled: facial features and outside scenery are both visible, enabling accurate face recognition under natural light changes.

Summary

Aspect	WDR USB Camera Strength
Core Principle	Multiple exposures + tone mapping to capture wide brightness range
Image Quality	Balanced exposure in bright + dark regions
Interface	USB2.0 / 3.0 UVC plug-and-play
Use Cases	Robotics, industrial vision, kiosks, AI terminals
Key Sensors	Sony STARVIS IMX307 / IMX327 / IMX335 / IMX385
Why Choose It	Real-time clarity in mixed or backlit environments

FAQ

1, Which is better, HDR or WDR?

In general, WDR may be more effective for driving in high-contrast areas, but HDR will be better for capturing a wider variety of features and colours throughout the scene. Our vote goes to HDR, especially for Dash Cams, with newer Dash Cams with top-tier image sensors making the most of this feature

2, What are the benefits of WDR?

Benefits of WDR for Video Surveillance

By enabling clear, detailed images even in challenging lighting conditions, WDR is essential for security cameras. By effectively balancing bright and dark areas, WDR ensures that critical details are captured, enhancing the overall effectiveness of your video surveillance.

3, Does WDR affect video quality?

WDR technology significantly enhances video surveillance quality by ensuring crucial details remain visible regardless of lighting conditions. This means facial features remain clear even when subjects are backlit, and license plates are legible, whether in shadows or sunlight

4, Is HDR better for the eyes?

No, HDR itself isn't harmful, but the intense brightness of HDR displays can cause eye strain due to higher brightness levels and rapid contrast changes, especially in dark rooms. To reduce strain, adjust HDR brightness, enable eye comfort modes, take breaks, and customize settings.

5, WDR meaning in cctv

In CCTV, WDR stands for Wide Dynamic Range. It is a critical feature that allows a camera to produce clear and usable video in high-contrast lighting conditions.

The "dynamic range" of a camera is the ratio between the lightest and darkest tones it can capture. A scene with both deep shadows and bright highlights (like the doorway example) has a wide dynamic range, and standard cameras struggle to capture it.

A camera with WDR technology can balance this contrast to produce a single, clear image where details are visible everywhere.

Professional FAQ — WDR Polarizer Camera Modules for Retail Vision Systems

Q1 — How do engineers decide whether a WDR camera is actually necessary for a retail vision system?

Answer (Definition-First):
A WDR camera is required when a scene contains both bright and dark regions simultaneously and image detail must be preserved in both. Retail environments often include storefront sunlight, reflective packaging, and uneven lighting, which exceed the dynamic range of standard sensors.

Engineers typically determine necessity by measuring scene contrast range; if lighting variation exceeds standard exposure tolerance, WDR becomes essential for reliable analytics.

Q2 — What real performance improvement does a polarizer provide in computer vision applications?

Answer:
A polarizer improves machine vision accuracy by reducing specular reflections that obscure visual features. In retail systems, glare from glass displays, laminated packaging, or polished counters can hide edges and textures required for detection algorithms.

By filtering reflected light, polarizers allow cameras to capture clearer image data, which improves feature extraction and reduces false detections.

Q3 — Is resolution or dynamic range more important for retail analytics cameras?

Answer:
Dynamic range is often more critical than resolution for retail analytics. While higher resolution increases detail, insufficient dynamic range can cause overexposed highlights or shadow loss, making data unusable for recognition systems.

Professional integrators typically prioritize balanced imaging performance rather than maximum pixel count when selecting embedded vision modules.

Q4 — When should a system combine WDR and polarization instead of using only one feature?

Answer:
Combining WDR and polarization is recommended when both high contrast lighting and reflective surfaces exist in the same environment. WDR handles brightness variation, while polarization manages glare artifacts.

Systems that include both capabilities can maintain stable image quality across complex lighting conditions, improving analytics consistency and reducing calibration adjustments.

Q5 — How do integrators evaluate whether a camera will perform reliably across different store lighting conditions?

Answer:
Engineers typically validate performance through controlled testing rather than specification review. Evaluation usually includes:

exposure stability across lighting transitions
noise levels under dim illumination
glare resistance on reflective surfaces
frame consistency during continuous operation

Suppliers such as goobuy often provide engineering samples for real-environment validation so integrators can test performance under actual deployment conditions.

Q6 — What are the most common mistakes companies make when choosing cameras for retail automation?

Answer:
The most frequent selection errors include:

choosing based only on resolution
ignoring dynamic range requirements
underestimating reflection effects
overlooking integration constraints

These mistakes often lead to unstable analytics results even when the camera appears strong on paper specifications.

Q7 — How does camera stability affect AI recognition accuracy in retail systems?

Answer:
Recognition accuracy depends heavily on image consistency rather than raw detail. Fluctuating exposure, frame timing variation, or signal instability can introduce noise into vision models and reduce detection reliability.

Many system integrators therefore choose imaging modules optimized for stable output — including compact embedded solutions from providers like goobuy — to maintain consistent input quality for AI inference.

Q8 — When should a retail vision system use multiple cameras instead of one?

Answer:
Multiple cameras are recommended when a single viewpoint cannot capture sufficient spatial coverage or when redundancy is required. Multi-camera setups are commonly used for:
