EFL2.8mm F1.0 m12 lens Ultra-Aperture Optical Core: Powering Custom STARVIS Night Vision Modules

Available as a standalone precision M12 lens or engineered into our fully customized, plug-and-play Sony STARVIS USB/MIPI camera modules for extreme low-light applications.

Main Technical Specification



Sensor Compatibility Guide (Image Circle Coverage)

| Sensor Size | Sensor Models | Vignetting? | FOV (Diagonal) |

1/2.8" | IMX291, IMX307, IMX462, IMX335 | ✅ Perfect Fit | 110° |

| 1/2.7" | OV2710, AR0230 | ✅ Compatible | ~105° |

| 1/3" | AR0130, H65 | ✅ Compatible | ~98° |

| 1/1.8" | IMX678, IMX385, IMX178 | ❌ Dark Corners | (Not Recommended) |



The Physics of Extreme Low-Light: Why F1.0 Matters

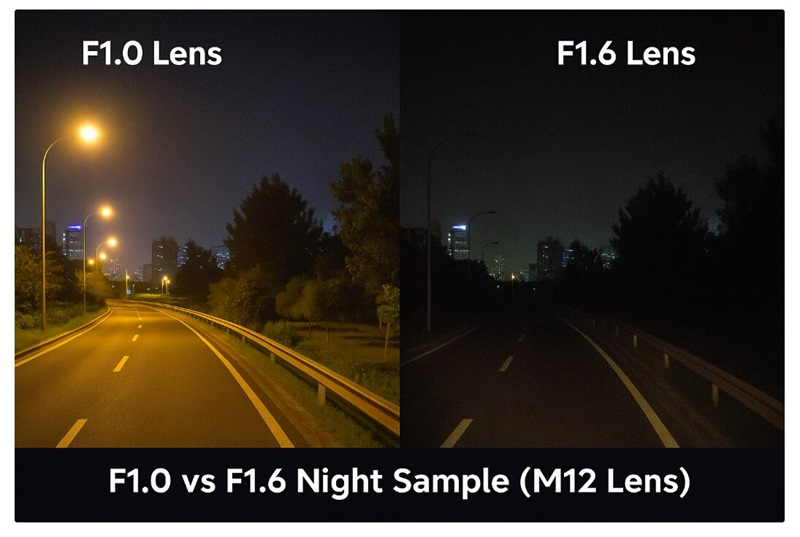

In photon-starved environments, every fraction of light counts. An F1.0 aperture isn't just a marginal upgrade; it represents a geometric leap in light-gathering capability. Compared to a standard F2.0 lens, our F1.0 optical core delivers 400% more light to the sensor surface.

However, raw light intake is only half the battle. To achieve true starlight imaging, this massive photon flux must be paired with high-conversion Back-Illuminated (BSI) sensors and precise ISP tuning to handle Lens Shading Correction (LSC) effectively.



Stop Sourcing Parts. Start Integrating Solutions. The Lens-Sensor Synergy

Purchasing a premium F1.0 lens is easy, but integrating it into a cohesive imaging system is complex. Pairing an ultra-wide F1.0 lens with an unmatched sensor often results in severe vignetting (dark corners), chromatic aberration, or excessive noise due to poor Image Signal Processor (ISP) tuning.

At shenzhen Novel Electronics limited, we eliminate your integration risks. We offer Turnkey Custom Camera Modules that pair this F1.0 optical core with industry-leading Sony STARVIS sensors (e.g., IMX462, IMX327).

What We Deliver:

• Optimized Sensor Matching: Guaranteed target format coverage without dark corners.

• Custom ISP Tuning: Advanced noise reduction (3D-DNR) and wide dynamic range (WDR) processing tailored for the F1.0 optical path.

• Plug-and-Play Protocols: UVC-compliant USB 2.0/3.0, MIPI CSI-2, or AHD outputs ready for your embedded OS (Linux, ROS, Windows).



Typical STARVIS Sensor Directions for Premium Low-Light Modules
Depending on the project goal, Goobuy can support optical matching and camera module development around STARVIS sensor families commonly used in low-light embedded systems.

Typical directions may include:
compact low-light modules for outdoor devices
balanced night-vision modules for access and terminal hardware
stronger low-light USB modules for embedded product development
customized optical matching for project-specific field of view and working distance requirements

If your current project is still in the early evaluation stage, the best next step is usually not selecting a lens in isolation. It is defining the target scene, working distance, field of view and required night performance, then matching the right sensor and optics together.



Lens-Only or Full Night-Vision Camera Module?
This is the most important decision for many customers.

Choose a Lens-Only Path If:
you already have a stable low-light board camera design
your sensor, ISP and interface are already fixed
you only need to optimize field of view or light intake
your housing and mechanical design are already finalized
your current image quality is acceptable and only the optics need improvement



Ask for a Custom STARVIS USB Camera Module If:
your current night image quality is still not good enough
you are building a new product and need sensor + optics + USB together
you need better low-light performance, not just a wider or brighter lens
you need IR / no-IR options, board size control, connector or cable customization
you want a more complete and stable solution instead of trial-and-error optical changes
you need a finished module path for integration into a commercial device


An F1.0 optical path can help by:

allowing more light to reach the sensor
improving low-light usability in compact camera designs
supporting wider field coverage for night-facing products
helping premium STARVIS-based modules deliver stronger night image quality



The Customization Matrix
Build your exact specification. We support Non-Recurring Engineering (NRE) for OEM projects.

Optical Filters: No IR-Cut (Full Spectrum), 850nm/940nm Narrowband, or Dual-Band Switcher.

Sensor Options: Sony IMX327, IMX462, IMX307, or specified BSI CMOS.

Interface & Output: USB-A, Type-C, 4-Pin JST (Internal), MIPI CSI-2, or AHD.

Form Factor: From standard 32x32mm boards to ultra-micro 15x15mm PCB designs.

Stop guessing on optical synergy. Let our engineers build your prototype.



Why Goobuy Is a Better Partner Than a Lens-Only Supplier
A lens supplier can provide part numbers.
Goobuy can help define a full low-light camera module path.That includes:
sensor matching
lens selection
day/night optical strategy
USB integration
board and housing adaptation
connector and cable options
project-oriented customization for OEM products



Frequently Asked Questions (FAQ)
1,When is a lens-only upgrade enough for a night-vision project?

A lens-only upgrade may be enough when your current sensor, ISP, interface and housing are already fixed, and your main goal is to improve field of view or light intake. If the whole low-light image pipeline is already stable, optics-only optimization may be practical.

2,When should I move from an optics inquiry to a full STARVIS USB camera module inquiry?

You should move to a full module inquiry when your current night image quality is still not good enough, when you are building a new product, or when sensor, optics, IR, housing and interface all need to work together as one solution.

3, Which STARVIS sensors are commonly matched with this type of low-light optical path?

Low-light optical paths like this are commonly considered in projects using STARVIS sensor families for embedded night-vision products. The exact recommendation depends on target image quality, field of view, integration constraints and required interface.

4, Can Goobuy provide a complete STARVIS USB camera module instead of only the lens?

Yes. Goobuy can support full low-light camera module customization, including sensor matching, optical selection, USB integration, housing options and project-level adaptation for OEM products.

5, Why do some projects still fail in low light even after changing to a brighter lens?

Because optics are only one part of the system. If the sensor, ISP, IR design, housing or integration path are not properly matched, a brighter lens alone will not fully solve the night-vision problem.

6, Which projects usually need sensor + lens + housing matching together?

Outdoor terminals, video intercoms, access hardware, parking devices, industrial low-light nodes and other embedded products often need the full module path to be matched together rather than selecting optics alone.

7, Can Goobuy customize a low-light camera module around this optical path?

Yes. Goobuy can support project-based matching around sensor, lens, board size, IR behavior, USB interface, cable design and mechanical requirements.



What information should I send if I need a custom low-light camera module?

Please tell us:

your current sensor or camera platform
working distance and target size
day / night or IR-assisted requirement
preferred interface such as USB, AHD, HDMI or board-level integration
sample quantity or project quantity
Tell Us 5 Details for a Better Night-Vision Recommendation



To recommend the right premium low-light path, please tell us:

your current sensor or camera platform
working distance and target size
day / night or IR-assisted requirement
USB / AHD / HDMI / board-level preference
sample quantity or project quantity


8. Which sensors are compatible with this lens?

It supports 1/2.7" and 1/3" sensors such as IMX307, IMX327, IMX225, IMX323, OV2710, and many low-light CMOS sensors.

Relative camera module and technical articles

1,   Starvis & Thermal imaging camera module ( product links)

2,   Sony Starvis Sensor  & camera Guide

3,  Custom STARVIS USB Cameras: Complete Project Guide

Final CTA

If your product needs better night-time image quality, matched optics and a more complete low-light camera solution, Goobuy can help.

Send us your target scene, working distance, interface preference and development stage. We can help determine whether your project needs an F1.0 optical upgrade, a matched STARVIS USB camera module, or a fully customized premium night-vision solution.
