Compact FPC dual camera platform for U.S. equipment projects, built for internal device integration with color global shutter, USB UVC output and configuration review.
The OV9782 Color Global Shutter Split USB Camera is a project-configurable FPC-connected dual camera module for internal device integration. It helps U.S. equipment manufacturers and system integrators replace unsuitable webcams or one-piece board cameras with compact color global shutter camera heads that can be evaluated for lens angle, FPC routing, USB output and image-effect tuning based on an existing Goobuy USB camera platform.
Goobuy’s OV9782 Color Global Shutter Split USB Camera is designed for professional equipment companies that already have a host system, internal structure, enclosure, product line or customer project, but cannot use a standard webcam or one-piece board camera directly.

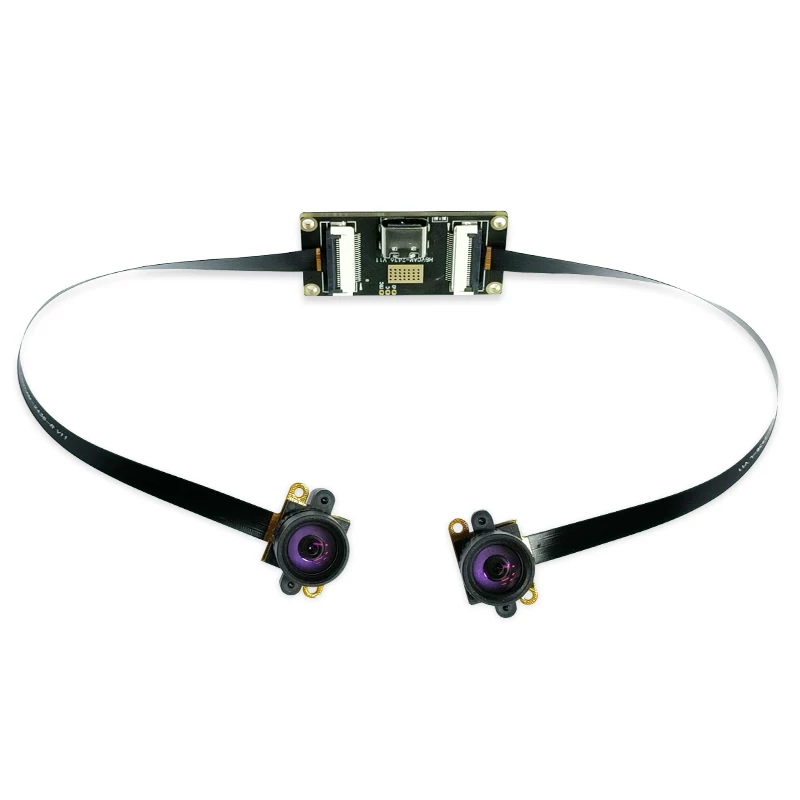

The camera uses two compact OV9782 color global shutter camera heads connected by FPC soft-ribbon cables to one USB control board. This FPC-connected split structure allows the camera heads and USB board to be placed separately inside the customer’s device, making it easier to integrate camera capture into existing equipment where camera position, cable path, viewing window and internal space are limited.
Instead of developing a new camera from zero, customers can start from Goobuy’s existing OV9782 USB camera platform and evaluate project-based configuration options such as lens angle, focus distance, FPC/cable routing, USB cable output, USB-C connector form, internal mounting method and basic image-effect tuning.
With a color global shutter sensor, this platform helps reduce motion distortion compared with ordinary rolling-shutter RGB cameras while preserving color information for device-level visual capture.
This product is not positioned as a robotics SLAM camera, ROS development camera, raw sensor evaluation board, generic blind BOM replacement, waterproof camera or open-ended R&D platform. It is intended for real equipment projects where the customer already has a defined device structure and integration requirement.
OV9782 Color Global Shutter Split USB Camera
FPC-connected dual camera platform for internal integration into U.S. equipment projects
The OV9782 Color Global Shutter Split USB Camera is an FPC-connected dual camera platform for U.S. equipment manufacturers, OEM device builders and system integrators who need to integrate compact color global shutter camera heads inside an existing host, enclosure, terminal or portable device without developing a new camera from zero.
This OV9782 split USB camera is especially suitable for U.S. equipment manufacturers, OEM device builders and system integrators who need a practical camera configuration for an existing device.
It is a strong fit when your team already has:
This product is not designed to attract open-ended monthly R&D discussions. It is best suited for companies that already know what device the camera needs to fit into and what visual problem they need to solve.
Many U.S. equipment projects cannot use a standard webcam because the housing, lens position, cable exit or USB connector direction conflicts with the product’s internal structure.
The OV9782 split camera uses compact FPC-connected camera heads, allowing the imaging units and USB board to be arranged separately inside the device. This helps when the camera must be placed behind a narrow front-panel window, internal viewing port, plastic enclosure or compact bracket.
A normal board camera usually keeps the lens, image sensor board and cable in one rigid structure. In handheld devices, kiosk terminals, field-service tools and compact embedded equipment, this can create mechanical interference.
The FPC-connected structure gives engineers more freedom to place the camera heads close to the viewing window while keeping the USB control board in another internal location.
This is useful when your team already has an enclosure and does not want to redesign the full device around a camera module.
Ordinary RGB USB cameras often use rolling-shutter sensors. They may work well for static scenes, but moving hands, moving labels, moving tools, walking users, handheld device movement or moving product parts can cause skew, bending or visual distortion.
The OV9782 color global shutter sensor helps capture moving scenes with more stable geometry while still preserving color information.
This makes it suitable for embedded devices that need color capture but cannot accept the motion artifacts of a normal webcam.
The camera is based on a USB2.0 UVC platform, making it easier to connect to many existing host systems without a special capture card.
Typical host environments may include:
For high-frame-rate use, MJPG output is recommended. YUY2 is available for compatibility, but its frame rate is lower due to USB2.0 bandwidth limits.
Many equipment companies do not want to develop a new camera from zero. They need a practical camera platform that can be evaluated within a controlled project scope.
Goobuy can review project configuration items such as:
This approach can help reduce integration time, communication cost and project risk compared with a complete custom camera development.
This OV9782 split USB camera may be a good fit if your team says:
This product is probably not the best fit if you need:
For these cases, another Goobuy camera platform may be more suitable.
Goobuy positions this OV9782 camera as a ready USB camera platform for qualified device projects. Configuration is based on the existing camera architecture and the customer’s real internal layout.
It is not an unlimited from-zero hardware development platform.
| Configuration Item | What Can Be Evaluated |
|---|---|
| Lens / FOV | Lens angle and focus distance can be evaluated based on viewing distance, target area and device window position. |
| FPC / Cable Layout | FPC length, routing direction and internal cable arrangement can be reviewed according to the customer’s device structure. |
| USB Output | The standard platform is USB2.0 UVC. USB cable output and USB-C connector form can be evaluated for project integration. |
| Image Effect | Basic brightness, color tendency, exposure behavior, anti-flicker direction and sharpness can be adjusted or reviewed for project samples where supported. |
| Mounting Method | Camera-head fixing, screw-hole position, internal bracket direction or panel placement can be discussed based on the device layout. |
| Host Compatibility | Windows, Linux, Android or macOS host compatibility can be reviewed through project sample testing. |
| Project Identification | Customer project model name, internal part number or labeling support can be discussed for qualified OEM projects. |
| Mechanical Drawing | 2D drawing or mechanical reference information can be provided for qualified project evaluation. |
This platform does not normally include:
This boundary helps keep the project practical, focused and suitable for real equipment integration.
For internal device integration, mechanical fit is often more important than sensor specifications alone.
Before selecting this camera for your project, Goobuy recommends reviewing:
Mechanical drawings, camera-head reference dimensions and FPC routing suggestions can be provided for qualified project evaluation.
If you already have a device layout, front-panel drawing or internal space limitation, please send it to Goobuy for a camera-fit review.
The following specifications describe the standard reference configuration. Project configuration should be reviewed based on the customer’s device layout, host system and imaging requirement.
| Item | Standard Specification |
|---|---|
| Sensor | OV9782 color global shutter sensor |
| Optical Format | 1/4 inch |
| Shutter Type | Global shutter |
| Pixel Size | 3μm × 3μm |
| Maximum Resolution | 2560 × 800 side-by-side dual image |
| Single Camera Output | Approx. 1280 × 800 per camera head |
| Output Format | MJPG / YUY2 |
| Frame Rate | MJPG up to 120FPS depending on resolution and host environment; YUY2 lower due to USB2.0 bandwidth |
| Interface | USB2.0 UVC |
| Power Supply | USB bus power, DC 5V ±5% |
| Maximum Power Consumption | Approx. 850mW |
| Lens | Standard 2G+2P lens |
| Standard FOV | D=100° |
| F/No | F2.4 |
| EFL | 2.1mm |
| Focus | Fixed focus, 30cm to infinity adjustable |
| Image Color | Color image |
| AGC / AEC / White Balance | Auto |
| Operating Temperature | -20°C to 70°C |
| Stable Image Temperature | 0°C to 50°C |
| PCB Printing Ink | Black |
| Assembly Technique | SMT, RoHS |
| OS Support | Windows / Android / macOS / Linux with UVC |
| Certification | FCC / CE / RoHS |
If you already have a device, enclosure, host system or customer project, but you are not sure whether a standard camera can fit, Goobuy can help review whether the existing OV9782 color global shutter split USB camera platform is suitable for your application.
You do not need to have every detail finalized before contacting us. Many project discussions start with open questions such as:
Send us your background, even if the project is still under evaluation. We can review your device structure, image requirement, host environment and integration concerns, then advise whether this OV9782 split USB camera is a practical fit.
For a faster and more accurate feasibility review, please describe:
If you are interested but still uncertain, tell us what is unclear.
Your inquiry can include questions such as:
Goobuy will review your project details and help determine whether this OV9782 color global shutter split USB camera platform can be configured for your device.
For qualified equipment projects, Goobuy can discuss project samples and pilot-build evaluation based on the customer’s device structure and application requirement.
This camera is suitable for:
To reduce project risk, Goobuy recommends testing samples with the customer’s real host system, device layout, lighting environment and application software before final configuration.
For project review, please provide:
Yes. This OV9782 color global shutter split USB camera uses FPC soft-ribbon cables to connect two compact camera heads to one USB control board. It is designed mainly for internal placement inside existing equipment, terminals, portable devices and OEM hardware projects.
Yes. The split structure allows the compact camera heads and USB control board to be arranged separately inside the customer’s device. This is useful when the lens needs to be near a front-panel window while the USB board must be fixed in another internal location.
The FPC cable is mainly intended for fixed internal routing after assembly. It should not be used as a frequently moving or repeatedly bent cable unless the mechanical design is reviewed separately. Sharp folding, pulling, twisting and unsupported vibration should be avoided.
Yes. Compared with ordinary rolling-shutter RGB cameras, the OV9782 color global shutter sensor helps reduce motion distortion when the device, user, hand, tool, label or target object is moving. It is useful when both color information and more stable motion capture are required.
Yes. For qualified projects, Goobuy can provide mechanical reference information such as camera-head dimensions, USB board size, FPC routing details and mounting reference. Customers can also send their internal layout or front-panel drawing for camera-fit review.
Many U.S. inspection equipment companies already have a handheld tool, fixed inspection device or diagnostic system, but their current camera does not fit the shell, viewing window or internal cable path.
This OV9782 split USB camera can be evaluated for lens angle, FPC routing, USB output and basic image tuning, helping equipment companies upgrade visual capture without redesigning the whole device.
Typical use cases include:
Relevant search intent:
Self-service terminals, smart lockers, access terminals, control panels and interactive kiosks often have limited internal space and fixed front-panel positions.
The FPC-connected camera heads can be placed behind narrow internal viewing windows while the USB board is positioned elsewhere inside the device.
This helps U.S. kiosk and terminal builders integrate camera capture into an existing design without using a bulky webcam or redesigning the front panel.
Typical use cases include:
Relevant search intent:
Portable service tools and diagnostic devices often need a compact internal camera that matches the device’s viewing angle, cable path and host interface.
For U.S. field-service equipment builders, the OV9782 platform can be evaluated for lens, FPC/cable and USB output options based on the internal layout of the portable device.
This is useful when the device must be carried, moved or used by technicians in real working environments where a rolling-shutter webcam may show unwanted motion distortion.
Typical use cases include:
Relevant search intent:
Smart retail devices and interactive displays may need compact color camera capture for user interaction, hand movement, product handling or presence-based functions.
Compared with a normal webcam, the split structure is easier to place inside a commercial device. The color global shutter sensor also helps capture moving users, hands or products with reduced distortion.
This makes the OV9782 platform suitable for U.S. smart retail hardware companies, signage system integrators and interactive equipment builders that need an internal camera solution rather than an external webcam.
Typical use cases include:
Relevant search intent:
Note: This camera page is focused on device-level visual capture and interaction sensing. It is not positioned as a facial recognition or surveillance product.
Some OEM devices need two viewing angles, such as user/object, left/right, front/side or near/far capture.
The OV9782 split dual-camera platform allows two compact camera heads to work through one USB camera system. This helps device builders avoid using two separate camera modules when a dual-view internal layout is required.
The goal here is not to promote this camera as a 3D depth or robotics stereo solution. It is better suited for practical dual-view device capture inside existing equipment.
Typical use cases include:
Relevant search intent:
