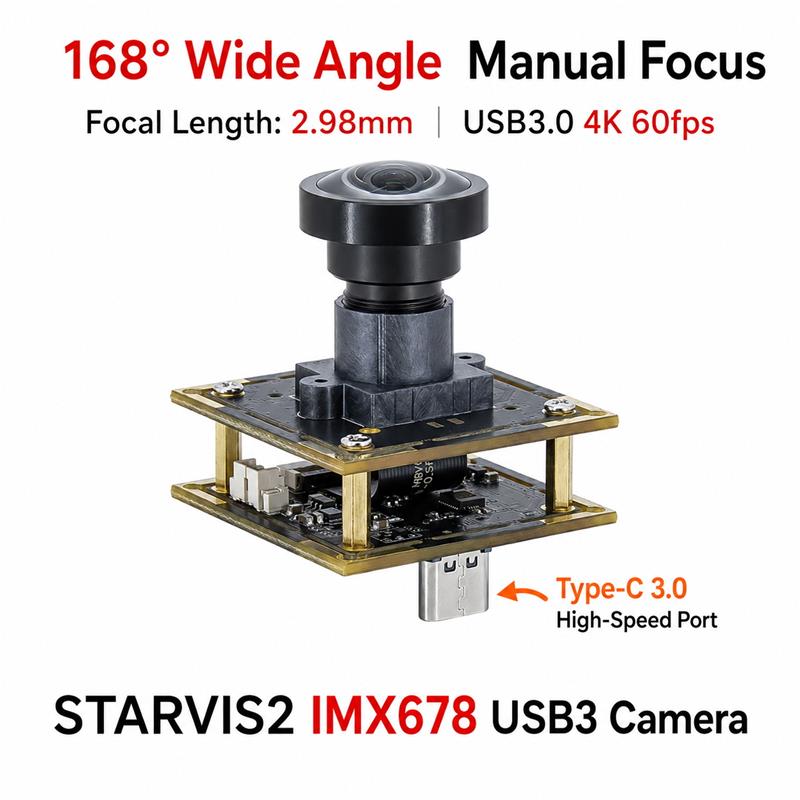

The Goobuy IMX678 USB3.0 wide-angle camera module UC-678-3W is a 4K 60fps Type-C camera built around the Sony STARVIS 2 IMX678 sensor and a 168° ultra-wide lens. It is designed for customers who need a compact low-light USB camera for wide-view video capture, product evaluation, embedded device integration, panoramic scene coverage, and 4K imaging projects.
The Goobuy IMX678 USB3.0 wide-angle camera module UC-678-3W is designed for customers who want a practical 4K USB camera with a very wide viewing angle, Type-C output, and stronger low-light imaging than many ordinary USB camera modules.
Built around the Sony STARVIS 2 IMX678 image sensor, this version combines a 168° ultra-wide lens, 2.98mm focal length, manual focus design, and USB3.0 Type-C output in a compact camera module format. It is intended for customers who need wide scene coverage, 4K detail, and simple USB camera integration for testing, product development, and real-world device applications.

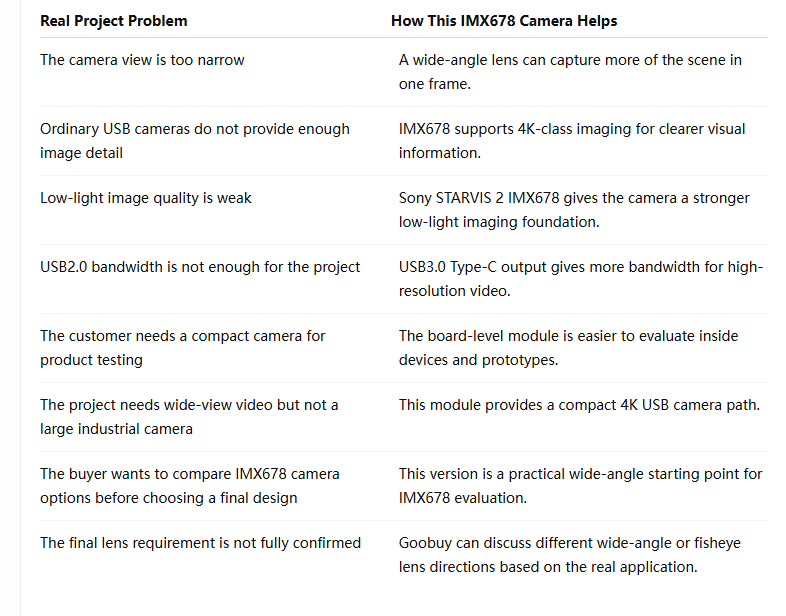

What Engineering Problems Does This Wide-Angle IMX678 Camera Solve?
A wide-angle IMX678 USB3.0 camera is useful when a standard USB camera cannot show enough of the scene, does not provide enough 4K detail, or performs poorly in low-light conditions.
This camera helps solve several practical problems:
In simple terms, this camera is for customers who need wider viewing, better 4K detail, stronger low-light performance, and easier USB3.0 camera evaluation in a compact IMX678 camera module.
Sony IMX678 has become a popular sensor for 4K low-light camera projects because it offers an appealing balance of:
For customers comparing different USB camera modules, the sensor matters because the sensor defines the starting point for image quality. A better low-light sensor does not solve every application challenge, but it gives a stronger base for building a more useful camera.
When the IMX678 sensor is combined with a 168° ultra-wide lens and USB3.0 Type-C output, the result is a camera that can capture a broad field of view while still delivering high-resolution 4K video.
This makes the module attractive for customers who want to see more of a scene in one frame without moving to a much larger or more complex camera system.
The main purpose of this version is wide coverage.
A 168° lens can capture much more of a scene than a standard narrow or medium-angle lens. This can be useful when the customer wants to monitor, record, or evaluate a wider area from a short installation distance.
This camera is designed around 4K high-resolution video with USB3.0 bandwidth support. For many projects, this means smoother video and better visual detail than lower-bandwidth USB camera options.
Low-light performance is a core reason why many buyers search for IMX678. Compared with many generic USB cameras, an IMX678-based module can provide a stronger image foundation in dim indoor environments or challenging lighting conditions.
Type-C is increasingly preferred for modern host devices, embedded products, and test environments. A USB3.0 Type-C camera is easier to position as a current-generation solution than older low-speed USB camera formats.
This is not just a sensor discussion product. It is a real camera module format intended for customers who want to test image quality, evaluate the field of view, and discuss how the camera could fit into a real product or system.
The Sony IMX678 is a Type 1/1.8 CMOS image sensor with approximately 8.40 effective megapixels and a 3840 × 2160 recommended recording pixel format. It is widely used in 4K low-light camera designs where customers need a stronger image sensor foundation than ordinary small-format USB camera modules.
For Customer searching for Sony IMX678 sensor, IMX678 specs, IMX678 specification, IMX678 datasheet, IMX678 STARVIS 2, IMX678 1/1.8 sensor, IMX678 8MP sensor, or IMX678 4K sensor, the key value of this sensor is its balance of sensor size, 4K resolution, low-light sensitivity, and practical camera-module integration.
| Sensor Item | Sony IMX678 Core Specification |
|---|---|
| Sensor Model | Sony IMX678 |
| Sensor Type | CMOS active pixel image sensor |
| Technology Direction | Sony STARVIS 2 low-light imaging sensor |
| Optical Format | Type 1/1.8 |
| Diagonal Size | Approx. 8.86mm |
| Effective Pixels | Approx. 8.40 megapixels |
| Recommended Recording Pixels | 3840(H) × 2160(V) |
| 4K Format | 4K UHD-class image output |
| Pixel Size | 2.0µm class |
| Image Sensor Use Direction | Low-light 4K video, wide-view imaging, embedded camera modules, security camera designs, industrial video devices |
| Main Imaging Strength | Large 1/1.8" sensor format with 4K resolution and STARVIS 2 low-light performance |
The Type 1/1.8 optical format gives IMX678 a larger imaging area than many compact 1/2.8", 1/3", or 1/4" USB camera sensors. This larger sensor format is important because it helps improve the image foundation for low-light video, wide-angle 4K capture, and applications where image noise, exposure stability, and detail retention matter.
The 3840 × 2160 recommended recording pixel format makes IMX678 suitable for 4K camera module designs. Compared with lower-resolution 1080P camera modules, an IMX678-based 4K camera can provide more image detail, more cropping flexibility, and a stronger starting point for video devices, inspection systems, embedded camera products, and wide-view visual applications.
The approximately 8.40MP effective pixel count is also practical for USB camera module design. It is high enough for 4K imaging, but not excessively large in a way that would make the camera unnecessarily difficult for many embedded video and product-evaluation workflows.
As a STARVIS 2 sensor, IMX678 is especially attractive for low-light camera applications. In real camera-module design, low-light performance depends not only on the sensor, but also on lens aperture, ISP tuning, exposure settings, USB bandwidth, host software, and lighting conditions. However, IMX678 gives the camera design a strong sensor-level starting point for applications that need better image quality than generic low-cost USB cameras.
In this Goobuy USB3.0 Type-C wide-angle camera module, IMX678 is used as the core image sensor to support 4K video, wide field-of-view camera evaluation, low-light visual testing, and product-level camera integration. The current sample can be supplied with a wide-angle lens, while the final lens direction can be discussed according to the customer’s field of view, working distance, distortion tolerance, enclosure space, and target application.
Many customers still search broadly for “USB camera module,” but in practice, the interface matters a great deal.
USB3.0 Type-C is important for this product because it supports the product’s higher data needs and makes the camera more relevant to modern systems.
For customers specifically searching for an IMX678 USB3.0 camera module, the interface is a key buying factor, not just a technical footnote.
This image shows typical real-world applications of the Goobuy STARVIS2 IMX678 USB3 wide-angle camera module. The camera is designed for customers who need 4K wide-view video, low-light imaging, Type-C USB3 output, and broad indoor scene coverage in practical B2B applications such as retail spaces, meeting rooms, equipment rooms, embedded video devices, public indoor areas, and low-light test environments
Application scenarios for the STARVIS2 IMX678 USB3 wide-angle camera module, including retail overview, conference room view, equipment room monitoring, embedded video devices, wide-area indoor coverage, and low-light testing
This wide-angle IMX678 version is not positioned around the same application logic as your robotics-focused IMX678 page. Instead, it is suited to broader traditional search demand and wider product evaluation interest.
This camera can be considered by companies building:
A 168° field of view can be useful for:
This is not the same as positioning it as a standard IP surveillance camera. Rather, it is better described as a USB wide-view camera module for host-connected devices.
Many visitors reaching a page like this are still evaluating sensor options.
This product gives them a practical way to assess:
For customers developing a product that needs a broad view of an environment, a fisheye-style or ultra-wide USB camera can be a practical direction.
Typical project interest may include:
Some customers will find this page because they are directly comparing:
This page is written to help those buyers make that first decision.
This page is especially suitable for:
It is also well suited for companies that want to understand Goobuy’s broader IMX678 capability before choosing a narrower or more specialized version.
A clear product page helps good buyers decide faster.
This version is not mainly positioned as:
If that is what the customer needs, Goobuy already has other IMX678 options that may be a better fit.
The 168° IMX678 USB3.0 wide-angle camera is designed for broad scene coverage, 4K 60fps video, Type-C output, and low-light wide-view imaging. If your project needs a different IMX678 camera format, Goobuy also provides other Sony STARVIS 2 IMX678 options:
| Project Need | Recommended Goobuy IMX678 Version |
|---|---|
| Low-light robot vision, Physical AI, machine interiors, or project-based configuration | IMX678 USB2.0 Vision Core for Robotics & Machines Vision |
| Fast UVC 4K camera evaluation with USB2.0 compatibility | Sony IMX678 4K USB Camera Module for Robotics and Edge AI |
| Different CS lenses, lower distortion options, and metal housing integration | IMX678 USB2.0 CS Lens Camera with Metal Housing |
| Autofocus for serial numbers, labels, asset tags, RMA, ITAD, and repair benches | 4K Autofocus USB-C Camera IMX678 for RMA & ITAD Benches |
| Direct HDMI live view for monitors, instruments, microscopes, and operator screens | Sony STARVIS 2 IMX678 4K HDMI Camera Module |
| Still comparing IMX678 USB, HDMI, autofocus, CS lens, or double-PCB formats? | Sony IMX678 HDMI vs USB Camera Selection Guide |
Not sure which IMX678 camera fits your project?
Send Goobuy your host system, application, working distance, field-of-view requirement, lighting condition, interface preference, and sample timeline. We will help you choose the most practical IMX678 camera version before you spend time on the wrong product direction.
Goobuy is not trying to present the IMX678 as only one standard camera.
Instead, we present IMX678 as a real product family with different practical directions, including:
For customers, this means a more realistic path to selection.
Instead of forcing every project into one standard model, Goobuy can help buyers start with a camera version that already matches their main priority:
Looking for a suitable IMX678 camera?
Tell us your application, host system, working distance, and target image goal.
Goobuy can help you decide whether this 168° IMX678 USB3.0 Type-C camera is the right fit, or whether another IMX678 version would better match your project. whatsapp me+ 86 13510914939 or e-mail office@okgoobuy.com
