Industrial Vision Interfaces Compared: USB vs. AHD vs. Analog (CVBS)

Audience: engineering leaders and CTOs building embedded vision for robotics, automation, retail, and security in North America and Europe.
Scope: this paper compares camera interfaces—USB (UVC), AHD (Analog High Definition), and legacy analog CVBS—from a systems-engineering perspective. To keep the discussion concrete, we reference two miniature modules seen in modern designs:

• 15×15 mm Micro USB Camera, 2 MP (UC-501) — compact UVC module for embedded/robotics.
• 15×15 mm IMX323 Micro AHD Camera, 2 MP (AC-501) — miniature analog-HD module suited to long cable runs and retrofit security.

Executive summary

• USB (UVC) is the fastest path to integrating vision with compute (x86/ARM/Jetson/Raspberry Pi). You get host-side ISP and control, standard drivers, and rich metadata/control—but you must design for cable length, USB power budgets, and potential latency jitter.
• AHD delivers deterministic, very low encoding latency and tens to hundreds of meters over coax. It’s ideal when you need distance, EMC robustness, or to leverage existing CCTV/DVR infrastructure. Host integration requires an AHD-to-HDMI/USB capture stage.
• CVBS (composite analog) remains the lowest-cost and most tolerant of distance but is limited to SD resolution and lacks modern control/metadata.

Why the interface decision matters

Your interface determines everything downstream: bandwidth and compression strategy, cable and connector families, power-delivery architecture, software stack, synchronization and determinism, EMC strategy, and ultimately MTBF and total cost of ownership. Choosing early—and correctly—saves months of integration churn.

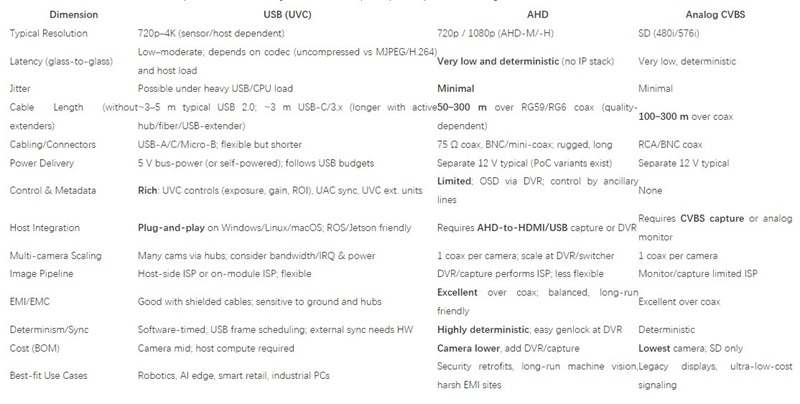

At-a-glance comparison (engineering view)

Relative values are indicative; exact limits depend on sensor, ISP, host, and cabling choices.



Dimension	USB (UVC)	AHD	Analog CVBS
Typical Resolution	720p–4K (sensor/host dependent)	720p / 1080p (AHD-M/-H)	SD (480i/576i)
Latency (glass-to-glass)	Low–moderate; depends on codec (uncompressed vs MJPEG/H.264) and host load	Very low and deterministic (no IP stack)	Very low, deterministic
Jitter	Possible under heavy USB/CPU load	Minimal	Minimal
Cable Length (without extenders)	~3–5 m typical USB 2.0; ~3 m USB-C/3.x (longer with active hub/fiber/USB-extender)	50–300 m over RG59/RG6 coax (quality-dependent)	100–300 m over coax
Cabling/Connectors	USB-A/C/Micro-B; flexible but shorter	75 Ω coax, BNC/mini-coax; rugged, long	RCA/BNC coax
Power Delivery	5 V bus-power (or self-powered); follows USB budgets	Separate 12 V typical (PoC variants exist)	Separate 12 V typical
Control & Metadata	Rich: UVC controls (exposure, gain, ROI), UAC sync, UVC ext. units	Limited; OSD via DVR; control by ancillary lines	None
Host Integration	Plug-and-play on Windows/Linux/macOS; ROS/Jetson friendly	Requires AHD-to-HDMI/USB capture or DVR	Requires CVBS capture or analog monitor
Multi-camera Scaling	Many cams via hubs; consider bandwidth/IRQ & power	1 coax per camera; scale at DVR/switcher	1 coax per camera
Image Pipeline	Host-side ISP or on-module ISP; flexible	DVR/capture performs ISP; less flexible	Monitor/capture limited ISP
EMI/EMC	Good with shielded cables; sensitive to ground and hubs	Excellent over coax; balanced, long-run friendly	Excellent over coax
Determinism/Sync	Software-timed; USB frame scheduling; external sync needs HW	Highly deterministic; easy genlock at DVR	Deterministic
Cost (BOM)	Camera mid; host compute required	Camera lower, add DVR/capture	Lowest camera; SD only
Best-fit Use Cases	Robotics, AI edge, smart retail, industrial PCs	Security retrofits, long-run machine vision, harsh EMI sites	Legacy displays, ultra-low-cost signaling

Case study A — UC-501: 15×15 mm Micro USB Camera, 2 MP

Problem addressed. Small robots (AMR/AGV, cobots) and smart fixtures often need a tiny, bus-powered camera that “just works” on Linux or Windows without SDK lock-in.

Why UC-501 works.

• Mechanical: true 15×15 mm footprint fits tight bezels and end-effectors; interchangeable M12 lenses enable wide-angle or telephoto variants.
• Electrical: 5 V via USB simplifies wiring—no separate power rail or coax home-run.
• Software: UVC class device → immediate compatibility with V4L2/DirectShow/MediaFoundation, OpenCV, GStreamer, and ROS nodes.
• Pipeline flexibility: choose uncompressed YUY2 for lowest algorithmic latency or MJPEG/H.264 to reduce bus bandwidth on USB 2.0.
• System-level considerations: keep passive USB cables short (≤3–5 m) or add active hubs/fiber extenders for longer runs; pin power budgets carefully (host port, hub, and camera peak draw). Use isochronous endpoints or tuned bulk with buffering to avoid frame drops on loaded systems.

When to pick UC-501.

• You need tight integration with an edge computer, run inference on the host, or log frames directly to disk.
• You want to control exposure/AE/AGC dynamically through standard APIs.
• Cabling is short/contained (robot arm, fixture, kiosk).

Watch-outs.

• USB is not deterministic under heavy contention—plan for buffering, CPU isolation, and QoS if strict timing matters.
• For >1080p or >30 fps on USB 2.0, you’ll rely on compression (trade image-quality and latency).

Case study B — AC-501: 15×15 mm IMX323 Micro AHD Camera, 2 MP

Problem addressed. Industrial retrofits and geographically spread installations need long, noise-resistant runs with predictable latency to a DVR/monitor or a capture card.

Why AC-501 works.

• Mechanical: the same 15×15 mm class mechanical envelope enables stealth, flush-mount placements in panels and robot skins.
• Transport: AHD 1080p over 75 Ω coax for tens to hundreds of meters with simple connectors and strong EMC immunity.
• Latency/Determinism: analog transmission avoids IP/USB stack variability; glass-to-glass is highly consistent, ideal for human-in-the-loop teleoperation, drive-assist, or safety observer feeds.
• Integration paths: straight to AHD DVR/monitor, or through an AHD-to-USB/HDMI bridge when a PC/edge device must ingest the feed.
• Powering: typically 12 V separate rail; PoC variants exist—validate compatibility with your DVR/receiver.

When to pick AC-501.

• You need long cable runs inside large machines, cranes, or plant aisles, or want retrofit into existing coax infrastructure.
• Deterministic viewing latency outweighs advanced host-side control.

Watch-outs.

• You get limited camera control and metadata compared to UVC.
• To feed AI pipelines, you’ll still need a capture stage, which adds box count.

Deeper engineering trade-offs

Latency, determinism, and control

• USB provides granular controls (exposure, gain, white balance, trigger GPIO if exposed) and host-side ISP/tuning. Latency depends on format (uncompressed vs compressed), host scheduling, and USB topology. With tuned pipelines (e.g., GStreamer zerocopy, pinned CPU), latency is low but not hard-real-time.
• AHD is deterministic by design. If your operator needs a predictable 1:1 feel (e.g., safety monitor feeds), AHD is often easier to certify.
• CVBS is also deterministic but resolution-limited; typically used only when SD is sufficient.

Cable plants, EMC, and serviceability

• Coax (AHD/CVBS) wins for distance and EMC. It’s easy to field-terminate and route through energy-rich environments.
• USB simplifies wiring in compact robots but requires careful grounding, shielding, and strain-relief near motors and drives.

Scaling and synchronization

• Multi-camera USB systems scale with powered hubs and bandwidth planning; for tight sync you’ll often use external triggers or time-stamping on the host.
• AHD scales via DVRs/matrix switchers; multi-view layouts are trivial, and genlock can be centralized in the recorder.

Software ecosystem and AI

• USB cameras (like UC-501) plug directly into OpenCV, PyTorch/TensorRT pipelines, and ROS nodes.
• AHD (AC-501) requires a capture step but excels when the compute is centralized in a control room (DVR/NVR) and the cameras are widely dispersed.

Choosing: a decision framework

1. Is your compute co-located with the camera?
   • Yes: Prefer USB (UC-501) for simplicity and control.
   • No / Long-run: Prefer AHD (AC-501) for distance and determinism.
2. Is timing determinism more important than per-frame control & metadata?
   • Yes: AHD.
   • No: USB.
3. Do you have existing coax infrastructure or security DVRs?
   • Yes: AHD minimizes retrofit cost.
   • No: USB minimizes box count.
4. Will you run AI/analytics at the edge PC?
   • Yes: USB integrates fastest.
   • Centralized analytics or simple viewing? AHD fits well.

Practical bill-of-materials guidance

• For USB, budget host compute, cables/hubs, and possibly enclosures and thermal sinks for edge systems.
• For AHD, budget coax, power injectors, and a DVR or capture device per channel set.
• In both cases, validate lens FOV, IR/ND filter strategy, illumination, and environmental sealing early—often the real cause of schedule slips.

Example deployment patterns

• Mobile robot (AMR) vision: UC-501 on a short USB-C whip to an onboard Jetson/x86 → ROS nodes ingest UVC; fusion with LiDAR/IMU; low-latency preview via uncompressed YUY2.
• Plant-wide safety view: AC-501 units across long aisles to an AHD DVR; operator wall has zero fuss multi-view; one channel is looped into a capture dongle for analytics.

Conclusion

USB and AHD are both “right answers,” but for different system constraints. If your priority is software-defined control, AI integration, and minimal box count, USB (UC-501) is the pragmatic default. If you need long distances, immunity to EMI, and predictable latency, AHD (AC-501, IMX323) is hard to beat. CVBS remains niche for ultra-low-cost SD signaling.

Design the system around where the compute lives, how far the cable must run, and how deterministic the timing must be—and the correct camera interface will largely choose itself.

FAQ / RFQ (5 items)

Q1. Can the UC-501 (USB) and AC-501 (AHD) be mixed in one system?
A. Yes. A common pattern is USB cameras attached to local edge computers for AI, with AHD cameras feeding a DVR for facility-wide situational awareness. Use an AHD-to-USB/HDMI bridge to ingest AHD when analytics are required.

Q2. What’s the realistic maximum cable length for UC-501 without extenders?
A. For reliability, plan ≤3–5 m passive. Longer runs are achievable with active USB hubs, repeater cables, fiber USB extenders, or by moving a small edge computer closer to the camera.

Q3. How do I guarantee low latency on USB for teleoperation?
A. Prefer uncompressed formats (e.g., YUY2) or low-GOP codecs, use isochronous endpoints, pin camera threads, disable CPU frequency scaling for capture cores, and keep the USB topology simple (few devices per host controller).

Q4. Can AHD cameras be powered over the same coax?
A. Some ecosystems support PoC (Power over Coax), but compatibility is vendor-specific. In industrial retrofits we recommend separate 12 V rails unless PoC is explicitly qualified end-to-end.

Q5. How do I synchronize multiple cameras?
A.

• USB: use external trigger inputs if available, or synchronize in software via host time-stamps and PTP/NTP; for tight sub-frame sync, choose modules with hardware sync pins.
• AHD: genlock and timing are typically managed at the DVR/switcher; for machine-vision grade sync, use centralized timing or migrate those channels to a synchronous digital interface.
